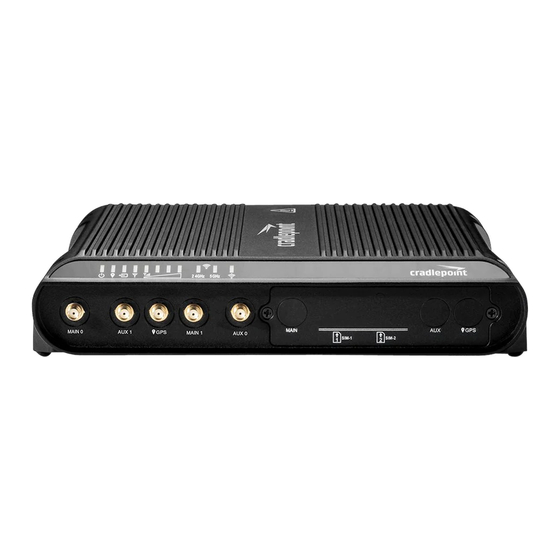

Cradlepoint IBR1700 Quick Start Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
3/27/24, 2:30 PM
Home (/s/)
IBR1700 Mobile Router Quick Start Guide
Oct 18, 2022
Knowledge
•
Content
IBR1700 Mobile Router Quick Start Guide
Introduction
This guide provides instructions for the basic set up of your COR IBR1700 mobile router as well as discusses what's inside the box and optional accessories
to enhance the router's functionality. For instructions on installing the router in your vehicle, refer to the Vehicle Installation Guide for COR Series Mobile
Routers (https://customer.cradlepoint.com/s/article/Vehicle-Installation-Guide-for-COR-Series-Mobile-Routers).
Navigation
What's in the Box
Hardware
Accessories
Required
Optional
Before You Begin
Location Considerations
SIM Card for Wireless Connectivity
Best Practice: Choosing SIMs for Adverse Environments
Setup
STEP 1: Insert an activated 2FF-sized SIM into the router.
STEP 2: If using a MC400 modular modem, insert activated 2FF-sized SIM card(s) into the modem.
STEP 3: Set up the Antenna and WiFi Configuration.
STEP 4: Connect the power source.
STEP 5: Activate the device through NetCloud Manager.
Understanding LEDs
Connecting to NetCloud
COR IBR1700 Mobile Router Models
Troubleshooting
Resources
Help and Support
Terms of Service
https://customer.cradlepoint.com/s/article/IBR1700-Getting-Started
TECHNICAL SUPPORT (/s/contactsupport)
Search Technical Documentation
IBR1700 Mobile Router Quick Start Guide
Caption
TRAINING (/s/cpu)
FORUMS (/s/forums)
DEVELOPERS (/s/developers)
1/8

Advertisement

loading
Need help?

Need help?

Do you have a question about the IBR1700 and is the answer not in the manual?

Questions and answers

Related Manuals for Cradlepoint IBR1700

Summary of Contents for Cradlepoint IBR1700

  • Page 1 Introduction This guide provides instructions for the basic set up of your COR IBR1700 mobile router as well as discusses what's inside the box and optional accessories to enhance the router's functionality. For instructions on installing the router in your vehicle, refer to the Vehicle Installation Guide for COR Series Mobile Routers (https://customer.cradlepoint.com/s/article/Vehicle-Installation-Guide-for-COR-Series-Mobile-Routers).

  • Page 2: What's In The Box

    3/27/24, 2:30 PM IBR1700 Mobile Router Quick Start Guide What's in the Box IBR1700 high-performance, hardened metal router with embedded, business-class 3G/4G modem; includes integrated mounting plate DC GPIO/power cable Safety, Regulatory, and Warranty guide Hardware https://customer.cradlepoint.com/s/article/IBR1700-Getting-Started...
  • Page 3 IBR1700 Mobile Router Quick Start Guide Accessories The IBR1700 series mobile routers are designed for installation in vehicles and therefore require additional accessories for optimal performance. For antennas, refer to the Cradlepoint Approved Antennas information on the Cradlepoint Antennas (https://cradlepoint.com/products/antennas/) webpage.

  • Page 4: Before You Begin

    Read through the following before you set up your Cradlepoint COR IBR1700 router(s). Location Considerations The IBR1700 series routers are built for installation in vehicles of all varieties. Refer to the Vehicle Installation Guide for COR Series Mobile Routers (https://customer.cradlepoint.com/s/article/Vehicle-Installation-Guide-for-COR-Series-Mobile-Routers)for more information.
  • Page 5 STEP 3: Set up the Antenna and WiFi Configuration. The IBR1700 includes three (3) independent WiFi radios, allowing for a much more customizable and robust experience when using WiFi. For more information on configuring and using the IBR1700's WiFi, please view this article: NCOS: 6.5 IBR1700 WiFi Radio Setup (https://customer.cradlepoint.com/s/article/NCOS-6-5-IBR1700-WiFi-Radio-Setup?r=110&ui-knowledge-components-aura-...

  • Page 6: Understanding Leds

    Refer to the Connecting to NetCloud section of this document. Understanding LEDs INDICATOR BEHAVIOR POWER: The Cradlepoint IBR1700 must be powered using an approved 9–36 V DC power source. Green = Powered ON Yellow = Attention is required No Light = Not receiving power. Check the power source connection GPS: Indicates the status of GPS connection.

  • Page 7: Troubleshooting

    3/27/24, 2:30 PM IBR1700 Mobile Router Quick Start Guide INDICATOR BEHAVIOR MC400 MODEM: Indicates information about the optional MC400 modem. Green = Modem has established an active connection Blinking Green = Modem is connecting Amber = Modem is not active Blinking Amber = Data connection error.

  • Page 8: Help And Support

    Contact Us (https://cradlepoint.com/about-us/contact-us/) Terms of Service Terms of Service &License Agreement (https://cradlepoint.com/about-us/terms-of-service/) Privacy Policy (https://cradlepoint.com/privacy-policy/) GDPR Privacy Policy (https://cradlepoint.com/about-us/gdpr-privacy-policy/) COR IBR1700 Mobile Router Models This guide applies to the following COR IBR1700 Mobile router models. CRADLEPOINT IBR1700-1200M-B S5A844A CRADLEPOINT IBR1700-600M S5A741A Title...
