Summary of Contents for Vizio SV200M-0805

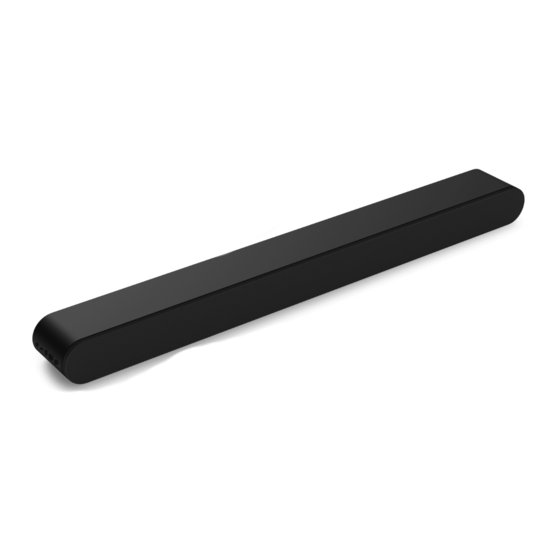

- Page 1 2.0 Sound Bar User Manual SV200M-0805 Model: Please read this guide before using the product.
- Page 2 ENG - ii...
- Page 3 You have the right to opt out of the Binding Arbitration Agreement and Class Action Waiver within 60 calendar days of your purchase. Please refer to the Limited Warranty section of this User Manual or view the full VIZIO Terms and Conditions for opt-out instructions.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS • Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your Unit yourself. • Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair.
-
Page 6: Table Of Contents
TABLE OF CONTENTS Package Contents ............................1 Controls & Connections ..........................2 Using the Mobile App or On-screen Menu ....................8 Proper Placement ............................9 Mode & Level Settings ..........................10 Using Button Combinations ........................12 Programming the Sound Bar ........................13 Bluetooth Pairing ............................ -
Page 7: Package Contents
Then use the included digital optical cable to connect to your TV. Digital Optical Unlock the best picture and audio quality More questions? with a VIZIO SmartCast® TV. Get customer support help support .vizio.com Scan here to shop our V-series ™... -
Page 8: Controls & Connections
Controls & Connections Back of Sound Bar Back of Sound Bar Power Port You can also use this port to connect a Voice Assistant device. See Connecting to a Voice Assistant on page 16 for more information. ENG - 2... - Page 9 Controls & Connections Supports .WAV and .MP3 file format playback only. ENG - 3...
- Page 10 Controls & Connections Side of Sound Bar Power Press to turn on or off. Input Volume Press to change the audio source. Increase or decrease the loudness of the audio. Bluetooth Input Hold to pair. (See ‘Bluetooth Pairing’ for more information.) ENG - 4...
- Page 11 First-time Setup Choose the best possible connection cable type and connect it to your TV. HOME THEATER DISPLAY | QUICK Installation Guide Back of Sound Bar BEST Be sure the TV port is an audio output, not an audio input. HDMI Cable Not all TVs have the audio outputs shown.
- Page 12 First-time Setup Connect the power cable to the soundbar AC IN as shown. Plug the power cable into an electrical outlet. Back of Sound Bar ENG - 6...
- Page 13 First-time Setup ENG - 7...
-
Page 14: Using The Mobile App Or On-Screen Menu
Using the Mobile App or On-screen Menu ENG - 8... -
Page 15: Proper Placement
Proper Placement For the best sound experience, position the soundbar as shown. The soundbar should be close to ear level. Soundbar is centered below the TV. ENG - 9... -
Page 16: Using Button Combinations
Using Button Combinations There are other functions that are triggered by different button combinations on the soundbar. Buttons are located here. Function Description Reset the soundbar to the factory default settings. To perform a Factory Reset, Factory Press and Hold the Bluetooth( ) and Volume Down (—) buttons for 5 seconds. -
Page 17: Programming The Sound Bar
Programming the Sound Bar ENG - 11... -
Page 18: Bluetooth Pairing
Bluetooth Pairing To pair the soundbar with a Bluetooth device: Press and hold the Bluetooth button on the soundbar or remote control for three (3) seconds. Search for the soundbar (SV200M) using your Bluetooth device. For more information, refer to the user documentation that came with the device. -
Page 19: Using Bluetooth Mode
Using Bluetooth Mode Your soundbar supports music streaming from devices with Bluetooth capability. (Device compatibility will vary, see your device’s documentation for more information.) Once you have paired your source device to the soundbar your device should remain paired (within range). If the source is changed back to Bluetooth, any paired Bluetooth device will reconnect automatically. - Page 20 Wall Mounting Place the included Wall Mounting Template against the wall under your TV. Mark the two bracket holes using a pencil. 729999-000558 Install the screws to the wall. Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for brick/concrete walls). Suggested screw size: 4.5mm diameter 25 mm minimum length...
- Page 21 Wall Mounting Attach one end of the provided HDMI cable to the HDMI eARC port on your soundbar. Attach the other end to your TV’s ARC/eARC port.Slide the wall mount slots on the rear of the Slide the soundbar’s wall mount slots over the installed screws. Wall Mount Slots 729999-000558 ENG - 15...
- Page 22 QuickFit Mounting Your soundbar may be attached directly to the bottom of QuickFit compatible VIZIO TVs. For additional information and VIZIO TV compatibility, visit www.vizio.com/quickfit. Before you begin ⁄ ” (0.625”) Rotate the soundbar so that it is upside Locate the thumb screws inside the included Before you begin, please ensure that your TV wall down with the orange tab on the left.
-
Page 23: Product Registration And Support
Customized Support Get assistance quickly with your information on hand. News and Offers Take advantage of the latest news and special offers from VIZIO. Updates and Enhancements Stay up-to-date with important product updates and notifications. More questions? Find answers at: SUPPORT.VIZIO.COM... -
Page 24: Help & Troubleshooting
Help & Troubleshooting • Press the POWER button on the remote control or on the top of your soundbar. There is no power. • Ensure the power cord is securely connected. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. •... -
Page 25: Limited Warranty
By using this VIZIO product, you accept all VIZIO Terms and Conditions, including all the Terms of Warranty, BINDING ARBITRATION AGREEMENT, and Class Action Waiver. If you do not agree to the terms of this warranty, do not use the VIZIO product and, within thirty (30) days of the date of purchase, return it for a refund to the authorized retailer where you purchased it. - Page 26 If you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve the issue informally with VIZIO. If you are unable to resolve the issue informally and wish to file a formal claim against VIZIO, and if you are a resident of the United States, you must submit your claim to binding arbitration according to the procedures described below, unless an exception applies.
- Page 27 General No employee or agent of VIZIO may modify this warranty. If any term of this warranty, other than the class action waiver, is found to be unenforceable, that term will be severed from this warranty and all other terms will remain in effect. If the class action waiver is found to be unenforceable, then the entire section titled “Binding Arbitration Agreement;...
-
Page 28: Legal & Compliance
All software is provided subject to software license agreements and you agree that you will be bound by such license agreements in addition to other applicable terms of use. By using the VIZIO products, you agree to the VIZIO Terms of Service and Privacy Policy. The VIZIO Terms of Use and Privacy Policy may be updated from time to time and are available to view at vizio.com/terms and vizio.com/privacy, respectively. -
Page 29: Specifications
Legal & Compliance Specifications Sound Bar: One 1.67" x 2.77" (42.3 x 70.3 mm) Full Range Driver for each channel (1 for left, 1 for right, ) HDMI (eARC) Connections: Bluetooth One USB (Supports .WAV and .MP3 format only) Sound Pressure Level (System): 93 dB Frequency Response (System):... - Page 30 Bluetooth SIG, Inc. and any use of such ® marks by VIZIO Inc. is under license. Other trademarks and trade names are those of their respective owners. Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Audio, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation For DTS patents, see http:/ /patents.dts.com.
- Page 31 © 2023 VIZIO INC. ALL RIGHTS RESERVED. 231231BT ENG - 25...
