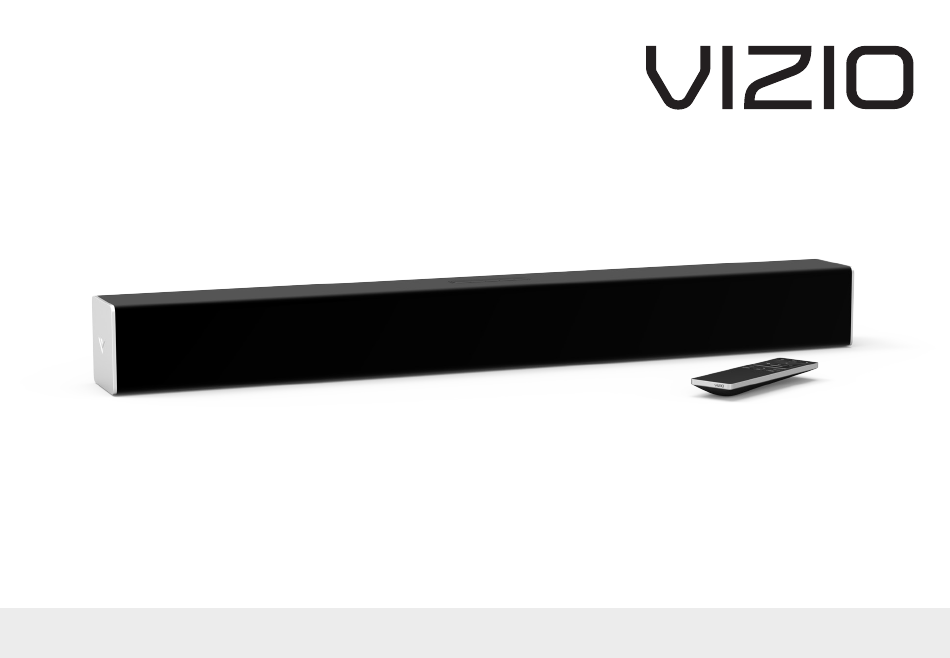

  • Page 1 QUICK START GUIDE Model: SB2820n-E0 Please read this guide before using the product.
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit.
  • Page 3 • Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock. •...
  • Page 4: Table Of Contents

    TABLE OF CONTENTS Package contents ............................5 Controls & Connections ..........................6 First-Time Setup...............................8 Using the Remote ............................12 LED Indicators ..............................13 Bluetooth Pairing .............................15 Using Bluetooth mode ..........................16 Advanced Setup ...............................17 Connecting a Subwoofer ..........................18 Using Button Combinations ...........................19 Wall-Mounting the Sound Bar ........................20 Help &...
  • Page 5: Package Contents

    PACKAGE CONTENTS VIZIO VIZIO QUICK START GUIDE Model: SB2820n-E0 QUICK START GUIDE Please read this guide before using the product. Model: SB2820n-E0 Please read this guide before using the product. Quick Start Guides High Definition Sound Bar Remote Control with...
  • Page 6: Controls & Connections

    (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B)/NMB-3(B) For DTS patents, see http://patents.dts.com. 1936-1101-8810 綠色虚线框内由厂内打印 PRINTING COLOR : VIZIO SB2820n-E0 B/C IO LBL (US) WHITE 1936-1101-8810 BACK 100% C=60, M=75, Y=0, K=0 (SILVER MATTE)不變色反銀龍,T=0.075mm (3M 7883 OR EQUIVALENT) FINISH: PRINT FRONT SIDE + 霧油, ADHESIVE BACK + 壓花格底膠.
  • Page 7 Bluetooth Input Hold to pair. (See ‘Bluetooth Pairing’ for more information.) Volume Increase or decrease the loudness of the audio. Input Press to change the audio source. Power Press to turn Sound Bar on or off. Top of Sound Bar English - 7...
  • Page 8: First-Time Setup

    1936-1101-8810 CHOOSE ONE CABLE 綠色虚线框内由厂内打印 DIGITAL OPTICAL GOOD CABLE 3.5MM TO † RCA CABLE PRINTING COLOR : VIZIO SB2820n-E0 BETTER B/C IO LBL (US) WHITE GOOD BETTER 1936-1101-8810 BACK 100% C=60, M=75, Y=0, K=0 (SILVER MATTE)不變色反銀龍,T=0.075mm (3M 7883 OR EQUIVALENT) FINISH: PRINT FRONT SIDE + 霧油, ADHESIVE BACK + 壓花格底膠.
  • Page 9 CAN ICES-3 (B)/NMB-3(B) For DTS patents, see http://patents.dts.com. 1936-1101-8810 綠色虚线框内由厂内打印 Connect the included power PRINTING COLOR : VIZIO SB2820n-E0 adapter to the Sound Bar DC IN as B/C IO LBL (US) WHITE shown. 1936-1101-8810 BACK 100%...
  • Page 10 For the best surround sound experience, position the Sound Bar as shown. The Sound Bar should be close to ear level. Sound Bar is centered below the TV. English - 10 English - 10...
  • Page 11 Remove the battery cover by gently Insert the included batteries and gently sliding it away from the remote. slide the battery cover back into place. When needed, VIZIO recommends replacing the batteries that came with this remote with two, new Duracell ‘AAA’ alkaline batteries. Input Turn on your TV and sound bar.
  • Page 12: Using The Remote

    USING THE REMOTE Input Press to change input source. Press and Hold for 3 seconds to enable the Auto Input Detection mode. Bluetooth Power Press to enter Bluetooth input. Press to turn on or off. (To enter force pair mode, press and hold for 3 seconds) Volume +/- Enter/Play/Pause...
  • Page 13: Led Indicators

    Press and hold the button on the remote. The Sound Bar will be discoverable for 15 minutes. You can now search for the Sound Bar (VIZIO SB2820n) using your Bluetooth Device. The sound bar Bluetooth (When searching for device) will power down if no device is found.
  • Page 14 Function LED Behavior Description TruSurround On Press the TSHD button to enable/disable DTS TruSurround. TruSurround When enabled (On), all inputs will produce virtual surround On/Off sound. When disabled (Off), all sources will playback in stereo. TruSurround Off Press the TREBLE button then press the Next/Previous button Treble Two center LEDs indicate to increase/decrease the treble level.
  • Page 15: Bluetooth Pairing

    Once the device is paired, the LED Indicators will stop flashing. You can now search for the sound bar (VIZIO SB2820n) using your Bluetooth device. For more information, refer to the user documentation that came with the device.
  • Page 16: Using Bluetooth Mode

    USING BLUETOOTH MODE Your sound bar supports music streaming from smartphones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. Once you have paired your source device to the sound bar, as long as you stay within range of the sound bar, your device should remain paired.
  • Page 17: Advanced Setup

    (2) this device must accept any interference received, including interference that may cause undesired operation. Back of Sound Bar CAN ICES-3 (B)/NMB-3(B) For DTS patents, see http://patents.dts.com. 1936-1101-8810 綠色虚线框内由厂内打印 PRINTING COLOR : VIZIO SB2820n-E0 B/C IO LBL (US) WHITE 1936-1101-8810 BACK 100% C=60, M=75, Y=0, K=0 3.5MM TO DIGITAL OPTICAL (SILVER MATTE)不變色反銀龍,T=0.075mm...
  • Page 18: Connecting A Subwoofer

    RCA Subwoofer Cable* an RCA cable from the Sound Bar to the Subwoofer. 綠色虚线框内由厂内打印 Power On the Sound Bar and Subwoofer. PRINTING COLOR : VIZIO SB2820n-E0 B/C IO LBL (US) Press the BASS button on the remote control to WHITE 1936-1101-8810 BACK 100% enter bass adjustment mode.
  • Page 19: Using Button Combinations

    All 12 LEDs will Reset 5 seconds. flash 3 times VIZIO TV Enable/disable the use of a VIZIO TV remote control to power on VIZIO TV Remote Enabled and adjust the volume of the sound bar. To enable/disable this Remote...
  • Page 20: Wall-Mounting The Sound Bar

    CAN ICES-3 (B)/NMB-3(B) For DTS patents, see http://patents.dts.com. 1936-1101-8810 綠色虚线框内由厂内打印 PRINTING COLOR : VIZIO SB2820n-E0 B/C IO LBL (US) WHITE Insert the two wall-mount screws into the wall-mount screw holes, and then 1936-1101-8810 BACK 100% C=60, M=75, Y=0, K=0 (SILVER MATTE)不變色反銀龍,T=0.075mm...
  • Page 21 Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for brick/concrete walls). Screws for attaching the brackets to the wall are not included. Choose the screw type and length appropriate to your home’s construction. If in doubt, consult a professional installer. *Bracket Screw NOT included with sound bar Wall Mount Screw...
  • Page 22 Why register? Customized Support Get assistance quickly with your information on hand. News and Offers Take advantage of the latest news and special offers from VIZIO. Safety and Satisfaction Stay up-to-date with important product updates and notifications. English - 22...
  • Page 23 Award-Winning Customer Care At Your Convenience. NEED HELP? Go to: support.vizio.com Find help with: New product setup • • Connecting your devices • Technical problems • Product updates and more Live chat support available You can also contact our popular support team at:...
  • Page 24: Help & Troubleshooting

    HELP & TROUBLESHOOTING Press the POWER button on the remote control or on the top of your Sound Bar. • There is no power. • Ensure the power cord is securely connected. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. Increase the volume.
  • Page 25: Limited Warranty

    VIZIO’s Responsibilities If VIZIO determines that a product is covered by this warranty, VIZIO will (at its option) repair or replace it, or refund the purchase price to you. There will be no English - 25...
  • Page 26 What to Do If You Are Not Satisfied With Service If you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve the issue informally with VIZIO. If you are unable to resolve the issue informally and wish to file a formal claim against VIZIO, and if you are a resident of the United States, you must submit your claim to binding arbitration according to the procedures described below, unless an exception applies.
  • Page 27 General No employee or agent of VIZIO may modify this warranty. If any term of this warranty, other than the class action waiver, is found to be unenforceable, that term will be severed from this warranty and all other terms will remain in effect. If the class action waiver is found to be unenforceable, then the entire section titled “Binding Arbitration Agreement;...
  • Page 28 Specifications Sound Bar: One 2.0”x2.7” Full Range Drivers for Each Channel (1 for Sound Pressure Level (System): 95 dB left, 1 for right) Frequency Response (System): 50 Hz - 20 KHz Inputs: One 3.5mm Stereo Audio One Optical (Toslink) Voltage: 120 VAC, 60 Hz Bluetooth (Wireless) Compliances:...
  • Page 29: Legal & Compliance

    LEGAL & COMPLIANCE FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 30 © 2017 VIZIO, Inc. All Right Reserved. This Quick Start Guide may not be copied in whole or in part without the written permission of VIZIO, Inc. VIZIO, Inc. has made reasonable efforts to ensure the accuracy of the information provided herein. All product specifications, functionality, features, configurations, performance, design and other product information described herein are subject to change without notice.
  • Page 31 For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Studio Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. For DTS patents, see http://patents.dts.com.
