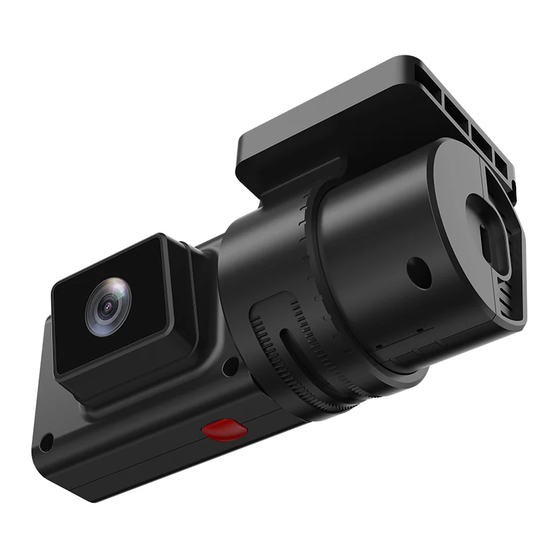

Jimi JC181 Series Quick Start Manual

4g dashcam lite
Hide thumbs

Advertisement

Table of Contents

JC181 Series
4G Dashcam Lite
Quick Start Guide V1.1
Please read this guide carefully before use. Because the product performance may
improve over time, this guide is subject to change without notice.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JC181 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jimi JC181 Series

Summary of Contents for Jimi JC181 Series

  • Page 1 JC181 Series 4G Dashcam Lite Quick Start Guide V1.1 Please read this guide carefully before use. Because the product performance may improve over time, this guide is subject to change without notice.

  • Page 2: Appearance Description

    01/Overview of Product Appearance 1.1. Appearance Description Item Function Item Function Mount base Memory card / SIM card slot Front camera (main) Power supply port SOS Key Microphone Fastener screw Heat sink Sub camera Speaker Status indicator light Upgrade/reset button (red, green, blue) 1.2.

  • Page 3: Standard Configuration

    2.3. Selection of accessories The JC181 series requires a SIM card and a memory card to function its best. You can purchase the two accessories according to your specific needs, but the following re quirements must be met: Memory card 1.

  • Page 4: Product Features

    Standard 03/Product Functions JC181 series is a compact 4G dashcam. It has two cameras that simultaneously monitor the road ahead and the cabin. It uses the 4G network to communicate with the backend, pinpoints locations using GPS and BDS signals, and detects movements of the vehicle using the G-sensor. It can be widely used in light vehicle fleets and private cars, enabling remote management of both vehicles...

  • Page 5: Product Performance

    3.2. Configuration and parameters Configuration Parameter Configuration Parameter Communication 4G Cat.1 ARM Cortex A7 network Speaker Support Microphone Support Sub camera 1920 × 1080 640 × 360 Front camera (main) GNSS GPS & BDS G-sensor 3-axis 2.4G 802.11 b/g/n AP Micro SD card in FAT32 WiFi Memory card...

  • Page 6: Installation Preparation

    4.2 Installation preparation ● Check the package you received against the packing list and make sure everything is in good condition before installing. ● Prepare the installation tools (insulation tape, assembly and disassembly tool, etc.) ● Check if all original functions of the vehicle in which the device is to be installed are normal.

  • Page 7: Device Testing

    Step 1: Connect the power cable of the device with the B+, ACC, and GND wires from the vehicle fuse box. Refer to Figure ① for the location. Step 2: Route the power cable along the A pillar to the top center of the front wind shield.

  • Page 8: Basic Operation

    Live Video XC4000-07405 05/Main Functions 5.1. Basic operation ● Startup If the device's power cable is properly connected to the vehicle's power source, the device will start automatically when the vehicle is started without human intervention. ● Shutdown The device shuts down automatically if the power source to it is disconnected. ●...

  • Page 9: Special Note

    06/Others 6.1. FAQ 1. The device does not start and the LED indicators are off. (1) Check the ignition status of the vehicle, as the device will operate only when the vehicle is started; (2) Check if the device is securely connected to the B+, ACC, and GND wires of the vehicle;...

  • Page 10: Warranty Terms

    7.2. Warranty Terms For damages not caused by human factors, this warranty lasts for one year starting from the date of purchase. You can choose to pay for the repair services in any of the following cases: ① The warranty card is expired ②...

  • Page 11: Customer Information

    08/Warranty Card Customer Information: Customer Name IMEI No. Mailing Address Phone Product Model Date of Purchase Invoice No. Purchased From Address Phone Maintenance Record Service Start Date Problem and Solution Service End Date Customer Signature Important Please keep this warranty card in a safe place, as it is the proof for one-year free warranty services.
