Summary of Contents for Jimi JC400D
- Page 1 Instruction for JC400D Test V1.0 Oscar 2020.02.23...
-
Page 2: Table Of Contents
1.1 JC400D Overview: ..................3 1.2 Device Installation: ..................3 1.3 DMS Camera Installation: ................4 1.4 Calibration Tool ..................4 2. JC400D DMS Function Setting ..................6 2.1 Command Description ................6 2.2 Tracksolid Setting Instruction ..............7 2.2.1 APP Side ....................7 2.2.2 WEB Side .................... -
Page 3: Jc400D Installation

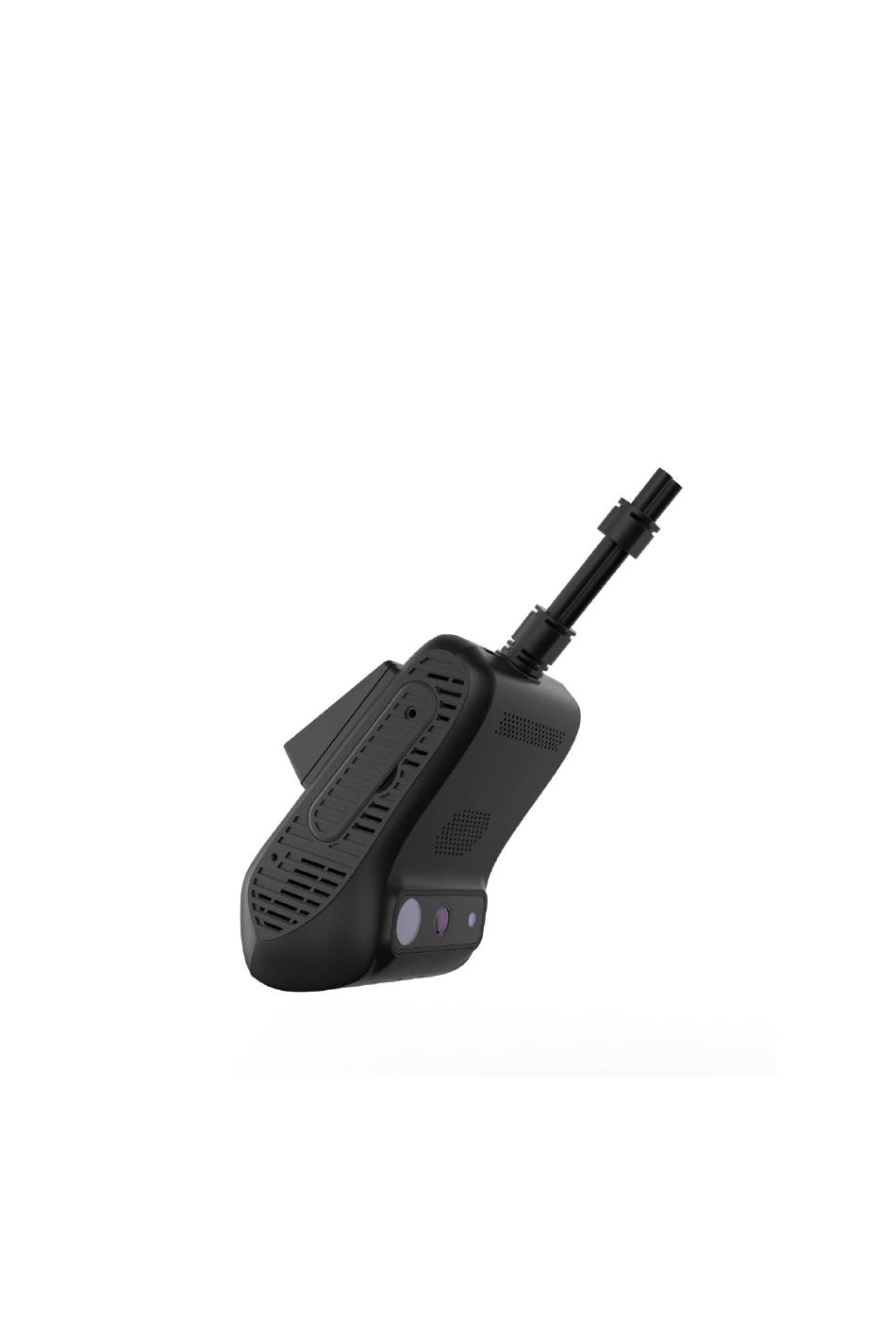

1. JC400D Installation 1.1 JC400D Overview 1.2 Device Installation ⚫ Select a proper installation position, and clean and dry it; ⚫ Tear the protective film off the 3M sticker on the mount base. Then attach the mount base to the glass window;... -
Page 4: Dms Camera Installation
⚫ Connect the device to the mount base; ⚫ To remove the device, you are advised to use a normal remover to clean the sticker residue on the glass surface; 1.3 DMS Camera Installation ⚫ Select a proper installation position. You can mount it over the dashboard or at a position within 30 degree right of the dashboard;... - Page 5 ⚫ After installation, you can see the APP button as above; ⚫ Click the APP and you can see as below, you need to connect device via WIFI first, please click “Connecting device”: ⚫ You can see the description for how to connect device WIFI Hotspot, please do that; 5 / 12...
-
Page 6: Jc400D Dms Function Setting
⚫ After connection, please click “DMS Calibration” and make sure your face in the blue square, click to calibrate; ⚫ The calibration finished; 2. JC400D DMS Function Setting 2.1 Command Description Command Format Parameters Description Command Function: This is command to set DMS function of device;... -
Page 7: Tracksolid Setting Instruction
B=Yawning Event; C=Distraction Event; D=Smoking Event; E= Phone Calling Event; F=Shelter Event; The value can be set for each event is 0,5,10,30,60; Unit is Second; Default is 5s; Command Function: This is command to set interval of the same event to upload alarm data to server; A=Eyes Closing Event;... -
Page 8: Web Side
(3) Setting page—Event video upload or not; (4) Notification page—DMS event alarm; 2.2.2 WEB Side (1) Please search and login Tracksolid Website; (2) Command setting page; 8 / 12... -
Page 9: Jc400D Test Steps
3.1 JC400D Test Steps We suggest you can test in your office first to know more about our device when you receive JC400D, then test in your car. (1) Test in Office Connect the device with the power supply and make it ACC ON, make sure 3 LEDs are static lighting;... - Page 10 sure all DMS event can be show in APP; If you want some events to record small video and upload to server and show in APP, you need set that, because default setting is OFF; All setting ready, if not clear, you can chck part “2.2”.
-
Page 11: How To Trigger Event
(2) Test in Car 1) Please check part “1. JC400D Installation” to finish the installation; 2) Please use “calibration tool” to finish the calibration; 3) Please change settings as your wish, then start to test; 3.2 How to trigger event... -
Page 12: Please Note
(4) Smoking: (5) Phone calling: 3.3 Please note (1) Default Setting and can be changed by yourself: 1) After you trigger a DMS event, the camera will record video by default. The recording time is 5s before and 5s after triggered time point, totally is 10 seconds; 2) If you want to upload event video to server, you need to switch it on, default is OFF;...
