- Page 1 JC261 Series 4G Dashcam User Manual V1.4 Please read this manual carefully prior to use. The content of this manual may change due to improvement in performance without prior notice.
-
Page 2: Table Of Contents
CONTENTS 1· · ·····Introduction 1.1 Packing List ------------------------------------------------- 01 1.2 Overview ---------------------------------------------------- 02 1.3 Appearance and LEDs ------------------------------------ 02 1.4 Wirings ----------------------------------------------------- 05 2· · ·····Specifications·and·Features 2.1 Specifications ---------------------------------------------- 06 2.2 Features ----------------------------------------------------- 07 3· · ······Installation· 3.1 Preparation ------------------------------------------------- 08 3.2 SIM Card Attachment ------------------------------------- 08 3.3 TF Card Attachment -------------------------------------- 09 3.4 Main Unit Installation ------------------------------------ 10... -
Page 3: Packing List

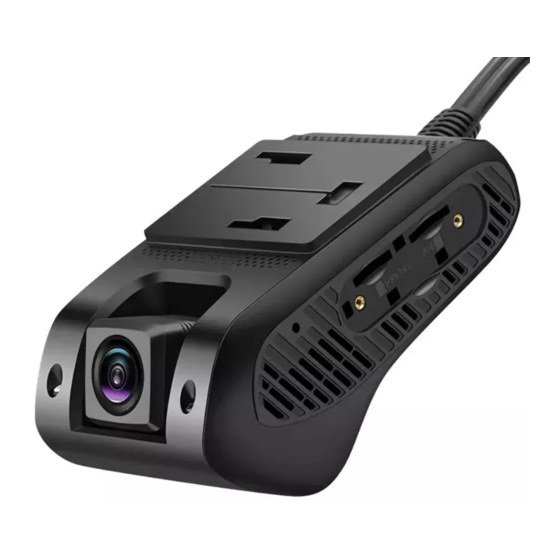

Making connections simpler Introduction 1.1·Packing·List· Standard JC261 JC261P Bracket (for sedans) Power bundle Tamper cover External SOS key Philips screwdriver Screws Relay Opcional Bracket Bracket Tamper lock (for heavy-duty trucks) (for medium-duty trucks) Simple Version Power Cable ・Please check the product model you purchased carefully as the packing list varies with the model. -
Page 4: Overview
Making connections simpler 1.2·Overview ・JC261 series uses 4G network for communication. For these dual- channel digital video recorders (DVRs), except to be able to record simultaneously, the two cameras can also record locally and live stream remotely at the same time. A number of safety features are included in the system, including DMS, ADAS, exception alerts, and more. - Page 5 Making connections simpler Product Model JC261 main unit Camera 1920x1080/25FPS/F 2.2/Full color 1.3.2·Subcamera·Options Product Model JC261P Integrated Version 1280x720/15FPS/F2.5/Full color Camera in daytime and monochrome in dim light No remote camera Inward camera Usage Monitor the cabin Remote Cabin-view Product Model JC261 Version 1280x720/15FPS/F2.0/...
- Page 6 Making connections simpler 1.3.3·LEDs Color Connotación Estatus Solid on Device power on On for 0.5s and off for Device in sleep mode Power No TF card detected or TF On for 1s and off for 1s card damaged No power connected Connection to server Solid on succeeded...
-
Page 7: Wirings
Making connections simpler 1.4·Wirings Cable Definition Color Usage To battery positive (9-30V), power input Black To battery negative, power input Power Yellow To ACC ON/Positive (9~30V), power input Relay Green To relay for remote power and fuel cutoff To peripherals, such as oil sensor, card (optional) reader, etc. -
Page 8: Specifications
Making connections simpler Specifications and Features 2.1·Specifications Category Item Parameter Remarks Memory 1GB+16GB FDD: B1/B3/B5/B7/B8/B19/B20 TDD: B38/B39/B40/B41 Standard version WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900 FDD: B2/B4/B5/B7/B12/B17 TDD: B38/B41 Hardware American Version WCDMA: B2/B4/B5 GSM: 850/1900 WiFi 2.4GHz 802.11/b/g/n GNSS Support GPS/BDS Microphone Support For remote voice communication... -
Page 9: Features
Making connections simpler 2.2·Features Feature Description This enables the device to record in loop when Video recording the vehicle is moving. This enables the device to live stream images Live video captured by cameras via the LTE network to the platform (web or app). -
Page 10: Preparation
Making connections simpler Installation Precautions: ・This device is not suitable for battery electric vehicles (BEVs) and hybrid electric vehicles (HEVs). ・Use accessories specified by the manufacturer only. ・The standard supply for the device is DC9-30V, please use the original power cable and ensure that the positive and negative ends are correctly wired. -
Page 11: Tf Card Attachment
Making connections simpler Note: Fit the Nano-SIM into the tray and insert them into the SIM slot. To remove the card tray, use the ejector tool. 3.3·TF·Card·Attachment· ・Ensure that the device is ACC OFF before attaching a proper TF card. Note: 1.Use a TF card in speed class 10 or higher and with a capacity of 32GB or above. -
Page 12: Main Unit Installation
Making connections simpler 3.4··Main·Unit·Installation ・Connect the power cable of the device to B+, ACC, and GND of the fuse box on the vehicle. ① is a reference position. ・Route the power cable along the A pillar of the vehicle to the upper center of the front windshield. -
Page 13: Installation Of Accessories
Making connections simpler 3.5·Installation·of·Accessories· ・You can select a proper position to install the remote camera according to actual conditions. 3.5.1·Remote·AHD·Camera ・Face the camera inward and install it to the windshield behind the rear- view mirror (as shown in ① ) or to the middle of the dashboard (as shown in ②... - Page 14 Making connections simpler 3.5.2·JC170·DMS·Camera·· ・The DMS camera is mainly used for monitoring the driver. Fixate the camera at an angle about 30° to the steering wheel directly facing the driver's head, as the following figure shows. 3.5.3·Other·Accessories...
-
Page 15: Commissioning
Making connections simpler ・ SOS key It is used to seek help in emergencies. Connect the SOS key to the corresponding interface on the device, remove the protective film from the 3M tape, and then attach it to a proper position (such as ① in the above figure). - Page 16 Making connections simpler ・Check the camera: The camera works correctly if you can view the live video of the camera and switch between the two cameras after logging in to the platform. You can also manually adjust the camera according to your needs.
-
Page 17: Installation
Making connections simpler Platform Operations 4.1·Installation 4.1.1·Platform·· ・Scan the QR code on the right with the browser of your mobile phone to download and install the app. 4.1.1·Configuration·Tool ・Scan the QR code on the right with the browser of your mobile phone to download and install the Configuration Tool. - Page 18 Making connections simpler FCC Compliance Statements This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
