netvox R831C User Manual

Wireless multifunctional control box
Hide thumbs Also See for R831C:
Table of Contents

Advertisement

Quick Links

Download this manual

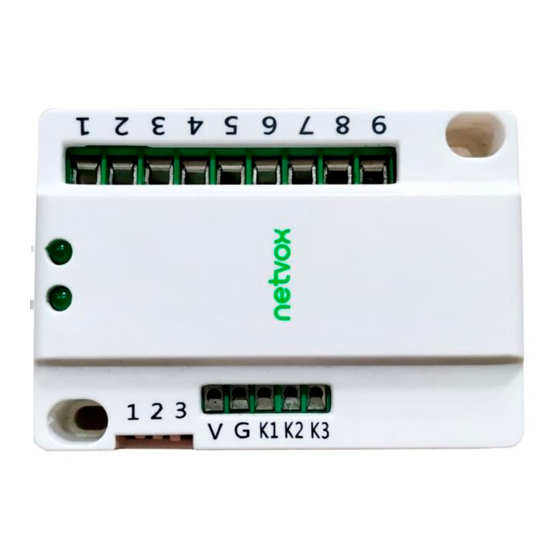

R831C
Wireless Multifunctional Control Box
Wireless Multifunctional
Control Box
R831C
User Manual
Copyright© Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict
confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The
specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R831C and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R831C

Summary of Contents for netvox R831C

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The...

  • Page 2: Table Of Contents

    Table of Contents Introduction ..................2 Appearance ..................3 Features ....................4 Set up Instruction ................5 5. Data Report ....................6 5.1 Example of ReportDataCmd .............. 6 5.2 Example of ConfigureCmd ..............7 5.3 Example of NetvoxLoRaWANRejoin ..........10 6.

  • Page 3: Introduction

    1. Introduction R831C is a high-reliability switch control device which is a Class C device of netvox based on the LoRaWAN open protocol. The device is compatible with LoRaWAN protocol. R831C is a device used to control the switch and is mainly used for the switch control of the electrical appliances.

  • Page 4: Appearance

    First load DIP Switch Port 4 Second load Port 5 Second load Port 6 Third load Port 7 Third load R831C Port 8 DIP SW Port 9 DIP Switch (Change R831 series mode) input 1 input 2 Function Key input 3...

  • Page 5: Features

    ⚫ Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne ⚫ Improved power management for longer battery life Note: Please visit http://www.netvox.com.tw/electric/electric_calc.html for detailed information of battery lifespan. (1) The actual range may vary depending on the environment. (2) Battery life is determined by sensor reporting frequency and other variables...

  • Page 6: Set Up Instruction

    4. Set up Instruction On/Off Power On External 12V power supply Turn On After plug the power, the status indicator will stay on, it means the boot is successful. Restore To Factory Setting Press and hold the function key for 5 seconds till the status indicator flashes 20 times. Power Off Remove power Note:...

  • Page 7: Data Report

    (2) The interval between two reports must be the MinTime. (3) If there are special customized shipments, the setting will be changed according to customer’s requirements. (4) Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://cmddoc.netvoxcloud.com/cmddoc to resolve uplink data.

  • Page 8: Example Of Configurecmd

    Device DeviceType ReportType NetvoxPayLoadData SoftwareVersion HardwareVersion DateCode Reserved 0x00 (1Byte) Eg.0x0A—V1.0 (1Byte) (4Bytes,eg 0x20170503) (2Bytes,fixed 0x00) R831C 0xAD Relay1Status Relay2Status Reserved Relay3Status (1Byte, 0x01 (1Byte,OFF_0x00, (1Byte, OFF_0x00, OFF_0x00,ON_0x01) (5Bytes,fixed 0x00) ON_0x01) ON_0x01) Uplink: 01AD010101010000000000 (01): Version (AD): DeviceType (01): ReportType (01): Relay1Status–...
  • Page 9 Channel(1Bytes) bit0_relay1, Reserved Toggle 0x92 bit1_relay2, (8ytes, Fixed 0x00) bit2_relay3, bit3_bit7:reserved Reserved Read Current Status 0x94 (9Bytes, Fixed 0x00) MinTime MaxTime Reserved ConfigReportReq 0x01 (2bytes Unit: s) (2bytes Unit: s) (5Bytes, Fixed 0x00) Status Reserved ConfigReportRsp 0x81 (0x00_success) (8Bytes, Fixed 0x00) Reserved ReadConfigReportReq 0x02...
  • Page 10 Max Time and Min Time setting (1) Command Configuration: MinTime = 1min, MaxTime = 1min Downlink: 01AD003C003C0000000000 Response: 81AD000000000000000000 (Configuration success) 81AD010000000000000000 (Configuration failure) (2) Read Configuration: Downlink: 02AD000000000000000000 Response: 82AD003C003C0000000000 (Current configuration) Relay switch control (3) Relay1, Relay 2, Relay3 normal open (disconnect) Downlink: 90AD070000000000000000 // 00000111(Bin)=7(Hex) bit0=relay1, bit1=relay2, bit2=relay3 (4) Relay1, Relay 2, Relay3 normal close (connect)

  • Page 11: Example Of Netvoxlorawanrejoin

    5.3 Example of NetvoxLoRaWANRejoin (NetvoxLoRaWANRejoin command is to check if the device is still in the network. If the device is disconnected, it will automatically rejoin back to the network.) Fport: 0x20 CmdDescriptor CmdID (1 Byte) Payload (5 Bytes) RejoinCheckPeriod (4 Bytes, Unit: 1s 0XFFFFFFFF Disable SetNetvoxLoRaWANRejoinReq 0x01...

  • Page 12: Application

    This mode has three relays involved in the operation which are respectively for on /off / stop. (2) R831C - relay mode: Toggle the DIP switch 3 In this mode, the external dry contact can directly control the on / off of the local relay.

  • Page 13: Important Maintenance Instruction

    8. Important Maintenance Instruction Kindly pay attention to the following to achieve the best maintenance of the product: • Keep the equipment dry. Rain, moisture, and various liquids or water may contain minerals that can corrode electronic circuits. In case the device is wet, please dry it completely. •...
