Summary of Contents for Ubiquiti UF-OLT

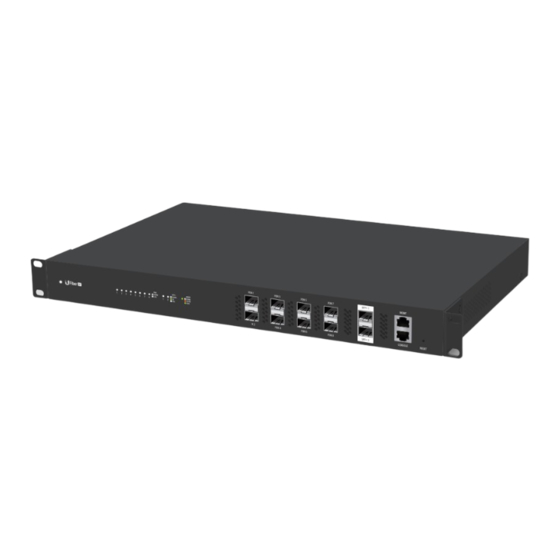

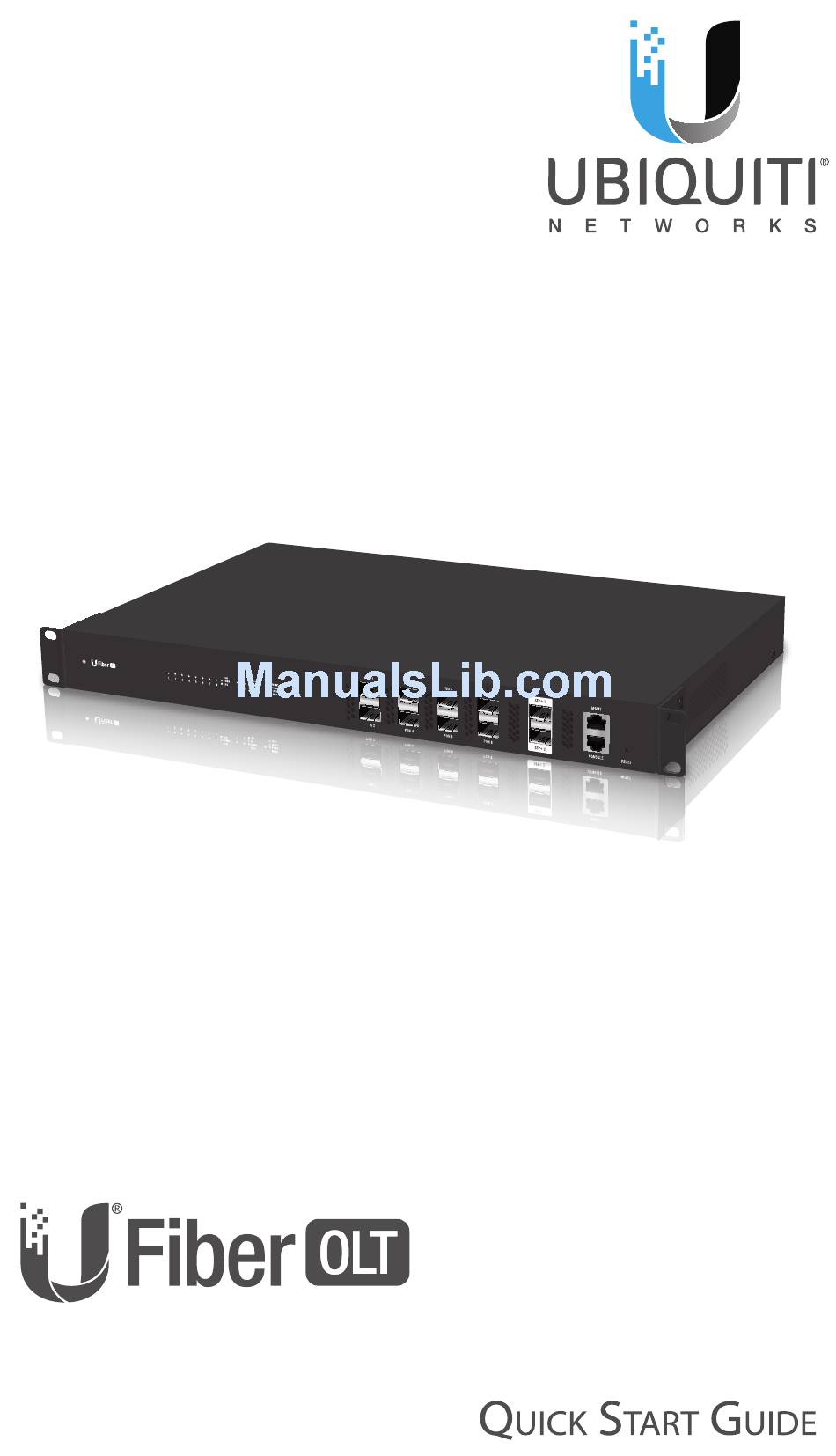

- Page 1 8-Port GPON Optical Line Terminal with SFP+ Model: UF-OLT...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® U®Fiber OLT. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents U Fiber OLT Mounting Brackets Bracket Screws Mounting Screws Cage Nuts (Qty. 2) (Qty. 8) (Qty. -
Page 3: System Requirements
System Requirements • Linux, Mac OS X, or Microsoft Windows 7/8/10 • Web Browser: Google Chrome (Other browsers may have limited functionality) Installation Requirements • Phillips screwdriver (for rack- or wall-mounting) • Standard-sized, 19" wide rack with a minimum of 1U height available (for rack-mounting) •... -
Page 4: Hardware Overview
Hardware Overview Front Panel Ports GPON Ports MGMT SFP+ (PON1-PON8) Port Ports Console Port Reset Button Interface Description GPON Ports Gigabit Passive Optical Network ports (PON 1-PON 8) support up to 128 clients on each port. Hot-swappable SFP+ ports support 1G SFP+ Ports or 10G connections. - Page 5 Interface Description There are two methods to reset the U Fiber OLT to factory defaults: • Runtime reset (recommended) The U Fiber OLT should be running after bootup is complete. Press and hold the Reset button for about 10 seconds until the MGMT LED starts flashing and then becomes solidly lit.
- Page 6 Front Panel LEDs System PON (1-8) SFP+ (1-2) MGMT State Status Blue/Flashing Initializing/Booting Up System White Ready for Use No Link PON 1-8 White/Flashing GPON Link/Activity No Link SFP+ (1-2) Green/Flashing 1G Link/Activity White/Flashing 10G Link/Activity No Link MGMT Amber/Flashing 10/100 Link/Activity Green/Flashing 1000 Link/Activity...
-
Page 7: Back Panel
Back Panel AC/DC PSU PSU 2 Fans Module Module Bay Side Panels Ventilation Holes Ventilation Holes WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE FANS AND VENTILATION HOLES FOR ADEQUATE AIRFLOW. -
Page 8: Hardware Installation
Hardware Installation The U Fiber OLT can be placed on a horizontal surface, mounted on a wall, or mounted in a rack. 1. Attach the Mounting Brackets to the U Fiber OLT using the eight Bracket Screws. 2. Attach the U Fiber OLT to the rack using the four Mounting Screws. - Page 9 3. Connect the Power Cord to the AC/DC PSU Module. 4. Connect the other end of the Power Cord to a power outlet.
- Page 10 Connecting PON 1. Remove the protective plug covering a PON port. 2. Insert the GPON SFP Transceiver into the PON port. 3. Connect a fiber optic cable to the GPON SFP Transceiver. Then connect the other end of the cable to a Passive Optical Splitter (POS).
- Page 11 Connecting SFP+ 1. Remove the protective plug covering an SFP+ port. 2. Insert a compatible SFP transceiver into the SFP+ port. 3. Connect the fiber optic cable to the SFP transceiver. Then connect the other end of the cable to an SFP device.
-
Page 12: Accessing The Configuration Interface
Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it. - Page 13 Installing UNMS ™ The Ubiquiti Network Management System (UNMS) is a Linux-based controller software used to centrally manage the U Fiber OLT and U Fiber Nano G clients. For the latest UNMS version and installation guide, visit: unms.ubnt.com...
-
Page 14: Specifications
Specifications U Fiber OLT Dimensions 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72") Weight Without Mount Brackets 4.400 kg (9.70 lb) With Mount Brackets 4.495 kg (9.91 lb) Max. Power Consumption 40W (Excluding SFP Transceivers) Power Method 110 - 240VAC Modular PSU Power Supply (1) Hot-Swappable AC/DC 100W PSU (Included) -
Page 15: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 16: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... -
Page 17: Limitation Of Liability
No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. - Page 18 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province.
- Page 19 Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it.
- Page 20 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 21 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 22: Declaration Of Conformity
Declaration of Conformity български [Bulgarian] С настоящото UBIQUITI NETWORKS декларира, че това устройство UF-OLT е в съответствие със съществените изисквания и други приложими разпоредби на Директиви 2014/30/ЕС, 2014/35/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет... - Page 23 Ελληνικά [Greek] Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UF-OLT, είναι σε συμμόρφωση με τις βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις των οδηγιών 2014/30/EE, 2014/35/EE. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: www.ubnt.com/compliance...
-
Page 24: Online Resources
©2016-2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
