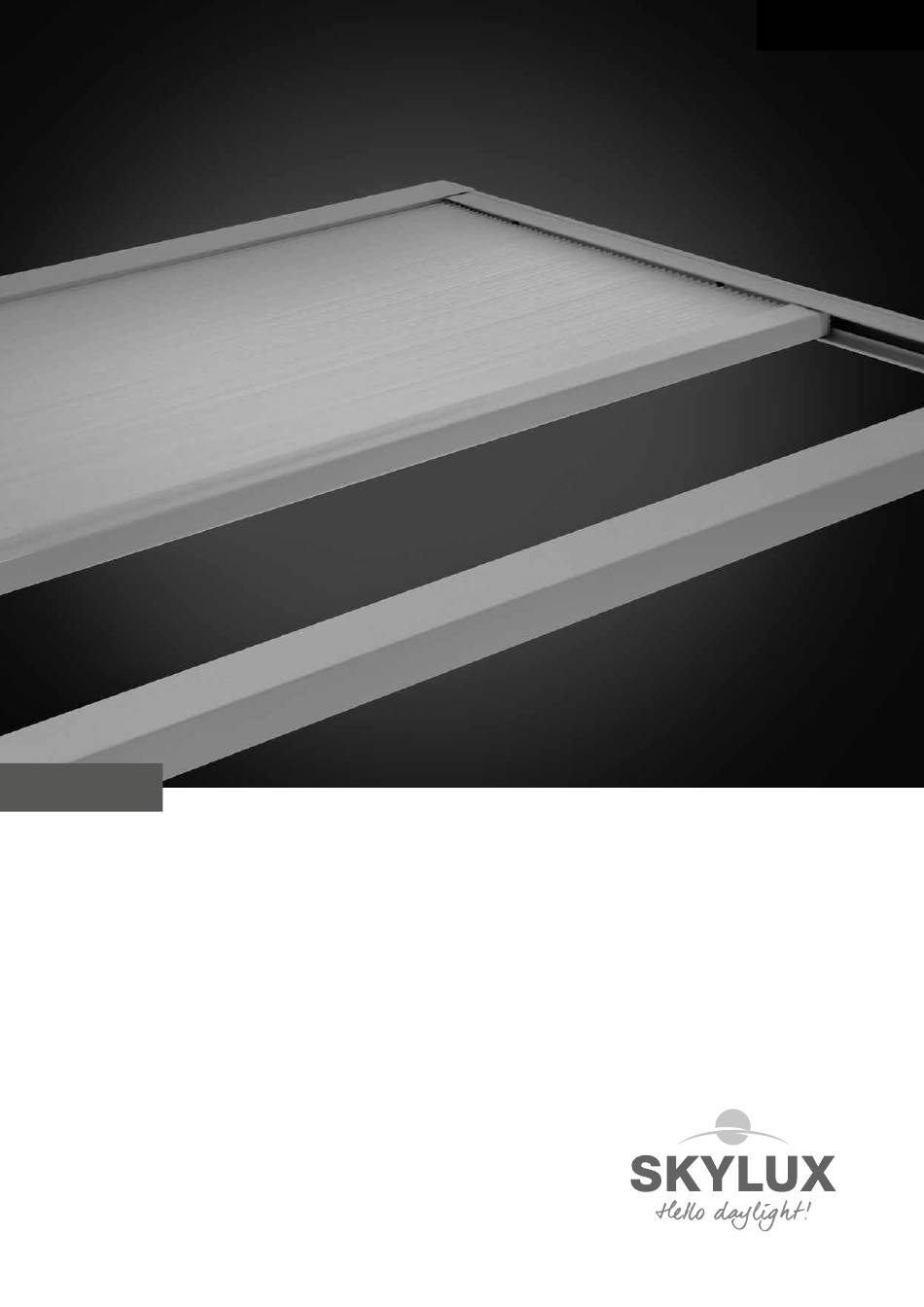

- Page 1 SKYLIGHTS Skylux ® electric screen 230V Mounting instructions...
-
Page 2: Table Of Contents
CONTENT SAFETY p. 3 OVERVIEW PROFILES AND PARTS p. 5 NECESSARY TOOLS p. 5 DIMENSIONS AND POSITION OF THE ELECTRIC SCREEN p. 6 PREPARATION p. 6 INSTALLATION p. 6 CONTROL p. 16 2/18 E_MH_Mounting_instructions_Skylux_Electric_screen_230V 01/03/2024... -
Page 3: Safety
SAFETY Take the necessary and required safety precautions, such as safety nets and lifelines when installing from the outside, safety goggles, gloves, hard hat, etc. Do not step on the glass. Falling from height • When using ladders to go on the roof: - Ladder in good condition? - Set up correctly at an angle of 75°? - Secured below and on top against moving? - Page 4 Sharp objects • Make sure your fingers/hands are not pinched and watch out for cuts while handling skylights or barrel vaults. • Be careful where you put your hands during the installation. • Wearing cut-resistant gloves is mandatory. Ergonomics • Always lift loads correctly: bend your knees, move your feet instead of forcing your spine, lift as close to your body as possible.
-
Page 5: Overview Profiles And Parts
OVERVIEW PROFILES AND PARTS Electric screen 230V Possibilities: Sunblind Blackout blind Insect screen 77375 Leaf spring HiLo screw 25mm PH2 - 5115 for installation in PVC curb Rivet white 5.6mm 78278 Ø 5mm - for installation in polyester (GRP) curb 78179 Roll of tape 2mm 10m (optional use) -
Page 6: Dimensions And Position Of The Electric Screen
DIMENSIONS AND POSITION OF THE ELECTRIC SCREEN General: The dimensions of the electric screen depend on the daylight size of the curb. The electric screen is to be installed in the daylight size, at the top of the curb. daylight size roof opening Curb requirements: It is important that the curb and its daylight size are perpendicular and have no deformations. - Page 7 Installing the installation clips Position and number of installation clips: Installation clips must always be provided on the transversal sides of the electric screen. ±90 screen long side (L) ≤ 2000mm X 12 clips X 12 clips X 12 clips X 12 clips X 12 clips 150 long side (L) >...
- Page 8 Intermediate distance X from between number # clips between between between between between between daylight size start and short of clips per side 6 - end side 400 x 400 400 x 700 400 x 1000 400 x 1300 400 x 1400 400 x 1600 400 x 1900 400 x 2200...
- Page 9 Intermediate distance X from between number # clips between between between between between between daylight size start and short of clips per side 6 - end side 800 x 1800 800 x 2000 800 x 2200 800 x 2300 800 x 2500 800 x 2800 850 x 850 900 x 900...
- Page 10 In case of a combination with an openable glass flat roof window: do not screw where the built-in actuators are situated. Never screw where the built-in spindle actuator is situated in the curb!! 355mm actuator In case of a square curb: Install the electric screen with the screws of the installation clips on the sides without actuators.
- Page 11 Screw the mounting clips in the daylight size of the curb by using the supplied fixations; depending on the curb type: PVC curb Polyester (GRP) curb HiLo screw rivet PVC curbs: Screw the mounting clips in the daylight size of the curb, on the screw line (if available), at 10mm from the top side. Use the HiLo screws 25mm PH2.
- Page 12 Installation in a skylight curb, but not applicable to PVC curb 20/00EP: Cable comes out on the upper side of the screen: (standard) Drill hole Put cable through Ø 9 5° For the installation in a PVC curb 20/00EP, the cable in the screen must be repositioned to the side: •...
- Page 13 Detach the cover at the bottom of the screen from the screen profile: Take the cover and slide it to the right (as shown in the image below). Pull the cable through the hole from the outside to the inside of the screen again. Now, the cable can be pulled back to the outside of the screen, through the hole on the side of the screen.
- Page 14 If the cable is processed on the outside of the curb, the installer is responsible for screening the cable and providing a further good electrical connection. E.g.: For any situation it is possible to place a cover rubber (optional) over the cable to protect overheating. optional art.
- Page 15 Place the electric screen Take the electric screen and install it correctly as described above. Place and clip the electric screen on the inside of the skylight in the installation clips. Attach correctly (clip): click! 15/18 01/03/2024 E_MH_Mounting_instructions_Skylux_Electric_screen_230V...
-
Page 16: Control
Finish as desired but make sure that the cover with keypad is always visible. The screen is easy to remove in order to provide the best possible service afterwards. CONTROL RF remote control The provided remote control is connected in advance to your Skylux device. Functionalities Screen Ventilation... - Page 17 I have lost the remote control It is possible to pair a new remote control to your device: 1. Order a new remote control (www.skylux.eu). 2. Push and hold the pairing button on the keypad (P) and release it after hearing 2 beeps At the same time, the green LED on the keypad will also flash twice.
- Page 18 General use The electric screen on 230V is suited for normal use in normal climate conditions for flat roof windows and/or skylights. Do not store, place or transport the electric screen in places where extra heat accumulation can occur, nor in places that are extremely humid.
