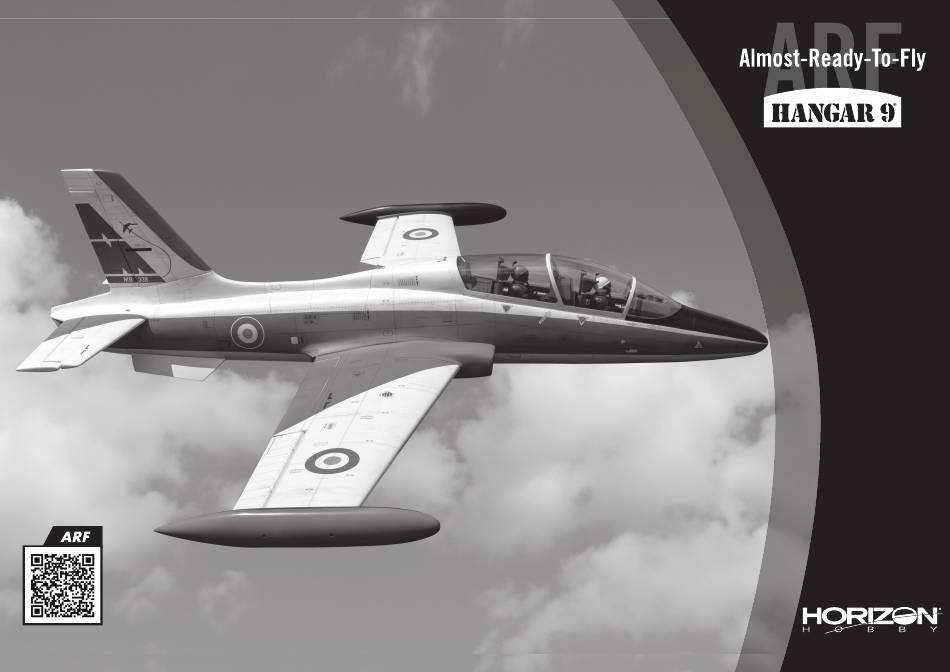

Aermacchi MB-339 60–86N Military
Scan the QR code and select the Manuals and Support quick links from the product
page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
HAN3390B
Updated 04/2024
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hangar 9 HAN3390B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Horizon Hobby Hangar 9 HAN3390B

Summary of Contents for Horizon Hobby Hangar 9 HAN3390B

  • Page 1 Aermacchi MB-339 60–86N Military Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.

  • Page 2: Notice

    Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS REPLACEMENT PARTS Notice ..................................2 Item # Description Meaning of Special Language ..........................2 HAN339001B Fuselage: Aermacchi MB-339 60-86N; Military Safety Warnings and Precautions ..........................2 HAN339002B Wing Set: Aermacchi MB-339 60-86N; Military Safe Operating Recommendations ...........................2 Before Starting Assembly ............................2 HAN339003B Fin and Rudder: Aermacchi MB-339 60-86N;...

  • Page 4: Required For Completion

    REQUIRED FOR COMPLETION TOOLS REQUIRED # Required Item # Description Description DUB674 Super Strength Standard Servo Arms: JR Side cutters DUB675 Super Strength Standard Servo Arms: HRC Square SPMA3002 Heavy-Duty Servo Extension 9-inch Tap handle SPMA3003 Heavy-Duty Servo Extension 12-inch Tie wraps SPMA3004 Heavy-Duty Servo Extension 18-inch...

  • Page 5: Flap Hinging

    FLAP HINGING Remove the fl ap and fl ap hinges from the wing panel.  The hinges are not glued to the wing or flap.  Optional: Apply a piece of white covering for a more finished appearance. Use a hobby knife and covering iron to seal the covering into Remove the fl...

  • Page 6: Aileron Control Horn And Hinging

    10. Use a paper towel and isopropyl alcohol to remove any 15. Test fi t the aileron control horn. They should fi t completely excess adhesive. Use low-tack tape to hold the fl ap in into the slot as shown. If they don’t fi t, use a fi le to enlarge position until the adhesive fully cures.

  • Page 7: Aileron Servo Installation

    20. Slide the control horn base on the bottom of the control horn 25. Fit the assembly into the aileron. Use a paper towel and assembly. isopropyl alcohol to remove any excess epoxy. Allow the epoxy to cure, then remove the tape. 21.
  • Page 8 30. Remove the servo and use a pin vise with a 1/16-inch 35. Secure a 12-inch (300mm) servo extension to the servo lead (1.5mm) drill bit to drill the four servo mounting holes. using a Servo Connector Clip (SPMA3054). 31. Thread a servo mounting screw into each hole, then remove 36.

  • Page 9: Flap Servo Installation

    40. Use a #1 Phillips screwdriver to thread an M2 x 8 self-tapping 45. Attach the ball end to the control horn, then the clevis to the screw into each of the holes. Remove the screws before servo arm. With the radio system on and the aileron servo proceeding.
  • Page 10 50. Place the fl ap servo into position with the output forward. Use 54. Center the servo using the radio system. Place the servo arm side cutters to remove the excess servo arm extending out of on the servo so it is one spline toward the trailing edge of the the servo opening.
  • Page 11 59. Place the horn aside. Use a 1/16-inch (1.5mm) drill bit to drill 64. Adjust the linkage for the mid fl ap position of 1 inch (25mm). the two holes for the fl ap control horn mounting screws.  Once adjusted, secure the servo arm to the servo using the hardware included with the servo.

  • Page 12: Elevator Hinging

    67. Attach the servo cover to the wing using four M2 x 8mm self- 72. Install the control horn for the rudder using the techniques tapping screws. used for the aileron control horn. ELEVATOR HINGING 73. When installing the rudder hinges, note that the bottom hinge has been shortened to fi...

  • Page 13: Elevator Servo Installation

    77. Assemble the rudder servo linkage. Use a 35mm threaded 82. Use a hobby knife or sandpaper to sand a slight taper on each rod and adjust the linkage to an overall length of 65mm. of the plugs on the leads (included with the retract module) Adjust the length of the linkage as necessary to center the that will connect to the receiver to the retract module.

  • Page 14: Nose Gear Retract Installation

    87. Secure the retract in the wing using the four screws prepared 92. Snap the ball on the steering arm of the retract. Center the in the previous step and a 3mm hex wrench. steering servo and adjust the length of the linkage to center the nose gear.

  • Page 15: Fuel Tank Assembly

    97. The retract module can be mounted forward of the aft edge 102. Slide a long tube and a short tube through the rubber stopper. of the nose section. Make sure access to the connecting bolts (The center hole is for the screw that secures the assembly in are not blocked.
  • Page 16 107. Use a wire tie to secure the fuel line to the brass fuel line. 112. Mount the fuel tank tray in the fuselage from the bottom using the four knurled screws. 108. Use a wire tie to secure the fuel line to the clunk. 113.

  • Page 17: Elevator And Rudder Extension Installation

    117. Remove the covering for the fi ll and vent fi ttings using a 122. Use the string to pull the extensions through the sleeve. Be hobby knife and #11 blade. Mount the fi ttings and connect careful not to break the string. the lines from the tank.

  • Page 18: Fin Installation

    127. Space the exhaust tube equally between the sides of the 132. Mix 1/2 ounce (15ml) of 30-minute epoxy. Use an epoxy fuselage. Secure the tube using four M3 x 12 self-tapping brush to apply epoxy in the tubes in the fuselage for the fi n screws.

  • Page 19: Joining The Fuselage

    JOINING THE FUSELAGE 142. Place the canopy hatch in position on the fuselage. 137. Slide the four fuselage joining tubes into the front half of the fuselage. 138. Prepare the fi ve screws that secure the forward fuselage to WING INSTALLATION the rear fuselage by sliding a tapered washer on an M4 x 20 143.

  • Page 20: Intake Installation

    147. Connect the leads for the retract and brake inside the 151. Attach the tip tank using the screws and a 3mm hex wrench. fuselage. INTAKE INSTALLATION 152. Use a hobby knife and #11 blade to remove the covering for the VOR blade antenna in the fi...

  • Page 21: Center Of Gravity

    CENTER OF GRAVITY CONTROL THROWS An important part of preparing the aircraft for fl ight is properly balancing the model. The Center of Gravity range Turn on the transmitter and receiver of your model. Check the movement of the rudder using the transmitter. supplied here is a guideline based on testing.

  • Page 22: Mixing

    (iii) modifi cation of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product With full fl ap set at 2 inches (57mm), mix 3/16-inch (5mm) of down elevator.

  • Page 23: Warranty And Service Contact Information

    Union D 22885 Barsbüttel, Germany Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support offi ce.

  • Page 24: Academy Of Model Aeronautics National Model Aircraft Safety Code

    ACADEMY OF MODEL AERONAUTICS NATIONAL MODEL AIRCRAFT SAFETY CODE BUILDING NOTES Effective January 1, 2018 A model aircraft is a non-human-carrying device capable of sustained fl ight within visual line of sight of the pilot or spotter(s). It may not exceed limitations of this code and is intended exclusively for sport, recreation, education and/or competition.
  • Page 25 (565 mm) 84 in (2133 mm) EN Remove ventral fi ns for transport DE Stabilisierungsfl osse zum Transport entfernen 7 in FR Retirez les dérives ventrales pour le transport (178 mm) IT Rimuovere le pinne ventrali per il trasporto (248 mm) SPECIFICATIONS •...
  • Page 27 Aermacchi MB-339...
  • Page 28 © 2024 Horizon Hobby, LLC. Hangar 9, AS3X, Avian, IC3, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are the property of their respective owners.
