Operating Instructions & Parts Manual
Air/Manual Hydraulic Bottle Jacks
Model
18126A
18206A
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
Models 18126A & 18206A
15 Viewtech Place, Rowville 3178 VIC Australia
Working Load Limit
12,000 KG
20,000 KG
SHINN FU AUSTRALIA PTY. LTD.
18126A, 18206A-M0_122019
Imported by:
Advertisement
Table of Contents
Related Manuals for Omega Lift Equipment 18126A
Summary of Contents for Omega Lift Equipment 18126A
- Page 1 12,000 KG 18206A 20,000 KG Models 18126A & 18206A This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
-
Page 2: Safety And General Information
SAFETY AND GENERAL INFORMATION Save these instructions. For your safety, read, understand, and follow the information provided with and on this device before using. The owner and/or operator shall have an understanding of the device, its operating characteristics and safety operating instructions before operating the equipment. The owner and/or operator shall be aware that use and repair of this product may require special skills and knowledge. -
Page 3: Specifications

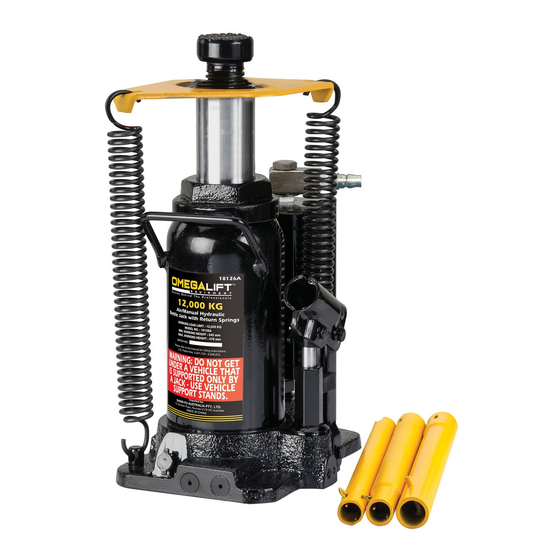

52 mm 245 mm 478 mm 153 mm 17.6 kg Lift Control Valve Saddle Air Vent Screw/Filler Plug Air Hose (ref. Parts illustration for location) Air Motor Handle Carry Handle Release Valve Handle Sleeve Figure 1 - 18126A & 18206A Nomenclature... -
Page 4: Operation
OPERATION Raising the Ram Plunger 1. Assemble handle, ensure that spring clips align with slots. 2. Place vehicle in park, with emergency brake on and wheel securely chocked to prevent inadvertent vehicle movement. 4. Verify lift point, center jack saddle under lift point. 5. -
Page 5: Maintenance
MAINTENANCE NOTICE: potential for sudden and immediate loss of load. Premium hydraulic jack oil is recommended. Adding oil 1. With ram plunger fully lowered and pump piston fully depressed, set jack in its upright, level position. Remove Changing oil NOTICE: Dispose of hydraulic oil in accordance with local environmental regulations. 4. -
Page 6: Replacement Parts
When ordering parts, give Model number, serial number and parts description. Call or write for current pricing: SHINN FU AUSTRALIA PTY. LTD., 15 Viewtech Place, Rowville 3178 VIC Australia, E-mail: sales@sfaa.com.au, Phone: (03) 9755 8277. Figure 2 - Model 18126A & 18206A Replacement Parts Illustration... - Page 7 Replacement Parts List for Models 18126A & 18206A Item Part No. for 18126A Part No. for 18206A Description A240-10002-000 A200-10003-000 Cover A200-10002-000 A200-10002-000 Extension Spring A200-10004-000 A200-10004-000 Screw O-ring Gasket 5905-00100-200* G62S-03301-000* Air Vent Screw/Filler Plug B12A-11000-000 B20A-11000-000 Reservoir Assy...
- Page 8 ONE YEAR LIMITED WARRANTY This product is covered by an express warranty for 12 months from the date of purchase by the original purchaser. Subject to the conditions of this warranty Shinn Fu Australia Pty Ltd or its authorised repair agents will replace the product or perform necessary service on the product without charge for parts or labour if the product is found to be faulty within the warranty period.
