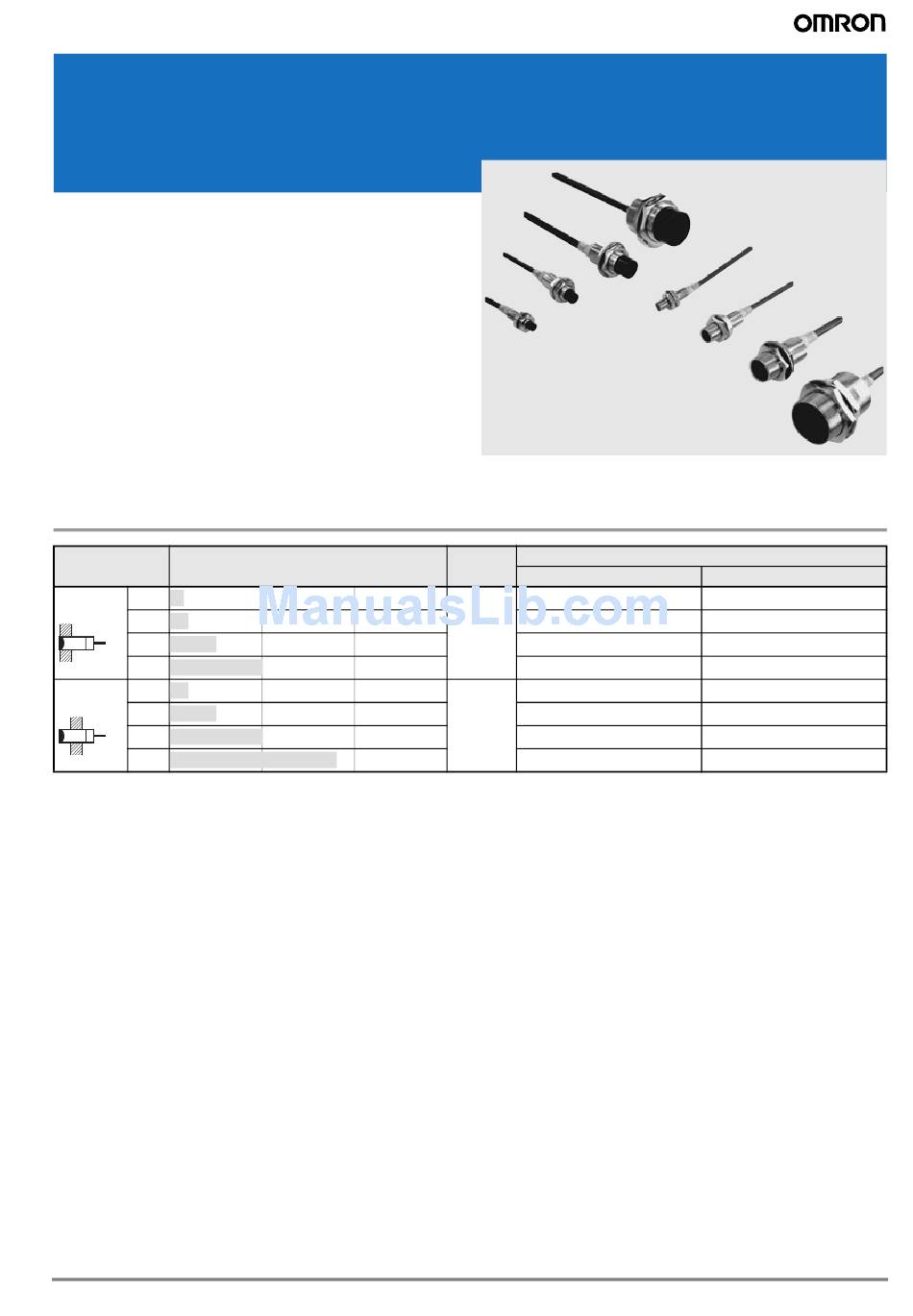

Cylindrical Proximity Sensor
E2AG
• Highest value-performance ratio for standard applications
• Shielded and unshielded models with standard sensing range
Ordering information
Appearance
M8
1.5 mm
Shielded
M12
2 mm
M18
5 mm
M30
M8
2 mm
Unshielded
M12
5 mm
M18
M30
Note: Add the cable length to the model number (example: E2AG-M12KS02-WP-B1 2M).
E2AG
Sensing distance
10 mm
10 mm
18 mm
Output
Operation mode NO
E2AG-S08KS01-WP-B1
E2AG-M12KS02-WP-B1
PNP
E2AG-M18KS05-WS-B1
E2AG-M30KS10-WS-B1
E2AG-S08KN02-WP-B1
E2AG-M12KN05-WP-B1
PNP
E2AG-M18KN10-WS-B1
E2AG-M30KN18-WS-B1
Type
Operation mode NC
E2AG-S08KS01-WP-B2
E2AG-M12KS02-WP-B2
E2AG-M18KS05-WS-B2
E2AG-M30KS10-WS-B2
E2AG-S08KN02-WP-B2
E2AG-M12KN05-WP-B2
E2AG-M18KN10-WS-B2
E2AG-M30KN18-WS-B2
1
Advertisement
Table of Contents
Related Manuals for Omron E2AG
Summary of Contents for Omron E2AG
- Page 1 E2AG-M12KS02-WP-B1 E2AG-M12KS02-WP-B2 5 mm E2AG-M18KS05-WS-B1 E2AG-M18KS05-WS-B2 10 mm E2AG-M30KS10-WS-B1 E2AG-M30KS10-WS-B2 2 mm E2AG-S08KN02-WP-B1 E2AG-S08KN02-WP-B2 Unshielded 5 mm E2AG-M12KN05-WP-B1 E2AG-M12KN05-WP-B2 10 mm E2AG-M18KN10-WS-B1 E2AG-M18KN10-WS-B2 18 mm E2AG-M30KN18-WS-B1 E2AG-M30KN18-WS-B2 Note: Add the cable length to the model number (example: E2AG-M12KS02-WP-B1 2M). E2AG...
-
Page 2: Model Number Legend
Model Number Legend E2AG-@@@@@-@-@@-@ 1 2 3 4 5 6 7 8 9 1. Housing shape and material 5. Sensing distance Cylindrical, metric threaded, brass Numeral: Sensing distance, e.g. 02=2 mm,10=10 mm Cylindrical, metric threaded, stainless steel (only M8) Exceptional case: 01=1.5 mm 2. -
Page 3: Specifications
Stainless steel (SUS303) Nickel plated brass Sensing surface The response frequency is an average value. Measurement conditions are as follows:standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance. E2AG... -
Page 4: Engineering Data (Typical)
S08KS01 S08KS01 -@-C/B@ -?-C/B? -?-C/B? -@-C/B@ Distance Distance Distance Distance Y (mm) Y (mm) Y (mm) Y (mm) Influence of sensing object size and material DC 3-wire models/shielded E2AG-S08KS01-@-C/B@ E2AG-M12KS02-@-C/B@ Iron Stainless steel Iron Stainless steel Brass Brass Aluminum Aluminum... - Page 5 DC 3-wire models/unshielded E2AG-S08KN02-@-C/B@ E2AG-M12KN05-@-C/B@ Iron Iron Stainless steel Stainless steel Brass Aluminum Brass Copper Aluminum Side length of sensing object d (mm) Side length of sensing object d (mm) E2AG-M18KN10-@-C/B@ E2AG-M30KN18-@-C/B@ Iron Iron Stainless Stainless steel steel Brass Brass Aluminum Aluminum...
- Page 6 2-clamping nuts toothed washer toothed washer *1 PVC round insulated cable 3-wire dia-4 (cross section of conductor: 0.3mm²,insulator diameter: φ1.3mm)standard 2m cable. *1 PVC round insulated cable 3-wire dia-4 (cross section of conductor: 0.3mm²,insulator diameter: φ1.3mm)standard 2m cable. Fig. C E2AG-M12KS02-WP-B Fig.
-
Page 7: Output Circuit
Power supply voltage Incorrect connection Do not use a voltage which exceeds the range of the rated voltage. Ensure that the power suppy polarity and other wiring is correct, oth- Applying a voltage that is higher than the rated voltage or using an erwise incorrect wiring may cause explosion or burning. - Page 8 Cat. No. E61E-EN-01 In the interest of product improvement, specifications are subject to change without notice. Cylindrical Proximity Sensor...
