User Guide

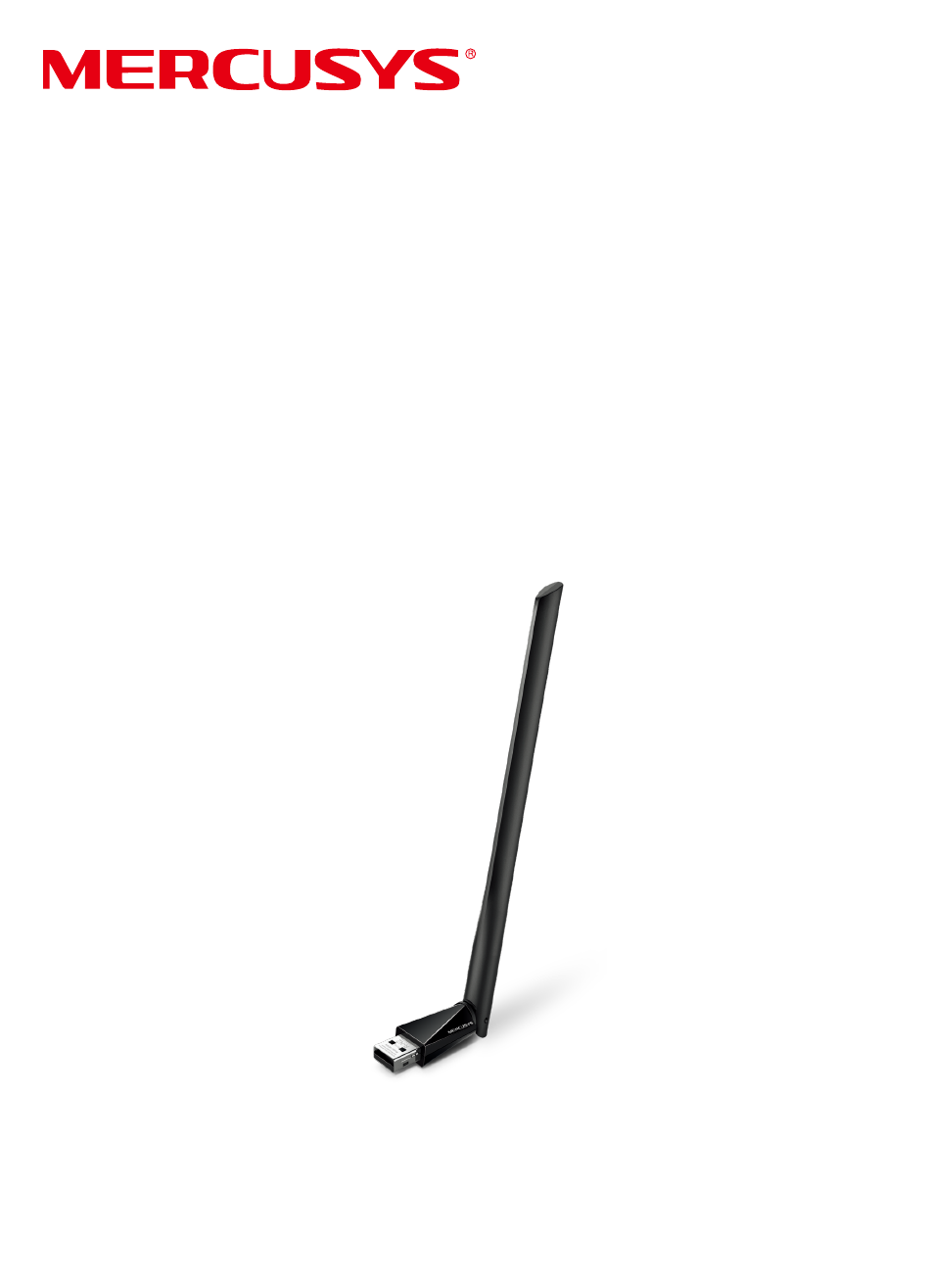

AC1300 High Gain Wireless Dual Band USB Adapter
REV1.0.0
1910080110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA30H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mercusys MA30H

Summary of Contents for Mercusys MA30H

  • Page 1 User Guide AC1300 High Gain Wireless Dual Band USB Adapter REV1.0.0 1910080110...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of MERCUSYS TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from MERCUSYS TECHNOLOGIES CO., LIMITED.
  • Page 3 5470 MHz -5725 MHz: 20dBm EU declaration of conformity MERCUSYS hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011/65/EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.mercusys.com/support/ce.
  • Page 4 AT BE BG CH CY CZ DE EE EL ES FR HR HU LT LU LV MT NO PL PT RO SE SI SK UK(NI) Attention: This device may only be used indoors in Great Britain. Korea Warning Statements 당해 무선설비는 운용중 전파혼신 가능성이 있음 . NCC Notice 注意！...
  • Page 5 ○ ○ ○ ○ ○ ○ 外殼 ○ ○ ○ ○ ○ ○ 天線 ○ ○ ○ ○ ○ ○ 其他及其 − ○ ○ ○ ○ ○ 配件 備考1.“超出0.1wt%”及“超出0.01wt%”系指限用物質之百分比含量超出百分比含量基準值。 備考2. “○”系指該項限用物質之百分比含量未超出百分比含量基準值。 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам...
  • Page 6 Explanation of the symbols on the product label Symbols may vary from products. Symbol Explanation Class II equipment Class II equipment with functional earthing Alternating current Direct current Polarity of d.c. power connector Indoor use only Dangerous voltage Caution, risk of electric shock Energy efficiency Marking Protective earth Earth...
  • Page 7 Stand-by “ON”/”OFF” (push-push) Fuse Fuse is used in neutral N RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

  • Page 8: Table Of Contents

    CONTENTS Conventions ....................... 01 Chapter 1 Introduction ..................02 1.1 Product Overview ......................02 1.2 Features ..........................02 1.3 LED Status ........................... 02 Chapter 2 Installation Guide ................03 2.1 Hardware Connection ...................... 03 2.2 Driver Installation ......................03 Chapter 3 Connect to a Wireless Network ............05 Chapter 4 Uninstall Driver ..................

  • Page 9: Conventions

    Conventions The Adapter or MA30H, or device mentioned in this User Guide stands for MA30H AC1300 High Gain Wireless Dual Band USB Adapter without any explanations. Note: Features of the adapter may vary by model and driver version. All images, steps, and descriptions in this guide are only examples and may not reflect your actual adapter experience.

  • Page 10: Chapter 1 Introduction

    Chapter 1  Introduction Chapter 1 Introduction Product Overview MA30H receives Wi-Fi signals on two separate bands and has a speed up to 867 Mbps (5 GHz)+ 400 Mbps (2.4 GHz). † A high gain antenna reaches your router from farther with more precise directional range, sustaining faster and more stable wireless connections.

  • Page 11: Chapter 2 Installation Guide

    This adatper suppurts internal driver installation, follow the steps below to install the driver: a. Go to My Computer or This PC. b. Find out Mercusys disk then run the SetupInstall.exe to start driver installation. Note: Ǵ If you cannot find the Mercusys disk, download the driver at www.mercusys.com/support.
  • Page 12 Ǵ If an unknown publisher message pops up, select Yes to continue. Ǵ If Windows User Account Control requires admin credentials, type user name and password of your Windows administrator account. Ǵ For more support for driver installation, refer to https://www.mercusys.com/en/faq-817.

  • Page 13: Chapter 3 Connect To A Wireless Network

    Chapter 3  Connect to a Wireless Network Chapter 3 Connect to a Wireless Network With both the hardware and software successfully installed into your computer, you can quickly connect to a wireless network via Windows wireless utility. 1. Click the wireless icon on the taskbar. Select the wireless network you want to join and then click Connect.

  • Page 14: Chapter 4 Uninstall Driver

    4. Restart your computer. For Version 2.0: Follow the appropriate instructions for your Windows operating system: Go to Start > All apps, and find the MERCUSYS application. Click Uninstall Mercusys MA30H Driver, then follow the on-screen instructions to complete the uninstallation.

  • Page 15: Appendix: Specifications

    Appendix: Specifications Appendix: Specifications Normal Interface USB 2.0 Standards IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz Antenna 1 External High Gain Antenna Status Security WPA/WPA2, WPA-PSK/ WPA2-PSK/WPA3-SAE Dimensions 2.28 × 0.66 × 6.83 in (57.8 × 16.8 × 173.4 mm) Operating System Windows 10/11 Up to 867 Mbps on 5 GHz...
