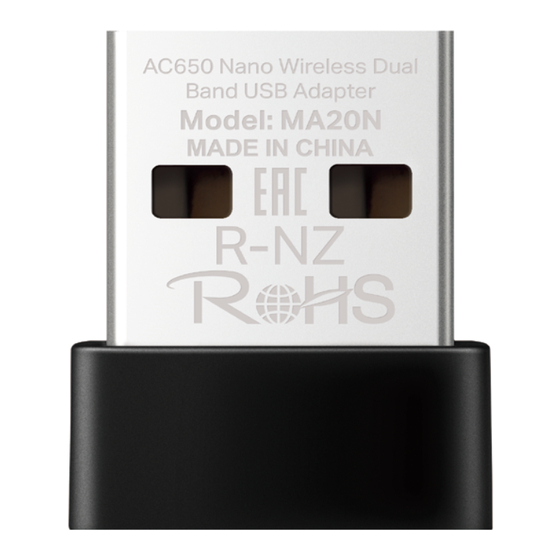

- Page 1 User Guide AC650 Nano Wireless Dual Band USB Adapter REV1.0.0 1910080122...
- Page 2 Specifications are subject to change without notice. is a registered trademark of MERCUSYS TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from MERCUSYS TECHNOLOGIES CO., LIMITED.
- Page 3 5470 MHz -5725 MHz: 23dBm EU declaration of conformity MERCUSYS hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011/65/EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.mercusys.com/support/ce.
- Page 4 AT BE BG CH CY CZ DE EE EL ES FR HR HU LT LU LV MT NO PL PT RO SE SI SK UK(NI) Attention: This device may only be used indoors in Great Britain. RF Exposure Information This device has been tested and meets the ICNIRP exposure guidelines and the European Standard EN 62209-2.
- Page 5 • 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。 限用物質含有情況標示聲明書 設備名稱：AC650 Nano Wireless Dual Band 型號（型式）：MA20N USB Adapter Type designation (Type) Equipment name 限用物質及其化學符號 產品元件 鉛 鎘 汞 六價鉻 多溴聯苯 多溴二苯醚 名稱 CrVI PBDE ○ ○ ○ ○ ○ ○ 外殼 ○ ○ ○ ○ ○ ○...
- Page 6 This product uses radios and other components that emit electromagnetic fields. Electromagnetic fields and magnets may interfere with pacemakers and other implanted medical devices. Always keep the product and its power adapter more than 15 cm (6 inches) away from any pacemakers or other implanted medical devices. If you suspect your product is interfering with your pacemaker or any other implanted medical device, turn off your product and consult your physician for information specific to your medical device.
- Page 7 Functional earthing Caution, hot surface Caution Operator’s manual Stand-by “ON”/”OFF” (push-push) Fuse Fuse is used in neutral N RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
-
Page 8: Table Of Contents
CONTENTS Conventions ....................... 01 Chapter 1 Introduction ..................02 1.1 Product Overview ......................02 1.2 Features ..........................02 Chapter 2 Installation Guide ................03 2.1 Hardware Connection ...................... 03 2.2 Driver Installation ......................03 Chapter 3 Connect to a Wireless Network ............04 Chapter 4 Uninstall Driver ..................05 Appendix: Specifications .................. -
Page 9: Conventions
Conventions The Adapter or MA20N, or device mentioned in this User Guide stands for AC650 Nano Wireless Dual Band USB Adapter without any explanations. Note: Features of the adapter may vary by model and driver version. All images, steps, and descriptions in this guide are only examples and may not reflect your actual adapter experience. -
Page 10: Chapter 1 Introduction
Chapter 1 Introduction Chapter 1 Introduction Product Overview MA20N receives Wi-Fi signals on two separate bands and has a speed up to 433Mbps (5 GHz)+ 200 Mbps (2.4 GHz). † With the built-in inbox driver by Windows operation systems, you just need to plug MA20N into the computer and then enjoy the fast wireless network in seconds. -
Page 11: Chapter 2 Installation Guide
If your operating system does not support this feature, follow the steps below: a. Download the driver or check the new release at www.mercusys.com/support. b. Unzip the downloaded folder and run the Setup.exe. c. Follow the instructions to complete the installation. -
Page 12: Chapter 3 Connect To A Wireless Network
Chapter 3 Connect to a Wireless Network Chapter 3 Connect to a Wireless Network With both the hardware and software successfully installed into your computer, you can quickly connect to a wireless network via Windows wireless utility. 1. Click the wireless icon on the taskbar. Select the wireless network you want to join and then click Connect. -
Page 13: Chapter 4 Uninstall Driver
You can remove the driver from Windows Control Panel: 1. Start Control Panel, go to Programs and Features, click Uninstall a program. 2. Find and uninstall the Mercusys program MERCUSYS MA20N Driver. 3. Follow the on-screen instructions to complete the uninstallation. -
Page 14: Appendix: Specifications
Appendix: Specifications Appendix: Specifications Normal Interface USB 2.0 Standards IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz Antenna 1 Internal Antenna Security WPA/PSK, WPA2-PSK/WPA3-SAE Dimensions 19.15 × 14.94× 7.19 mm (0.75× 0.59 × 0.28 in.) Operating System Windows 10/11 Up to 433 Mbps on 5 GHz Signal Rate Up to 200 Mbps on 2.4 GHz Safety &...
