STAND05 - CCTV
INSTALLATION GUIDE

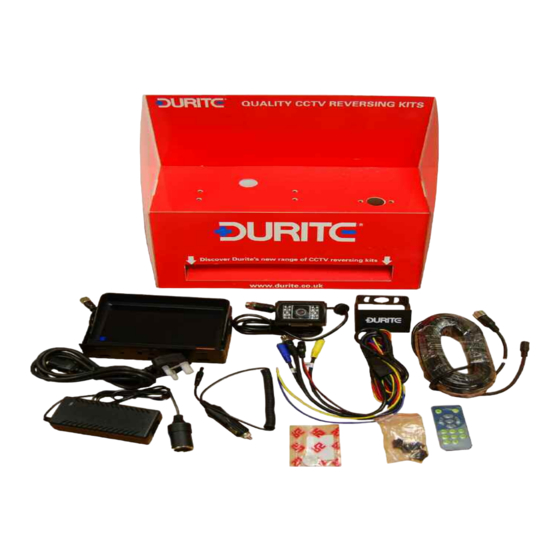

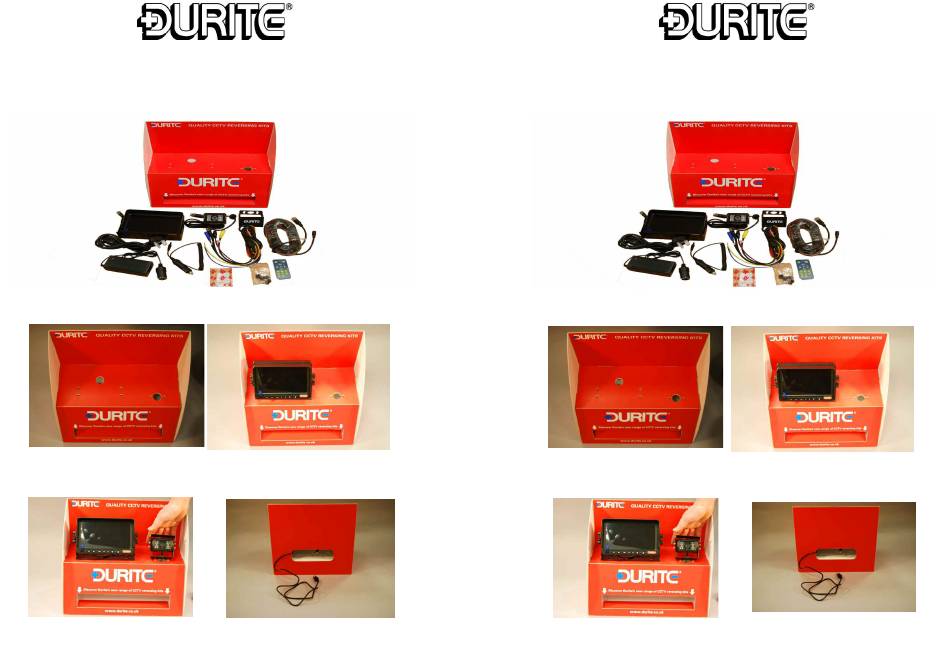

1. Check all parts required to assemble are there:
(STAND05, 0-649-07, 0-776-66, 6 x Plastic nuts and
bolts)
2. Note the fixing holes on top of the stand.
3. Place the monitor onto the stand and fix down using the plastic nuts and bolts provided.
4. Place the camera onto the stand and fix down using the plastic nuts and bolts provided.
5. Pull both cables through the centre holes and out of the back window of the stand.
www.durite.co.uk
1. Check all parts required to assemble are there:
(STAND05, 0-649-07, 0-776-66, 6 x Plastic nuts and
bolts)
2. Note the fixing holes on top of the stand.
3. Place the monitor onto the stand and fix down using the plastic nuts and bolts provided.
4. Place the camera onto the stand and fix down using the plastic nuts and bolts provided.
5. Pull both cables through the centre holes and out of the back window of the stand.
STAND05
STAND05 - CCTV
INSTALLATION GUIDE
www.durite.co.uk
STAND05
Advertisement
Related Manuals for Durite STAND05
Summary of Contents for Durite STAND05
- Page 1 INSTALLATION GUIDE INSTALLATION GUIDE 1. Check all parts required to assemble are there: 1. Check all parts required to assemble are there: (STAND05, 0-649-07, 0-776-66, 6 x Plastic nuts and (STAND05, 0-649-07, 0-776-66, 6 x Plastic nuts and bolts) bolts) 2.
- Page 2 6. Connect 12v cigarette socket to Durite power pack (0-649-07). Once connected put all items inside stand via the rear 6. Connect 12v cigarette socket to the Durite power pack (0-649-07). Once connected put all items inside stand via the rear win- dow leaving the 230v mains plug reachable for plugging in later.
