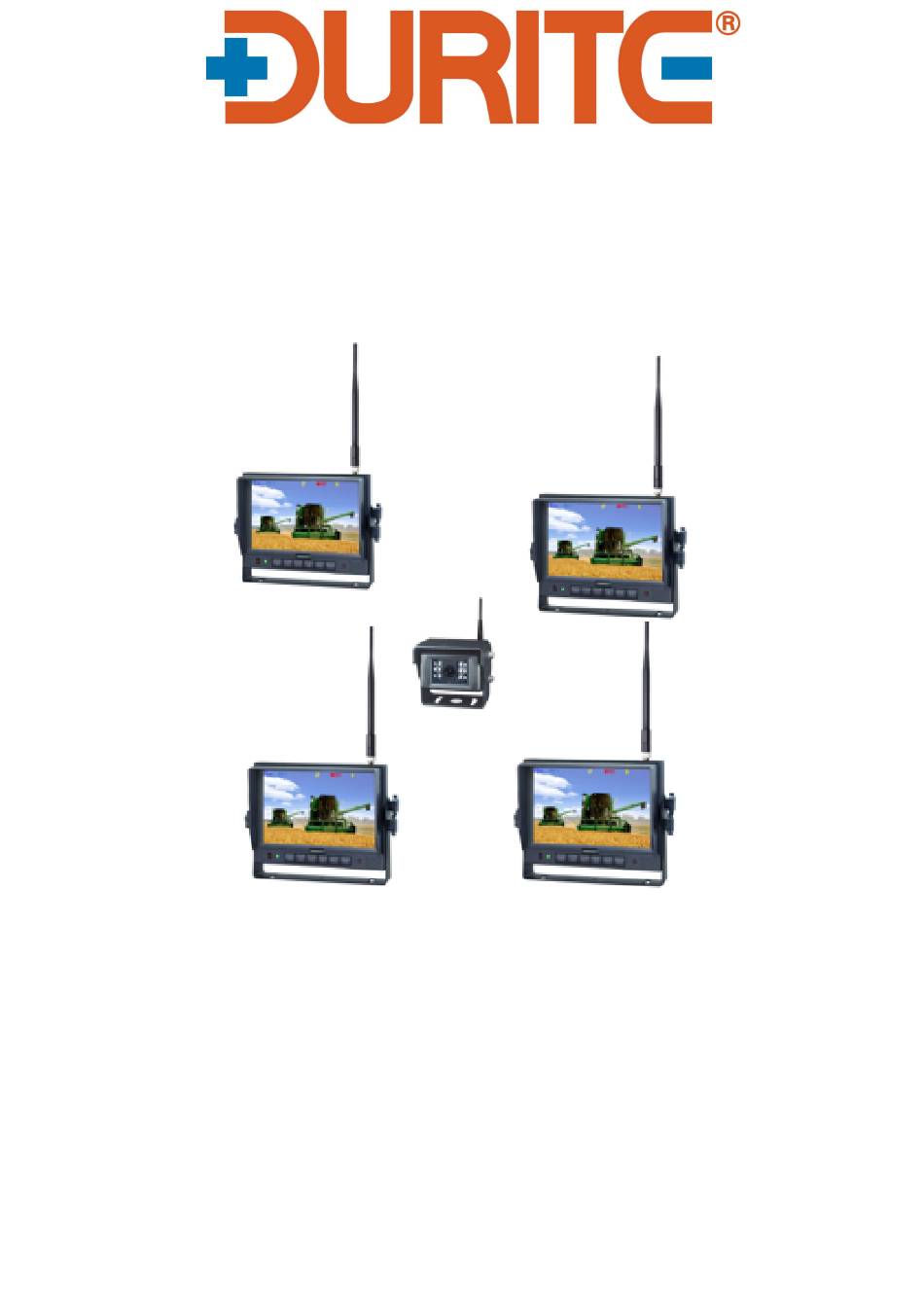

- Page 1 Operating Instructions - 0-775-05 12/24v 1T4R 1 Camera to 4 Monitors 2.4GHz 7″ Digital Wireless CCTV System Please read this manual thoroughly before operating the device, and keep it for future reference. V 1.2...
-
Page 2: Table Of Contents
Contents 1. Precautions....................... 1 2. Features........................3 3. Technical Specifications..................3 4. Accessories.......................4 5. Parts Identification....................5 6. Remote Control Operation..................6 7. Basic Operation......................8 8. Menu.......................... 9 9. Recording Time......................14 10. Installation Tips....................14 11. Troubleshooting....................15... -
Page 3: Precautions
1. Precautions ● Storage and Keeping Do not expose the monitor to excessive heat or cold. The storage temperature of this device is -30~+80℃, and the operating temperature is -20~+70 ℃. The humidity is Rh90%. Never use this device near a bathtub, wash basin, kitchen, damp basement, swimming pool or similar places. - Page 4 ● Maintenance 1. Remove all the cable connections from the monitor before cleaning the device. 2. Use a mild household detergent and clean the unit with a slightly damp, soft cloth. Never use strong solvents such as thinner or benzine, as they might damage the finish of the device.
-
Page 5: Features
2. Features TFT LCD monitor with wide angle view and high resolution display. Support 1T1R \ 1T2R \ 1T3R \ 1T4R. NORMAL, MIRROR, FLIP and MIR-FLIP viewing available. Support recording in AVI signal format. Auto dim function available. Full-function remote control. 1 wireless camera input. -
Page 6: Accessories
4. Accessories U-Support Bracket Center Mount Bracket Sun Shield Power cable Angle Adjustment Screws IR Remote control Special Notice Accessory supply may be different for different application. -
Page 7: Parts Identification
5. Parts Identification Digital Color LCD screen Menu Power indicator Remote control sensor Loudspeaker Light level sensor Press OK button to enter Power switch Volume decrease Volume increase menu item or save user settings. Press OK button - shortcut for start/stop recording. -
Page 8: Remote Control Operation
6. Remote Control Operation Press to turn on/off the Press to select MUTE monitor or enable sound Press to show menu or Press OK button to enter menu item or save user exit menu settings. Press OK button - shortcut for start/stop recording. - Page 9 ● MUTE(Mute) Press to select MUTE or enable sound ● POWER(Power switch) Press to turn on/off the monitor ● OK Press OK button to enter menu item or save user settings. Press OK button - shortcut for start/stop recording ● MENU Press to show menu or exit menu ●...
-
Page 10: Basic Operation
7. Basic Operation 7.1 Installation of Center Mounting Bracket: ①Adjust monitor level by sliding the support to the desired height. ②Adjust the angle of the monitor and tighten the knob on the center mounting bracket. Support attaching piece Knob 7.2.Installation of U-support Bracket Camera Battery DC/ 12V... -
Page 11: Menu
Menu ● Press MENU to display the following options and settings: ● Adjust PICTURE and MIR-FLIP only on RX1. RX2/3/4 setting will also be changed. 1. PICTURE 4. RECORD 2. MIR-FLIP 5. PLAY SYSTEM 6. PAIRING RX2/RX3/RX4 (1) Press to select PICTURE. Press OK to enter. RX2/RX3/RX4 ... - Page 12 menu. (2) Press to select MIR-FLIP. Press OK to enter. Press to select NORMAL / MIRROR / MIR-FLIP / FLIP. Press MENU return to main menu (3) Press to select SYSTEM, Press OK to enter . TIME：Press to select TIME. Press OK to set. Press to adjust.
- Page 13 ELETRONIC DISTANCE LABEL: Press to select ELETRONIC DISTANCE LABEL. Press OK to enter, press to select ON/OFF to open or close the electronic distance label. When it is on, the electronic distance label will be Displayed. (4) Press to select RECORD, Press OK to enter. ...
- Page 14 (5) Press to select PLAY, Press OK enter . Press to select DATE , Press OK to enter. Press to select TIME & CHANNEL, Press OK to enter.
- Page 15 (6) Press to select PAIRING, then press OK to enter.Or Press OK for 3 seconds to enter PAIRING. Manual pairing: 1. Press pairing button on the camera for 5 seconds to clear historical pairing data. 2. Select a monitor to pair. Select PAIRING in monitor menu and press OK button or press OK button on monitor for 3 seconds.
-
Page 16: Recording Time
9. Recording Time With Micro SD cards in different capacities, please refer to the table below for recording time under 2 different image modes. This table is for reference only. Data may vary under different environments. Micro SD 128G MODE SINGLE 110h 220h... -
Page 17: Troubleshooting
11. Troubleshooting The symptoms described below do not necessarily mean a failure within the display. Please check the following items before you initiate request for repair. Symptoms Possible Causes/Solutions Improper connection of automobile adapter. Use of un-authorized power supply. No picture, no sound Power switch is on OFF position.
