TECHNICAL SPECIFICATIONS
Call 01255 555200
Email info@durite.co.uk
Visit www.durite.co.uk
Image for illustration purpose. Actual product might differ slightly.
O-775-01 CCTV 7" Quad Digital Wireless System

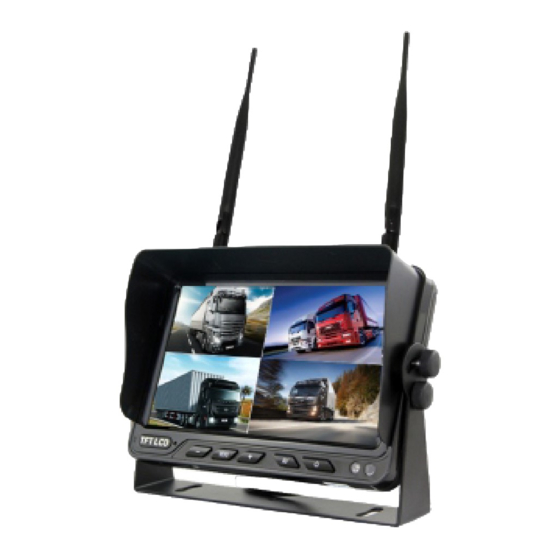

Durite 4-Channel wireless reversing camera system, includes 7" Colour TFT LCD monitor & 1 rear view CMOS
Camera. Suitable for 12V/24V applications. High resolution monitor and bracket is suitable for most cabins and
ensures robust installation on all truck sizes and industrial vehicles. Colour camera protected to IP68. Supplied with
remote control. 3 additional cameras can be used with this kit. E Marked.
THE TRUSTED QUALITY BRAND FOR PROFESSIONALS
Advertisement
Table of Contents
Related Manuals for Durite O-775-01
Summary of Contents for Durite O-775-01
- Page 1 O-775-01 CCTV 7” Quad Digital Wireless System Durite 4-Channel wireless reversing camera system, includes 7” Colour TFT LCD monitor & 1 rear view CMOS Camera. Suitable for 12V/24V applications. High resolution monitor and bracket is suitable for most cabins and ensures robust installation on all truck sizes and industrial vehicles.
- Page 2 WARNINGS Before using this unit please read these instructions carefully. Take special care to follow the warn- ings indicated on the unit itself as well as the safety suggestions listed below. Keep these instruc- tions for future reference. The vehicle safety vision system is designed to be used with, not instead of other viewing aids in your vehicle.
- Page 3 WIRING DIAGRAM...
- Page 4 REMOTE CONTROL DIAGRAM INSTALLATION Fix the U Bracket using the screw provided. Insert the monitor into the bracket, adjust the angle to preference and fix in place using the locking screws. The monitor can be adjusted 30° forwards and backwards. Select the desired angle for optimal viewing.
- Page 5 MENU Menu can only be accessed under single channel operation. Press M to display the following op- tions and setting: 1. PAIRING 2. PICTURE 3. MIRROR-FILP 4. CAMERA SETUP 5. SYSTEM Press + or - to select PAIRING and then press AV to enter. Auto Pairing: 1.
- Page 6 Press + or - to select CAM-SETUP, then press AV to select. Press + or - to select CAM1/CAM2/CAM3/CAM4/SCANTIME. Then press AV to enter the setting accordingly. When the icon turns red, pres + or - on menu for selection decreasing or adding. Press M to exit the menu. At the sub-menu, press M to return to the main menu.
- Page 7 MENU (continued) Press + or - to select PICTURE and then press AV to enter the sub-menu. Press + or - to select BRIGHTNESS, CONTRAST, HUE OR VOLUME and then press AV to enter the setting. Once the icons turn red they can be adjusted. Press + or - to adjust values up or down. Press M to exit the menu.
- Page 8 TECHNICAL SPECIFICATIONS Call 01255 555200 Email info@durite.co.uk Visit www.durite.co.uk TECHNICAL SPECIFICATIONS Type 7” Quad Digital Wireless CCTV System Resolution 800 x RGB x 480 Contrast 500:1 Brightness 450 cd/m2 View Angle U:60/D:70,R/L:70 Aspect Ratio 16:9 Channels Operating Frequency 2400 - 2483.5MHz...
