Laguna Tools Turner Owner's Manual

Laguna Tools Turner Owner's Manual

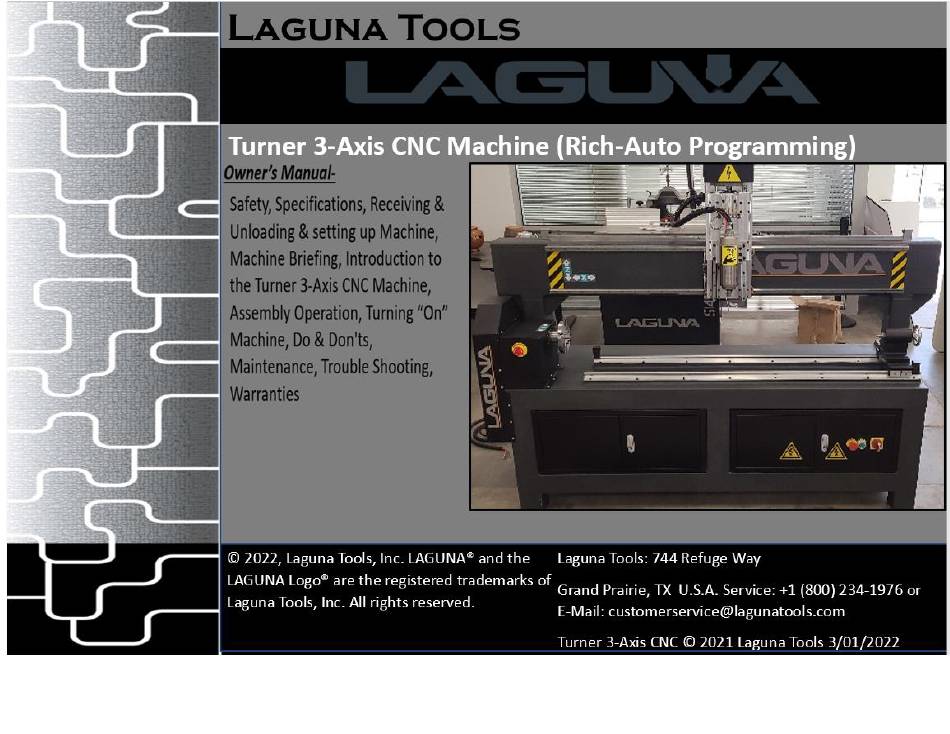

3-axis cnc machine (rich-auto programming)
Hide thumbs

Advertisement

Quick Links

Download this manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Turner and is the answer not in the manual?

Questions and answers

Related Manuals for Laguna Tools Turner

Summary of Contents for Laguna Tools Turner

  • Page 2 Turning “ON” Turner CNC Machine – Pg. 30-31. Engraving Machine Motion Control System (Rich Auto): 3-Axis Mechanical Carving Programing & Instructions- Pg. 33-110. The Do’s & Don’ts of the Turner CNC Machine- Pg. 111. Maintenance- Pg. 112 Trouble Shooting- Pg. 113-114...
  • Page 3 Safety Rules & Information- As with all machinery, there are certain hazards involved with the operation and use. Using it with caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. If you have any questions relative to the installation and operation, do not use the equipment until you have contacted your supplying distributor.
  • Page 4 Specification Sheet-...

  • Page 5: Receiving Your Machine

    Ensure that there is no visible damage to the packing, or the machine. You need to do this prior to the driver leaving. All damage must be noted on the delivery documents and signed by you, and the delivery driver. You must then contact the seller, [Laguna Tools] within 24 hours. Introduction to CNC Lathe- The CNC Lathe is designed to give you years of safe service.
  • Page 6 Unpacking the Machine: Unpacking the machine will require tin snips (to cut banding), a knife and an adjustable wrench. Follow the steps below: 1.) Using the tin snips, cut the banding that is securing the machine to the pallet (if fitted). 2.) WARNING: EXTREME CAUTION MUST BE USED BECAUSE THE BANDING CAN SPRING AND COULD CAUSE INJURY.
  • Page 7 Unloading Requirements- 1.) When the Crate containing your newly purchased Smartshop® MT is delivered, it will be delivered “Curbside,” in other words the Machine will be delivered in front of the Driveway of one’s Garage/Shop or Workspace. (****It is the Purchasers responsibility of moving the Machine into His or Hers Garage/Shop or Workspace.****) 2.) One should obtain a Crane: Hydraulic crane / crane (10T or above, 4 groups of 10T rings, 2 10M long, 10T straps).
  • Page 8 Unloading Requirements (Cont’d.)- c.) Wire Cutters. d.) Cordless Drill. 5.) Cut all straps only on the Crate.
  • Page 9 Laguna CNC Turner 3-Axis CNC Damage Notification- 1.)The Machines are thoroughly tested before leaving any or our Laguna Tools Facilities, but that does not mean the Machines would not experience any damage in transit. 2.) Before one Signs the Bill of Lading (See Example Below) when the Trucking Company drops off the Machine, visually inspect the entire crate and check for any damage.
  • Page 10 ***Note: Some of the photographs in the manual may not be identical to your machine, but the principle that they show is the same for your machine. Laguna Tools operates a constant improvement program, and changes to machines are ongoing.
  • Page 11 Series-Turner 3-Axis CNC Machine- Parts (Cont’d.) Bed: The bed of the machine consists of a heavy steel frame that supports linear bearing rods. The tail stock slides along the rods and can be clamped in any position to suit the job at hand.
  • Page 12 Series-Turner 3-Axis CNC Machine- Parts (Cont’d.) Caterpillar Track: The caterpillar track runs at the back of the lathe and contains all the electrical cables, and the motor water pipes. Electrical Cabinet(s): The Electrical Cabinets is located at the Back & Front of the lathe and contains all the control equipment.
  • Page 13 Series-Turner 3-Axis CNC Machine- Parts Linear Bearing Spindle Adjustment Rods Turner Lathe Lathe Spindle Chuck Drive...
  • Page 14 Series-Turner 3-Axis CNC Machine- Parts Cabinet Release Handle Electrical Primary Power Control Switch Cabinet Power Emergency Main Power Controls “On” Stop Button Rear Oil Reserve Button...
  • Page 15 Series-Turner 3-Axis CNC Machine- Parts Machine Data Plate: The Machine Data Plate is located at the back of the machine and contains all the machine information. Hand-held Controller: The handheld controller controls all functions of the lathe. Note: See Separate Manual for the Operation of the Handheld Controller.
  • Page 16 Machine Briefing & Special Features- Our CNC 3-Axis Turner can make incredibly detailed spindles. The resolution is 0.0003. Our CNC Turner is powered by a Liquid-Cooled 3HP spindle capable of running very long run times without overheating. The Turners use our Laguna Hand-Held Controller. The design software is not included.
  • Page 17 Machine Briefing & Special Features (Cont’d.)- Available Spindles- Length, Weight, Dimensions: 1.) 46″ Turner Shipping Weight: 1500 lbs. Shipping Dimensions (W x L x H): 42.3in x 49in x 43in 2.) 60″ Turner Shipping Weight: 1700 lbs. Shipping Dimensions (W x L x H): 60in x 60in x 60in 3.) 72″...
  • Page 18 Introduction to the CNC- The CNC is designed to give you years of safe service. Read this owner’s manual in its entirety before assembly or use. The advantage of the CNC machine is that it can, in most cases, fully machine the complete job without it being removed from the table so that you have finished parts of high accuracy that are repeatable.
  • Page 19 Assembly and Operation- Cleaning the machine Clean off any protection grease with WD40 or something similar. The machine has steel parts that if not protected will Rust, Lubricate with WD40 or Wax. Use 30W Motor Oil or Lithium White Grease lubricant or equivalent to lubricate the ball screws. Wipe off any excess to reduce dirt and dust acumination.
  • Page 20 Assembly and Operation-the Hand-Held Controller (Cont’d.)- Female Cable Port to CNC Turner Computer Connection Cable-Male Electrical Connections for the Machine- The main power cable and has no plug fitted, as it will be dependent on your installation. Ensure that when installing the electrical supply to the machine, 220V single phase is supplied.
  • Page 21 Assembly and Operation-Electrical Connections for the Machine (Cont’d.)- The submersible pump needs to be submerged in a minimum 5-gallon reservoir of water (the bigger the water tank the better). Never run the spindle without cooling, or the spindle will be damaged or destroyed.
  • Page 22 Assembly and Operation -Connecting the Water Pipes to the Machine (Cont’d.)- Note: Never run the motor without the cooling being connected, or the motor could be damaged. You will connect one tube to the water pump, and the other will be placed in the water container for the return water.
  • Page 23 Assembly and Operation -Connecting the Water Pipes to the Machine (Cont’d.)- Note (Cont’d.): Place the lid onto the container to keep dust and dirt out of the container. Check the container periodically, as the water will evaporate. Note: If the spindle is run without cooling, it could be damaged and fail. It is strongly suggested that the water pump is run for at least 5 minutes after the spindle is switched off to remove residual heat.
  • Page 24 Installing Router Bit- Installing the Router Bit in the Tool Holder Caution: Before changing or fitting the router bit, always disconnect the power to the machine. 1.) Select a router bit and its relevant collet. 2.) Fit the collet into the spindle nut. Press the collet into the spindle nut until it snaps into place.
  • Page 25 Installing Router Bit (Cont’d.)- Note: Use this process to install each of the router bits into the tool holders, being careful to use the correct collet size for each router bit. Note: Keep the collets clean and blow all dust out of the slots.
  • Page 26 Installing Router Bit (Cont’d.)- Tightening the Spindle Nut. Note: The router bit must not be fitted into the collet until the collet has been fitted into the spindle nut. With the router bit fitted into the collet, the collet cannot compress and snap into the spindle nut.
  • Page 27 Selecting the Correct Router Bit- Types of router bits There are 5-five basic types of Router Bits: Straight, Up-Shear, Down-Shear, Combination (also called “Compression”), and Form Tools (Vortex Tool or Amana, etc.). Straight Router Bits: These are the standard router bits that are commonly used with handheld routers and are readily available at home centers.
  • Page 28 Selecting the Correct Router Bit (Cont’d.) Down-Shear Router Bits: These bits are like the up shear but with an opposite spiral that tends to pack the chips into the kerf. These bits prevent chipping the material surface, especially with veneers or melamine surfaces. Combination (Compression) Router Bits: These bits combine the advantages of both up shear and down shear designs.
  • Page 29 Selecting the Correct Router Bit (Cont’d.) Form Router Bits: Form Router Bits typically are available in standard profiles such as round over, ogee, etc. Router bits that have a shape associated with them would be classified with this group.
  • Page 30 Note: The router head will move to the home position. Note: Home is a mechanical position that is a constant that is determined by switches on each of the axis. Turning “On” the Turner CNC Machine (Cont’d.)- X+ = Across (from left-to-right when standing in front of the machine).
  • Page 31 Turning on the Turner CNC Machine (Cont’d.)- By pressing HIGH LOW / 0 and MENU / - the display will change to AX=0, AY=0, and AZ=0. (Note: you cannot set an origin if the display is at AX, AY, AZ).
  • Page 32 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving- Cautions: 1.) Use of this product is strictly prohibited in the strong interference、 strong magnetic field environment. Operating ambient temperature 0-70 ℃, working environment humidity 0-90% (non-condensing). 2.) Insert U disk in the correct direction. Do not pull out 50-pin cable when system run. 3.) Perform processing U disk file process, do not pull out the U disk to prevent the interruption of data transmission.
  • Page 33 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- 11.) Graver is very sharp. Do not touch when it is running, to avoid injury; Do not use handkerchiefs, scarves contact it to prevent embroiled damage. Important Notice: The Company shall not be responsible for any loss caused by improper using or breaking the correct operating procedures.
  • Page 34 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- 2.) Multi I/O Point Control there is eight input and output signals in every basic I/O signal node Expansion I/O Nodes can be expanded to 32 input and output signals. 3.) Support the standard G-Code, PLT Format instructions;...
  • Page 35 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- 8.) Support adjusts speed ratio online. Users can adjust the speed ratio, to adjust the processing speed and empty running speed, speed ratio values from 0.1-1, Ascending or descending per 0.1 numerical.
  • Page 36 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- 15.) Processing with high-speed and smooth, support high subdivides, make sure processing with high accuracy and high speed. 16.) Unique in Chinese English to show double interface, can be realized in switching Chinese and English show online.
  • Page 37 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- 1.) Rich Auto System Composition- 1.1.) System composition Rich Auto Control System Contains the following parts: • A Hand-Held Motion Controller (Handle). • Line Adapter Board (Interface Board). • 50-Pin Data Transmission Cable. •...
  • Page 38 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- 1.2.) Description of Each Component- 1.2.1.) Handle- As shown below, including (6) Parts: 1.) LCD Screen: 128*64 resolution LCD Display, to display the machine motion, system settings and other information. 2.) Keyboard: Contains 16-Buttons to input system parameter information and operate the machine.
  • Page 39 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- 1.2.2) Interface Board- Including (5) Parts: Power Control Terminal 1.) 50-Pin Data Cable Port: Connect Handle with Interface Board. 2.) J7-Output Control Terminal: Including Spindle On/Off Signal, Work & Alarm Led Signal etc.. 3.) J8-Input Control Terminal: Including Machine Origin Detection Switch, Tool Setting, Driver Alarm, Hard Limit Switch, and E-Stop Signal.
  • Page 40 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- 1.2.4.) USB Communication Cable- • 1.3 Interface Board Shell Size- Scale: 1:1, Unit: mm...
  • Page 41 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- 2.) Handle Button Introduction- 2.1.) Button’s Introduction- Rich Auto Motion Control System defines 16-Buttons according to functional requirements. Each button has one or more functions under different work status.
  • Page 42 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- 2.2.) Usage Mode- Rich Auto Motion Control System provide 2 Modes of Button’s Operations, including One-Touch Button & Combination Button. • One-Touch Button: Press one button on handle. • Combination Button: Press two buttons at the same time to achieve the operation. The Operation Step: Press one main function button and meanwhile press a second accessibility button, and then release the two buttons at the same time to realize the combination button operation.
  • Page 43 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- List of Combination Buttons:...
  • Page 44 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- • 2.3 Detail Information for Buttons Function-...
  • Page 45 Engraving Machine Motion Control System (Rich-Auto) Programming: 3-Axis Mechanical Carving (Cont’d.)- 3.) Wiring Instructions- • 3.1.) Rich Auto Interface Board description Interface Board Schematic Diagram:...
  • Page 46 • 3.2.) Interface Board I/O Description-...
  • Page 47 • 3.2.) Interface Board I/O Description (Cont’d.)-...
  • Page 48 • 3.2.) Interface Board I/O Description (Cont’d.)-...
  • Page 49 • 3.2.) Interface Board I/O Description (Cont’d.)-...
  • Page 50 • 3.2.) Interface Board I/O Description (Cont’d.)-...
  • Page 51 • 3.3.) Hardware Wiring- Installation Requirements: Power (24V, 3A), it is better to add a filter to prevent the electric field interference. If origin detecting switch are different power supply type, the special testing switching power is needed, (24V origin detecting switch is the best choice). Rich Auto Motion Control System realizes its control through the connection between the interface board and CNC machine.
  • Page 52 Input Signal Terminal-...
  • Page 53 Input Signal Terminal (Cont’d.)-...
  • Page 54 Output Signal Terminal Servo Driver:...
  • Page 55 Servo Driver (Cont’d.):...
  • Page 56 Servo Driver (Cont’d.): 8 Status: Spindle Start---S1—Speed 1, S2—Speed 2, Sn—Speed n, when Spindle Stop, the Screen Displays Fn—the Speed before Spindle Stop. PS: FWD and DCM has Connected in Parallel in some inverters, please do not need to connect Y1 (S0) in such situations, you only need to connect DCM with GND of interface board, without having to reset the spindle gear.
  • Page 57 Servo Driver (Cont’d.):...
  • Page 58 • 3.4.) Commissioning of the Machine and Control System-...
  • Page 59 • 4.) Menu Description- • 4.1.) Menu Category- According to menu function, Rich Auto System menu divided into: MACHINE SETUP, AUTO PRO SETUP, SYSTEM SETUP, OPERATE FILE, VERSION VIEW. Every main menu has some submenus. • 4.2.) Menu Details- • 4.2.1.) Machine Setup- Users can set the parameters about machine hardware under ”Machine Setup.”...
  • Page 60 1.) Pulse Equiv. (Pulse Equivalent)- The number of pulses of the system needs to send when machine moves every 1mm. Unit: pulse/mm. 1.) Stepper Driver- Formula = Pulses per Revolution/Distance per Revolution, Pulses per Revolution Formula: (360 °/stepper angle)* Driver subdivision. Some Stepper drivers mark pulse number directly.
  • Page 61 Screw Drive (Cont’d.): Formula Description: Step Angle is the angle of the motor parameters, motor rotation step walk. Driver Subdivision: is the parameter set by the driver. Screw Pitch (Above Picture): The distance that the nut moves when the ball screw makes one rotation.
  • Page 62 Rack Drive: Formula Description: Step Angle is the angle of the motor parameters, motor rotation step walk. Driver Subdivision: Is the parameter set by the driver. Rack Module and Gear Teeth Number: Are gear parameters. rack module * gear teeth number*πequals the perimeter of the reference circle. Transmission Ratio: The speed ratio or angular velocity ratio of the capstan and the driven wheel.
  • Page 63 Setting: Enter “pulse equiv.,” cursor is in the X-Axis pulse equivalent position, Press to move cursor to where users want to modify. Press “ ”, input the new number, and press “ ” to save, cursor auto move to next line, the same operation to change, press “...
  • Page 64 2.) Table Size: Rich Auto System make the table size as the soft limit values, to prevent machine move over travel, machine size must be less than or equal to the value of the actual motion displacement machine. Setting: Enter “Table Size,”...
  • Page 65 4.) Home Setup (Cont’d.): Home Direction: Every axis movement direction when back home, this direction depends on the position where home switch is on the machine. If home switch installed in the positive direction, so home direction should be “positive” ,and vice versa. Setting: Enter “home dir,”...
  • Page 66 6.) Start Speed: Unit: mm/minute-The speed of axis started directly from standstill. Not starting from zero speed, but starting directly from a certain speed, so it can shorten the overall processing time, but do not set this speed too high. Set too high, it will cause the motor losing steps, jitter and even whistle;...
  • Page 67 8.) C.A.D. Thickness: Unit: mm- This thickness should input by actual, if it is bigger than the actual thickness, Z axis may cut too much; if smaller, Z axis cannot touch workpiece. This parameter can only take effect when user use auto tool setting function. 9.) Max.
  • Page 68 4.2.2.) Auto Pro Setup-...
  • Page 69 4.2.2.) Auto Pro Setup (Cont’d.)- 5.) Stop Statue:...
  • Page 70 6.) G-Code Setup:...
  • Page 71 7.) Pro-Attribute: 8.) Work Array: Set array parameter, including column count, Rowcount, Columnspace, Rowspace, Interval (unit: ms） Columnspace: File spacing of X direction Rowspace: File spacing of Y direction Total Processing times= columncount* Rowcount Interval: System default 0, it means no wait. During processing, if users need to change processing materials after completion of each processing, you need set time interval a negative number.
  • Page 72 8.) Work Array (Cont’d.): array processing, press any key to start the next array processing currently, if not press, system keep waiting. 4.2.3.) System Setup-...
  • Page 73 4.2.3.) System Setup (Cont’d.)-...
  • Page 74 4.2.3.) System Setup (Cont’d.)-...
  • Page 75 4.2.3.) System Setup (Cont’d.)- 11. Backup Data:...
  • Page 76 13. Trial Setting (Cont’d.):...
  • Page 77 4.2.4.) Operate File-...
  • Page 78 4.2.4.) Operate File (Cont’d.)- 5. Check Pro Time (Check Processing Time): Calculate processing time by system work speed, after reading G- Code, the screen will display the processing time, different work speed corresponding to different processing time. Operation Method: Press , enter “Check Pro Time”, press to select “Udisk/Internal/Recent File,”...
  • Page 79 4.2.5) Version View- Users can view information about the system hardware and software, including: • Update Version eg：P1.409/rz-xxxx/q10-82 • Product ID eg: A0020112 • Soft Version eg: A1.1936 • Emergency Version eg: A1.1920 • Soft type: 3-Axis carving • Hardware Type: Support 3-Inch Screen Flash Disk Mode 5.) Machine Operation- •...
  • Page 80 • 5.2 Import Processing Files- Before processing, generally we should import files. Rich Auto System has 2 ways for processing: U-Disk file processing, inner file processing. 1.) Directly import the processing file into U disk, then run the handle. 2.) Copy the process file to inner memory space via U-Disk. •...
  • Page 81 5.3.1.) Manual Operation Speed Switching and Adjusting- 1.) Speed Modes switching There are two speed modes: high speed and low speed. We can change mode by Press “ ”. The Speed Mode you choose will decide the processing speed. 2.) Speed Adjusting: In Manual Mode, Press “...
  • Page 82 5.3.2.) Manual Processing Mode- To meet different situation of manual movement, the system provides 3 kinds of Motion Modes: • Continue. • Step. • Distance. We can change mode by pressing and the bottom of screen will display what the current Manual Mode is.
  • Page 83 5.3.2.) Manual Processing Mode (Cont’d.)- 3.) Distance motion mode In this mode, it runs according to the setting of distance. Machine will move by the set distance when user press direction button Note: Grid unable to affect the distance motion mode. Machine will move by set distance, cannot move to grid point.
  • Page 84 5.3.3.) Manual Testing Input and Output (Cont’d.)- Press “ ”twice, the screen will display two rows of arrows which are defaults to all arrows are downwards “↓.” Upper arrows represent input signal: the former 4 numbers 0, 1, 2, 3 corresponding to X- zero, Y-zero, Z-zero, and tool setting gauge.
  • Page 85 5.3.4.) Manual Testing Input and Output- Including Machine Coordinate System Work Coordinate System. Machine coordinate system is fixed, the origin of coordinates is always a fixed position relative to the machine; Its coordinates is called mechanical values, the origin of coordinates is the origin of the machine or reference point.
  • Page 86 • 5.4.) Automatic Processing Operation- Auto processing refers to the system runs the file in U disk or inner storage space according to the instruction, it also called file processing. Before auto processing, user must set the machine tool parameters and all the system parameters correctly. Auto Processing Steps: 5.4.1.) Determine the Origin of the Workpiece- The origin coordinates of X, Y and Z in the processing program is the origin of the workpiece .
  • Page 87 5.4.2.) Choose Processing Files (Cont’d.)- Press to move the cursor and choose, press to enter the list, the screen will display three file name, choose the file by Pressing . Press to turn to the next page. Press to exit. 5.4.3.) Processing Parameters Setting- After choosing the processing file please Press , enter processing parameters setting, it...
  • Page 88 • 5.5.) During Processing Operations- 5.5.1.) Speed Ratio & Spindle Grade Adjusting- 1.) Adjust Speed- Ratio In process of processing, Press can directly change speed ratio, current speed= set speed * ratio, each push on the Speed Ratio will go up or down drop 0.1. Speed Ratio: max 1.0, min 0.1, the displayed speed will be corresponding to the changing of speed ratio, but time will not change.
  • Page 89 5.5.2.) Pause & Adjust Position (Cont’d.)- At this moment, the user is allowed to adjust the position of X, Y and Z-Axis. The system default motion mode is STEP. So that user can fine adjust each axis distance. Machine moves one low or high-speed grid distance every step.
  • Page 90 5.5.3.) Breakpoint Processing & Power Down Protection- 1.) Breakpoint Processing- If user presses during process of processing, the screen shows below: If we want to save breakpoint, Press , the screen displays break list (totally 8), 、 Press to choose the save position and then press to save, system auto go to standard interface.
  • Page 91 5.5.3.) Breakpoint Processing & Power Down Protection (Cont’d.)- If you want to go backwards from this breakpoint, Press and input the line No., and then Press , system will work from the new line number. 2.) Power off protection When there is a sudden power failure during processing, system will save current coordinate and parameters, while power restart, process continue.
  • Page 92 5.6.) Advanced Processing- Advanced processing is designed for some special requests, it contains Array Work, Resume Work, Tool Changing, Part Work, Calculate Bound, Mill Plane, Step Work File, Calculate Work Time, Find Break “NO.” The combination button is , shown below:...
  • Page 93 5.6.) Advanced Processing (Cont’d.)- 1.) Array Work- Steps are as below: 、 1.) Press to move cursor to the Array work, Press , Press to select different files list. 、 2.) Press to enter file list, then rest move the cursor to choose object file. 3.) Set processing parameters, also can modify the array parameters in this step, or you can go to “AUTO PRO SETUP, choose “Work Array”...
  • Page 94 5.6.) Advanced Processing (Cont’d.)- 3.) Tool Changing- It achieves manually change the tools at the position you set. Press to enter the setup and Press back to work origin. 4.) Part Work- Park work means user can select start line and stop line, so part of the processing file can be processed.
  • Page 95 5.) Calculate Bound- Calculate bound means user can check the size of processing, To avoid unnecessary waste of materials and processing errors. The steps are as below: 1.) Press to enter, then press to select file list. 2.) Press gets into the file list, and then press to choose file.
  • Page 96 6.) Mill Plane (Cont’d.)- 1.) Press to move cursor to choose the mill type. 2.) Press to enter the scan mill set, it includes, Scan Type, Width, Height, Diameter, Depth, Z- Step, T-Ratio. .3) Press to move cursor on the option which need modify, Press to choose mill type (X-Scan or Y-Scan), also Press this button to modify the parameters.
  • Page 97 7.) Calculate Work Time- Calculate the processing time according to the system processing speed. After pre-read processing file, the system will display total processing time. Different processing speed will correspond to different processing time. 8.) Find Break No- Look for position line number. If accidentally cutter break and user has not saved the break point, reboot system and replace the cutter.
  • Page 98 9.) Scale Work (Cont’d.)- Choose Processing file, input correct parameters: and then Press to start processing.
  • Page 99 • PS1. System Upgrade- Copy upgrade file to U -Disk and insert U disk into handle, File Format: Extension ******. PKG & shown as rz-xxxx. U-Disk Upgrad Method 1- ，and then select “System Setup,” Press ， 1.1.) Press to enter, Press select “Auto Upgrade.”...
  • Page 100 U-Disk Upgrade Method 2- 2.1.) Copy upgrade file to U-Disk and insert U-Disk into handle. 2.2.) Press , screen display: 2.3.) Repeat Method 2 Operation 1.2 & 1.3. • PS2. Operations of Handle Communicating with Computer- Users can copy file from computer to handle after “Product ID:A010XXXX &...
  • Page 101 • PS2. Operations of Handle Communicating with Computer (Cont’d.)- Operation Step: 1.) Press any two buttons at the same time (for example: 2.) Connect handle and computer by USB cable, it means that the handle is powered by computer, loosen the buttons after the power supply. 3.) Handle Screen Display：...
  • Page 102 • PS3. Common Problems and Troubleshooting- Solutions of the faults display on the screen- 1.) Indefinite Screen flicker or Automatically Restart Analysis and Solutions: • Power supply is insufficient. Check power supply if there are problems and change high-quality power supply to solve the problems. •...
  • Page 103 Faults in Practical Operation- 1.) The file size does not match the size of the actual set Analysis and solutions: • Pulse equivalent is wrong. • You do not select the right tool. 2.) The screen displays “beyond limit” when processing file Analysis and solutions: •...
  • Page 104 Faults in Practical Operation (Cont’d.)- 4.) Each time repeating the same processing file after backing to the machine origin ，Z axis depth is not the same Analysis and solutions: • Machining countertop is uneven or processing object not firmly fixed, re-milling countertop adjust the flatness.
  • Page 105 Faults in Practical Operation (Cont’d.)- 6.) Back to the machine origin, machine move to the reverse direction Analysis and Solutions： • The origin detection switch types do not match with the definition of the corresponding level. Modify the level. (Normally open type corresponds to a level defined the direction of the arrow down, normally closed type corresponds to the level defined arrow up).
  • Page 106 Faults in Practical Operation (Cont’d.)- 8.) Start automatic tool setting, the tool does not stop after touching feeler block Analysis and Solutions: • "Cutter" signal line connects "Cutter" terminal not well. • The "GND" terminal of interface board does not connect with spindle shell or connect not well. 9.) Handle LCD digital changes, the machine does not move Analysis and Solutions: If one axis is not moving, it may be a connection problem.
  • Page 107 Electrical Components and Wiring Problem- 1.) An axis or multi-axis only one-way movement after handle power-on Analysis and Solutions: • There is something wrong with the lines connect the interface board with the motor driver， check the connection. • Interface board is damaged. Replace the interface board. 3、 The motor driver is damaged. Replace the driver.
  • Page 108 Electrical Components and Wiring Problem (Cont’d.)- 4.) Screen is not bright after handle power-on, and connect the handle to computer by USB cable, the screen is also not bright Analysis and Solutions: • This phenomenon may be due to the handle shocked by external force or fall on the ground, causing the crystal processor damaged, Depot Repair.
  • Page 109 DO’S AND DON’TS on the Turner CNC Machine- 1.) DO verify water level in the spindle reservoir. 2.) DO lubricate all ball screws & linear guilds every 8 hours of run time. Use 30W Motor Oil or Lithium White Grease Lubricant or equivalent to lubricate the ball screws. Wipe off any excess to reduce dirt and dust acumination.

  • Page 110: Maintenance

    Maintenance- As with any machine, to ensure optimal performance you must conduct regular maintenance. Daily Preventive Maintenance Checks- 1.) Clean the machine and lubricate unpainted surfaces with a wax or WD40. Wipe off any excess and buff with a dry polishing cloth. This will reduce the likelihood of rust forming. 2.) Check cutter teeth for chips and dullness.

  • Page 111: Troubleshooting

    Troubleshooting- Machine Will Not Start- 1.) Check that the start switch is being pressed full in. 2.) Check that the red stop switch is fully out. 3.) Check that the electrical power cord is plugged into the power outlet. 4.) Check that the electrical supply is on (Reset the Breaker). 5.) With the power disconnected from the machine, check that the wiring to the plug is correct.
  • Page 112 Troubleshooting- Motor Overheats- The motor is designed to run hot, but should it overheat, it has an internal thermal overload protector that will shut it down until the motor has cooled, and then it will reset automatically. If the motor overheats, wait until it has cooled and restart. If the motor shuts down consistently, check for the reason.
  • Page 113 Delivery Protocol- • Most large machinery will be delivering on a tractor trailer 48'-53' long. Please notify Sales Representative with any Delivery Restrictions. • Customer is required to have a forklift (6000lb. or larger is recommended) with 72" forks or fork extensions and operator.
  • Page 114 Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts, and materials. We will repair or replace, without charge, any parts determined by Laguna Tools, Inc.
  • Page 115 Tools Customer Support Website. The labor required to install replacement parts is the responsibility of the user. Laguna Tools is not responsible for damage or loss caused by a freight company or other circumstances not in our control. All claims for loss or damaged goods must be notified to Laguna Tools within twenty-four hours of delivery.
  • Page 116 Laguna Tools Warranty-...
  • Page 117 Laguna Tools Customer Support Website. The labor required to install replacement parts is the responsibility of the user. Laguna Tools is not responsible for damage or loss caused by a freight company or other circumstances not in our control. All claims for loss or damaged goods must be notified to Laguna Tools within twenty-four hours of delivery.
  • Page 118 We require that the defective item/part be returned to Laguna Tools with the complaint. The end-user must request an RMA (Return Material Authorization) Number from Customer Service and include the (RMA) number with all returned parts/components requesting warranty coverage.
  • Page 119 Laguna Tools Packaging/Laguna Tools RMA Example- RMA #...
  • Page 120 Laguna Tools is not responsible for errors or omissions. Specifications subject to change. Machines may be shown with optional accessories. © 2021, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.

  • Page 121: Manual Revision Record

    Manual Revision Record Date of Change Revision# Engineering/Design Change Description New Manual for the Turner CNC Machine. 6/16/2021 Incorporated Engraving Machine Motion Control 12/23/2021 System (Rich Auto): 3-Axis Mechanical Carving-Pg. 33- 109. Changed Photos to current Assembled Machine.
  • Page 122 Comments/Notes...
