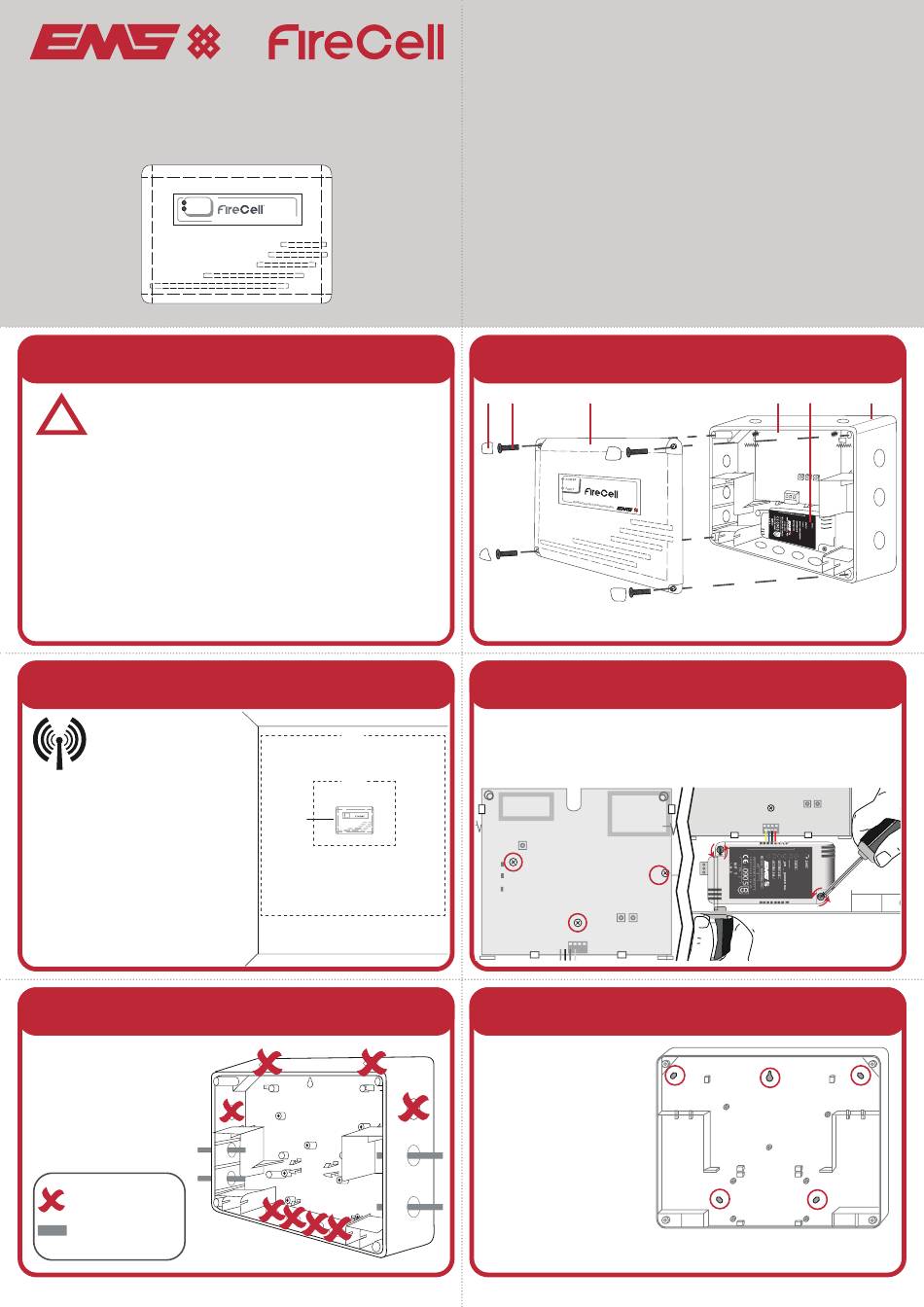

EMS FireCell FC-555-001 Installation Manual

230 VAC Radio Cluster Communicator (RCC)
Installation Guide
1 Pre installation
Installation must conform to applicable local installation codes
!
and should only be installed by a fully trained competent person.
• Ensure the RCC is installed as per the site survey.
• Refer to step 3 to ensure optimised wireless performance.
• If using remote aerials with this product, refer to the remote aerial
installation guide (MK293) for more information.
• This device contains electronics that may be susceptible to damage
from Electrostatic Discharge (ESD). Take appropriate precautions when
handling electronic boards.
3 Mounting location guidelines
For optimum
performance, the following
must be observed:
• Ensure the RCC is not
installed within 2 m
of other wireless or
electrical equipment.
• The RCC must not be
installed within 0.6 m
of any metal work.
5 Remove cable entry points
• Drill the cable entry
points as necessary.
= DO NOT use
= Available cable
entry points
©2023 EMS Ltd. All rights reserved.
POWER
FAULT
RADIO CLUSTER COMMUNICATOR
wireless
2 m
0.6 m
RCC
POWER
FAULT
Part no Description
FC-555-001 230 VAC RCC c/w PSU
FC-555-331 230 VAC RCC c/w remote aerial facility & PSU
2 Components
1 2 3
1 4x corner covers,
4 RCC PCB,
4 Optional PCB / PSU removal
• Remove the three circled retaining screws, prior to unclipping the PCB.
• If removing or rotating the PSU for right hand side mains entry, remove
both PSU retaining screws.
RF1R F2
RESET
HEALTHY
FAULT
SYS FAULT
6 Fix to the wall
• All five circled fixing
positions are available
for use as required.
• The key hole can also
be used for locating
and fixing where
required.
• DO NOT use sealant
that will prevent air
flow between the RCC
back box and the wall.
Page 1 of 2
4
2 4 x lid screws, 3 RCC lid,
5 RCC PSU, 6 RCC back box
or additional information refer to TSD04
F 2
BACK LOGON
TSD053-99 Issue 27 18/04/2023 AJM
5
6
BACK LOGON
