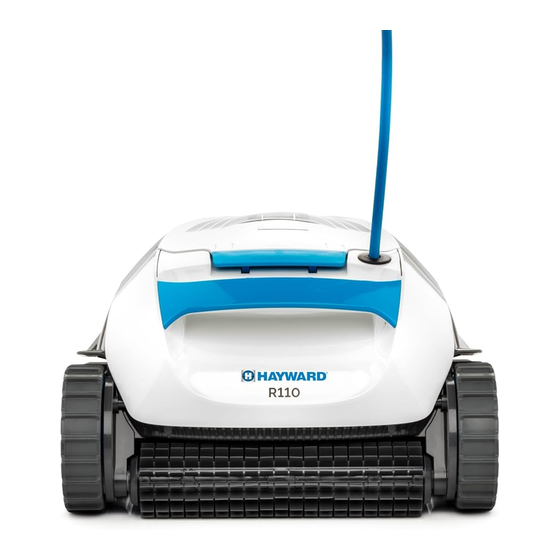

The PoolCleaner Robotic R110
EN
The PoolCleanerâ„¢ Robotic R110
User Instructions
Contents
1. INTRODUCTION ...................................................................... 2
2. SPECIFICATIONS ..................................................................... 2
3. WARNINGS AND CAUTIONS .................................................. 2
3.1 Warnings ............................................................................ 2
3.2 Cautions ............................................................................. 2
4. POOL CLEANER PARTS ........................................................... 3
5. USING THE POOL CLEANER ................................................... 4
5.1 Setup ................................................................................. 4
5.2 Putting the Pool Cleaner into the pool ............................. 5
6. CLEANING THE FILTER BASKET .............................................. 7
6.1 Cleaning after use ............................................................. 7
6.2 Periodic cleaning ............................................................... 8
7. CLEANING THE NET CANISTER ............................................. 9
8. CLEANING THE IMPELLER ...................................................... 10
9. OFF-SEASON STORAGE ......................................................... 11
10. TROUBLESHOOTING .............................................................. 11
User Instructions
|
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PoolCleaner Robotic R110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hayward PoolCleaner Robotic R110

  • Page 1: Table Of Contents

    6. CLEANING THE FILTER BASKET ..........7 6.1 Cleaning after use ............. 7 6.2 Periodic cleaning ............... 8 7. CLEANING THE NET CANISTER ..........9 8. CLEANING THE IMPELLER ............10 9. OFF-SEASON STORAGE ............11 10. TROUBLESHOOTING .............. 11 The PoolCleaner Robotic R110 User Instructions...
  • Page 2: Introduction

    User Instructions 1. INTRODUCTION Thank you for purchasing a Hayward Robotic Pool Cleaner. We are sure that your Robotic Pool Cleaner will provide you with reliable, convenient and cost-effective pool cleaning. Its reliable filtration in all pool conditions and active brushing, enhance pool hygiene.
  • Page 3: Pool Cleaner Parts

    4. POOL CLEANER PARTS The PoolCleaner Robotic R110 Robotic Pool Cleaner Model Mass 13 Power supply unit Filtration - options The PoolCleaner Robotic R110 User Instructions...
  • Page 4: Using The Pool Cleaner

    Plug in the power supply and leave it in the supply by inserting it with the notch on the OFF position. connector (1), lined up with the groove in the socket on the power supply, and turning clockwise (2). The PoolCleaner Robotic R110 User Instructions...
  • Page 5: Putting The Pool Cleaner Into The Pool

    Make sure that the floating cable is free of any obstructions. 5.3 Removing the Pool Cleaner from the pool Turn OFF and unplug the power supply. CAUTION 5.3.1 The PoolCleaner Robotic R110 User Instructions...
  • Page 6 Using the handle, remove the Pool Cleaner from the pool. DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE. CAUTION 5.3.3 Place the Pool Cleaner on the edge of the pool and let the water drain out. The PoolCleaner Robotic R110 User Instructions...
  • Page 7: Cleaning The Filter Basket

    Upon opening the filter cover, the handle will lift independently. 6.1.3 Lift up the basket. 6.1.5 Clean the filter basket with a hose. 6.1.4 Open the latch to release the bottom lid in order to remove the debris. The PoolCleaner Robotic R110 User Instructions...
  • Page 8: Periodic Cleaning

    Dismantle the 2 ultra-fine filter panels of the basket, according to the following steps: 6.2.1 Dismantle the 2 panels using your thumbs. 6.2.2 Clean the filter panels with a hose. 6.2.3 Assemble the filter panels. 6.2.4 Insert the clean filter basket and close the filter cover. The PoolCleaner Robotic R110 User Instructions...
  • Page 9: Cleaning The Net Canister

    Note: Do not let the net canister dry out before cleaning. 7.1 Cleaning after use - removing and cleaning the net canister 7.1.1 7.1.2 Open the filter cover. Lift up the net canister. 7.1.3 Clean the net canister with a hose. The PoolCleaner Robotic R110 User Instructions...
  • Page 10: Cleaning The Impeller

    If the debris is not reachable follow the next screwdriver open the 2 steps. screws. 8.1.3 Pull the impeller cover backwards to release it. Clean the debris trapped around the impeller. Assemble the impeller cover. The PoolCleaner Robotic R110 User Instructions...
  • Page 11: Off-Season Storage

    If so, adjust the levels and scrub the walls. • • Remove debris stuck in the impeller-house or impeller-cover • Debris stuck in the impeller-house or (according to the drawings). impeller-cover. The PoolCleaner Robotic R110 User Instructions...
  • Page 12 Changes or modifications not expressly approved by Hayward could void the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
