Summary of Contents for Fairport FPR60H

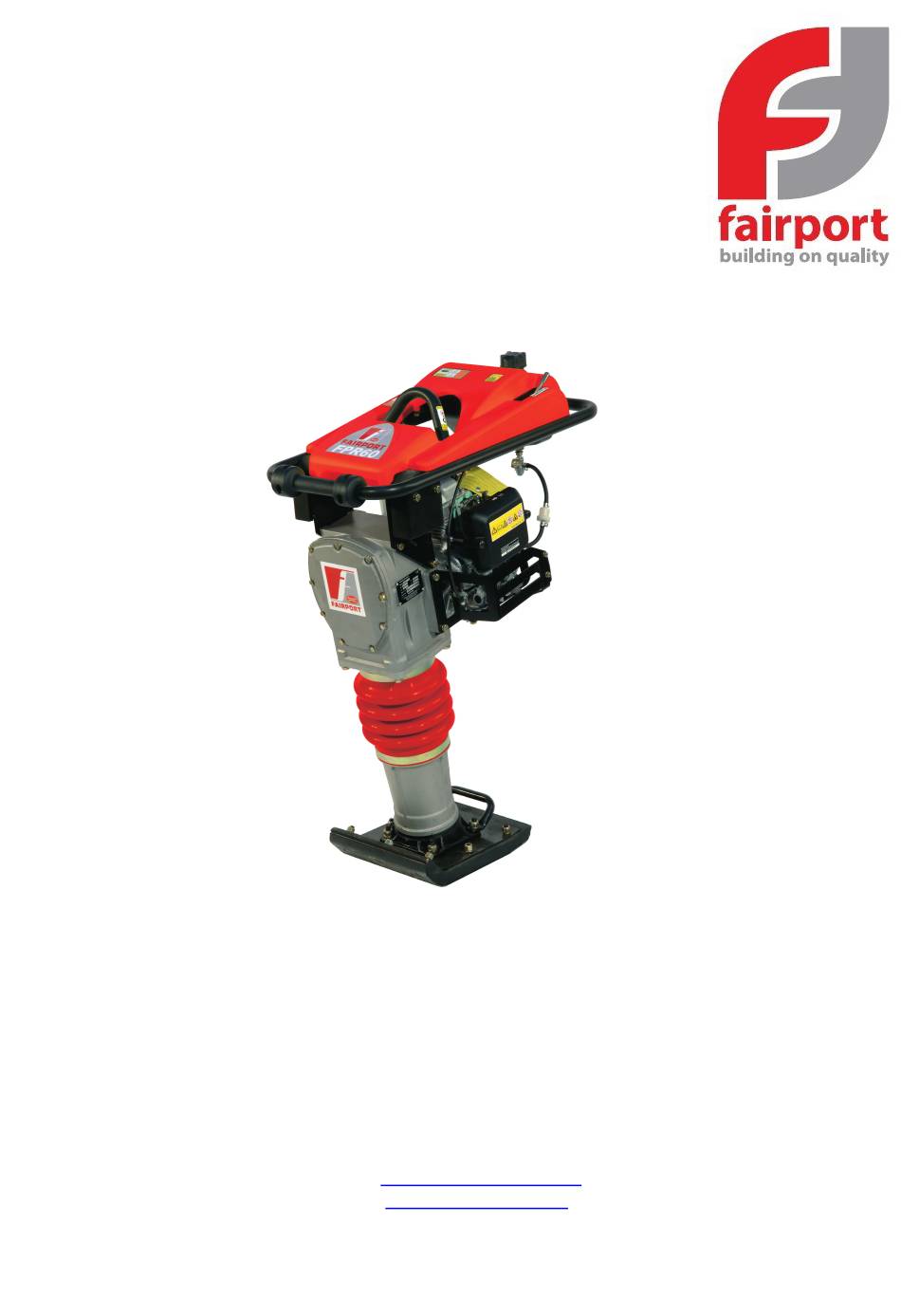

- Page 1 OPERATION AND SERVICE MANUAL FPR60H (TAMPING RAMMER) FAIRPORT CONSTRUCTION EQUIPMENT LIMITED Blagden Street Sheffield S2 5QS ENGLAND Tel: +44 (0) 114 276 7921 Fax: +44 (0) 114 272 0965 Email: sales@fairport.uk.com Web: www.fairport.uk.com...
-
Page 2: Table Of Contents
Table of Contents 1. SAFETY INFORMATION. …………………………………………………………………. 2 1.1 Safety Precautions ………………… ..…………………………………………………… 2 1.2 Operating Safety……………………………………………………………………………3 1.3 Operator Safety while using Internal Combustion Engines…………………..………..4 1.4 Service Safety ……………………………………………………………………..……….5 1.5 Label Locations………………………………………………………………..……………6 1.6 Safety Labels……………………………….…………………………... ……….………7-8 1.7 Operating Labels……………………………….…………………………... …….……….9 2. -
Page 3: Safety Information
SAFETY INFORMATON 1.1 Safety Precautions Before using this equipment, study the entire owner’s manual to become familiar with its operation. Do not allow untrained or unauthorized personnel, especially children, to operate this equipment. Use only factory authorized parts for service. This manual contains DANGER, WARNING, CAUTION callouts which must be followed to reduce the possibility of personal injury, damage to the equipment, or improper service. -
Page 4: Operating Safety
NEVER touch hot muffler, engine cylinders, or cooling fins. Burns will result. NEVER use accessories or attachments which are not recommended by FAIRPORT for rammer. Damage to rammer and/or injury to user may result. NEVER leave a running machine unattended. -
Page 5: Operator Safety While Using Internal Combustion Engines
SAFETY INFORMATON 1.3 Operator Safety while using Internal Combustion Engines DO NOT smoke when refueling the engine or during any other fuel handling operation. DO NOT refuel a hot or running engine. DO NOT refuel the engine near an open flame. DO NOT spill fuel when refueling the engine. -
Page 6: Service Safety
ALWAYS keep area around muffler free of debris in order to reduce to chance of an accidental fire. ALWAYS do Periodic Maintenance as recommended in Operation Manual. ALWAYS clean debris from engine cooling fins. ALWAYS replace worn or damaged components with spare parts designed and recommended by FAIRPORT for servicing this rammer. -
Page 7: Label Locations
SAFETY INFORMATION 1.5 Label Locations PETROL... -
Page 8: Safety Labels
SAFETY INFORMATION 1.6 Safety Labels FAIRPORT machines use international pictorial labels where needed. These labels are described below: Label Meaning This model-in label contains important safety and operating information. If it becomes illegible, the cover must be replaced. Refer to the Parts Manual for ordering information. - Page 9 Please record the information found on this plate so it will be available if the nameplate lost or damaged. When requesting service information, the serial number should be QUOTED on the unit. FAIRPORT CONSTRUCTION EQUIPMENT LTD BLAGDEN STREET, SHEFFIELD, S2 5QS...
-
Page 10: Operating Labels
SAFETY INFORMATION 1.7 Operating Labels FAIRPORT machines use international pictorial labels where needed. These labels are described below: Start the engine: ① Turn the engine switch to the ON position ② Close the choke. ③ Pull the rewind starter. ④ Open the choke. -
Page 11: Operation
OPERATION Operation 2.1 Application Rammers are designed to compact loose soils and gravel to prevent settling and to provide a firm, solid base for the placement of footings, concrete slabs, foundations, gas piping works, water pipe works and cable backfill works, etc. Please do not use in such as following cases. -
Page 12: To Start
OPERATION 2.4 To Start 1. Open the fuel shut-off valve by moving the fuel cock lever to the open position. 2. Set the engine ON/OFF switch to the “ON” position. 3. Grip the recoil starter handle and pull it until you feel slight resistance. Then pull sharply and quickly. -
Page 13: Operation
OPERATION 2.5 Operation After performing the previous start up routine, with the engine running and warmed up. Move the throttle lever to the Full Open position. Do not move the throttle slowly as it may cause damage to the clutch and or springs. “... -
Page 14: Maintenance
MAINTENANCE 3 MAINTENANCE 3.1 Periodic Maintenance Schedule The chart below lists basic maintenance. Refer to engine manufacturer’s Operator’s Manual for additional information on engine maintenance. A copy of the engine Operator’s Manual was supplied with the machine when it was shipped. Daily After Every... -
Page 15: Transporting
MAINTENANCE 3.2 Transporting Make sure lifting device has enough capacity to hold machine (see identification plate on machine for weight). Use central lifting point (a) when lifting machine. 1. Shutdown engine for transportation. Drain fuel for transportation over long distance or bad road. For transportation, tighten fuel tank cap securely and close fuel cock to prevent fuel from spilling. -
Page 16: Air Cleaner
MAINTENANCE 3.4 Air Cleaner Maintaining a clean engine will extend the engines life. Keep air filter clean at all times. Clean air filter using the recommended solvent daily. See engine manual for proper cleaning procedure. Let the filter dry before reinstalling. NEVER use petrol or other types of low flash point solvents for cleaning the air cleaner. - Page 17 MAINTENANCE 3.6.2 Engine Troubleshooting Refer to engine manual provided with product.
-
Page 18: Technical Data
TECHNICAL DATA 4. TECHNICAL DATA Model FPR60H Engine type Honda GX100 Engine speed operating rpm 3800±100 Power kw (hp) 2.2 (3.0) Weight kg (lb) 60 (132) Impact Force kN 10.7 Jumping stroke 50-85 (2-3.4) mm (in) Fuel tank Capacity L Shoe Size 265x338 (10.4x13.3) -
Page 19: Warranty
WARRANTY FAIRPORT products are covered by warranty for a period of twelve (12) months from the date of purchase against defects in material or workmanship provided that: The product concerned has been operated and maintained in accordance with the operating instructions. -
Page 20: Maintenance Record
MAINTENANCE RECORD PREVENTATIVE MAINTENANCE AND ROUTINE SERVICE PLAN FAIRPORT rammer has been assembled with care and will provide years of service. Preventative maintenance and routine service are essential to the long life of your rammer. After reading through this manual thoroughly, you will find that you can do some of the regular maintenance yourself. -
Page 21: Ec Declaration
CE-KONFORMITÄTSERKLÄUNG DECLARACIÓN DE CONFORMIDAD DE LA CE DÉCLARATION DE CONFORMITÉ C.E. Fairport Construction Equipment Ltd Blagden Street, Sheffield UK, S2 5QS hereby certifies that the construction equipment specified hereunder / bescheinigt, da. das Bauger.t / certifica que la máquina de construcción / atteste que le matériel : Category / Art / Categoría / Catégorie:... - Page 22 SPARE PARTS MANUAL FPR60H (TAMPING RAMMER) FAIRPORT CONSTRUCTION EQUIPMENT LIMITED Blagden Street Sheffield S2 5QS ENGLAND Tel: +44 (0) 114 276 7921 Fax: +44 (0) 114 272 0965 Email: sales@fairport.uk.com Web: www.fairport.uk.com...
