OPERATOR'S
SPARE PARTS &
SERVICE MANUAL

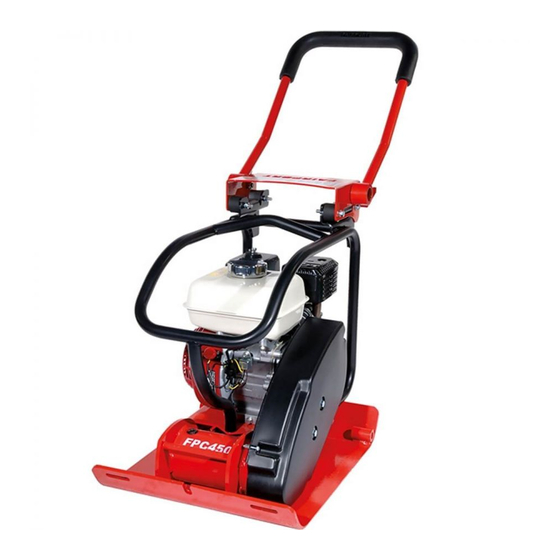

PLATE COMPACTOR
MODEL FPC350, FPC400 &
FPC 450
(GB Version)
Blagden Street
Sheffield
S2 5QS
ENGLAND
Tel: +44 (0) 114 276 7921
Fax: +44 (0) 114 272 0965
Email:
sales@fairport.uk.com
Web: www.fairport.uk.com
FPC-350, 400 & 450
FAIRPORT
CONSTRUCTION EQUIPMENT LTD
!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPC350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fairport FPC350

Summary of Contents for Fairport FPC350

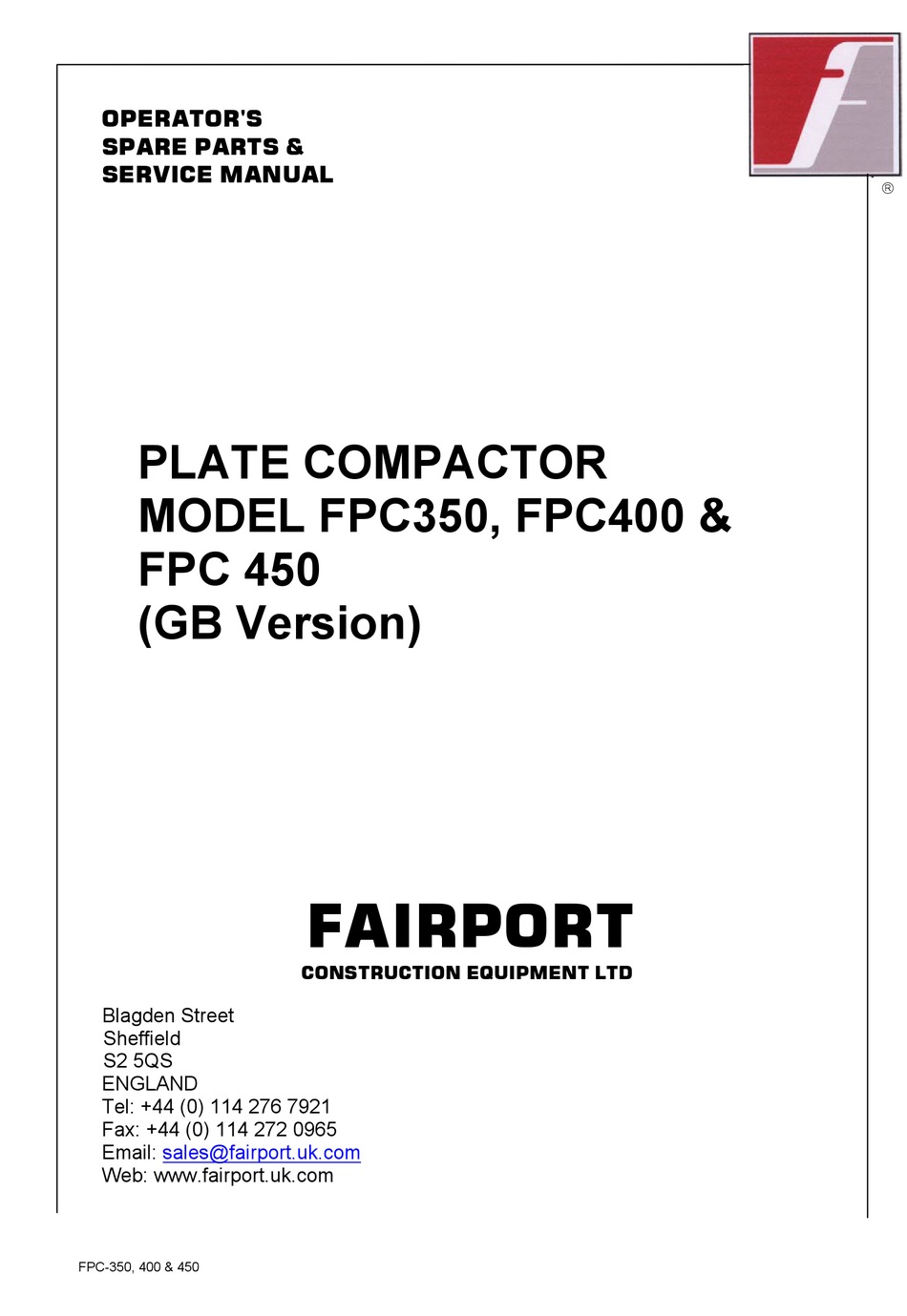

  • Page 1 OPERATOR'S SPARE PARTS & SERVICE MANUAL PLATE COMPACTOR MODEL FPC350, FPC400 & FPC 450 (GB Version) FAIRPORT CONSTRUCTION EQUIPMENT LTD Blagden Street Sheffield S2 5QS ENGLAND Tel: +44 (0) 114 276 7921 Fax: +44 (0) 114 272 0965 Email: sales@fairport.uk.com Web: www.fairport.uk.com...

  • Page 2: Table Of Contents

    CONTENTS PAGE SAFETY ………………………………………………………………………… 2 SAFETY PICTOGRAMS USED ON FAIRPORT EQUIPMENT ………….. 2 TECHNICAL DATA ……………………………………………………………. 3 USING THE MACHINE FOR THE FIRST TIME……………………………. 4 ROUTINE MAINTENANCE …………………………………………………… 4 STARTING THE ENGINE ……………………………………………………. 5 OPERATOR INSTRUCTIONS ……………………………………………….. 5 VEE BELT ADJUSTMENT ……………………………………………………. 5 WARRANTY CONDITIONS AND CLAIMS PROCEDURE ………………...

  • Page 3: Safety

    Turn off fuel when not using machine. Wear protective footwear, ear defenders and gloves. Comply with site safety regulations. Check condition and tightness of anti-vibration mounts between engine plate and base plate before lifting. SAFETY PICTOGRAMS USED ON FAIRPORT EQUIPMENT FPC-350, 400 & 450...

  • Page 4: Technical Data

    TECHNICAL DATA ENGINE MODEL ENGINE ENGINE POWER MANUFACTURER MODEL (HP/kW) Honda GX160 5.5/4.0 FPC350 FPC400 Honda GX160 5.5/4.0 FPC450 Honda GX160 5.5/4.0 DIMENSIONS MODEL HEIGHT – H LENGTH – L WIDTH – W CONTACT WEIGHT (mm) (mm) (mm) AREA (sq.

  • Page 5: Using The Machine For The First Time

    USING THE MACHINE FOR THE FIRST TIME When the machine is delivered from Fairport it will have no oil in the engine. Please refer to the Engine Manufacturers Manual issued with the machine for instructions on filling the engine with the correct type and quantity of oil.

  • Page 6: Starting The Engine

    5mm and 10mm is expected. WARRANTY CONDITIONS AND CLAIMS PROCEDURE All products supplied by Fairport Construction Equipment Ltd (hereafter referred to as FCE) are warranted to be free of defects due to faulty materials or workmanship for a period of 12 months from the date of original despatch from FCE or as specified below: FPC-350, 400 &...

  • Page 7: Conditions

    Hydraulic hoses and hydraulic couplings – 3 months. Hydraulic accumulators – 6 months. Flexible drives – 6 months. All spare parts used in repairs carried out by FCE or an authorised dealer or repairer – 3 months. If the goods have been purchased through a stockist the above warranty periods also apply from receipt of the goods by the user of the equipment up to a total of a further 6 months from date of despatch from FCE whichever is earlier.

  • Page 8: Repairs And Estimates

    and will result in delays and possible charges to defray costs incurred in identifying the fault. In the case of hydraulic breakers and power packs, both the breaker and the pack should be returned. REPAIRS AND ESTIMATES When returning a machine, or an assembly for repair, always include an Advice Note quoting model and serial number of the machine.

  • Page 9: Parts List Machine

    10. PARTS LIST - MACHINE DRIVE SYSTEM Parts List Part Code Description Qty Required W14702 Belt Guard W87300 Vee Belt W87060 Clutch P80167 1/4 UNF x 1 W432/6 Spring Washer P80120 Large Washer W14689 Belt Guard Back Plate W14681 Engine Spacer W466/5/8 Csk Setscrews W437/8/20...
  • Page 10 PARTS LIST – MACHINE Parts List Part Code Description Qty Required W14641 Frame W81731 Honda GX160 W14640 Engine Bed Plate W14686 Engine Fixing Plate W418/8 Washer W437/8/45 Setscrew W440/8 W432/8 Spring Washer W88914 Buffer W432/10 Spring Washer W440/10 W435/8/25 Setscrew W432/8 Spring Washer W437/8/20...
  • Page 11 PARTS DIAGRAM - MACHINE DETAIL C DETAIL A DETAIL B FPC-350, 400 & 450...
  • Page 12 Qty Required W14653 End Cap W14679 Gasket W81090 Bearing W14659-2 Eccentric Weight W14652 Base (FPC350) W14657 Base (FPC400) W14658 Base (FPC450) W87301 Key 8 x 7 x 15 W81270 Oil Seal (Up To Serial No. 58427) W81271 Oil Seal (From Serial No. 58428) W14655 End Cap (Up To Serial No.
  • Page 13 FPC-350, 400 & 450 PLATE...
  • Page 14 PARTS LIST - MACHINE Parts List Part Code Description Qty Required W14648 Handle W88913 AV Mount AVM 272/01 W435/8/16 M8 x 16 Hex Bolt W480/8 M8 Nyloc Nut W432/8 M8 Spring Lock Washer W14645 Top Plate W14683 Handle Pivot Bolt W88912 Handle Bush W418/8...

  • Page 15: Polypad Mat Kit

    PARTS DIAGRAM FPC-350, 400 & 450...

  • Page 16: Water Sprinkler Kit

    PARTS LIST – POLYPAD MAT KIT MODEL PARTS LIST PART CODE DESCRIPTION REQUIRED FPC350 W14758 Polypad W14757 Clamp Bracket FPC400 W14726 Polypad W14730 Clamp Bracket FPC450 W14727 Polypad W14731 Clamp Bracket Common Parts M10 x 40 Coach Bolts W480/10 M10 Nyloc Nut...
  • Page 17 PARTS LIST – WATER SPRINKLER KIT MODEL PARTS LIST PART CODE DESCRIPTION REQUIRED FPC350 W14697 Spray Bar Complete W14696 Spray Bar W80566 Insert FPC400 W14699 Spray Bar Complete W14698 Spray Bar W80566 Insert FPC450 W14701 Spray Bar Complete W14700 Spray Bar...

  • Page 18: Transporter Kit

    PARTS DIAGRAM FPC-350, 400 & 450...
  • Page 19 PARTS LIST – TRANSPORTER KIT Parts List Part Code Description Qty Required W14673 Wheel Carriage W14674 Wheel Bracket W14673-9 Axle 0079-00 Wheel W14716 Wheel W800-8 Indexing Plunger Nut – Indexing Plunger W418/12 M12 Washer W480/12 M12 Nyloc Nut W418/8/25 M8 x 25 Washer W432/8 M8 Spring Lock Washer FPC-350, 400 &...
  • Page 20 PARTS DIAGRAM – TRANSPORTER KIT FPC-350, 400 & 450...

  • Page 21: Ec Declaration Of Conformity

    EC DECLARATION OF CONFORMITY WE, FAIRPORT CONSTRUCTION EQUIPMENT LTD, BLAGDEN ST, SHEFFIELD, SOUTH YORKSHIRE, S2 5QS DECLARES THAT THE PRODUCT: FPC350/400/450 FITTED WITH A HONDA GX160 ENGINE ENGINE POWER; 5.5HP/4.2kW at 3600RPM SERIAL No. ……………………………… CONFORMS TO THE FOLLOWING DIRECTIVE: 89/336/EEC, 89/392/EEC, 91/368/EEC, 2000/14/EC NOTIFIED BODY;...
