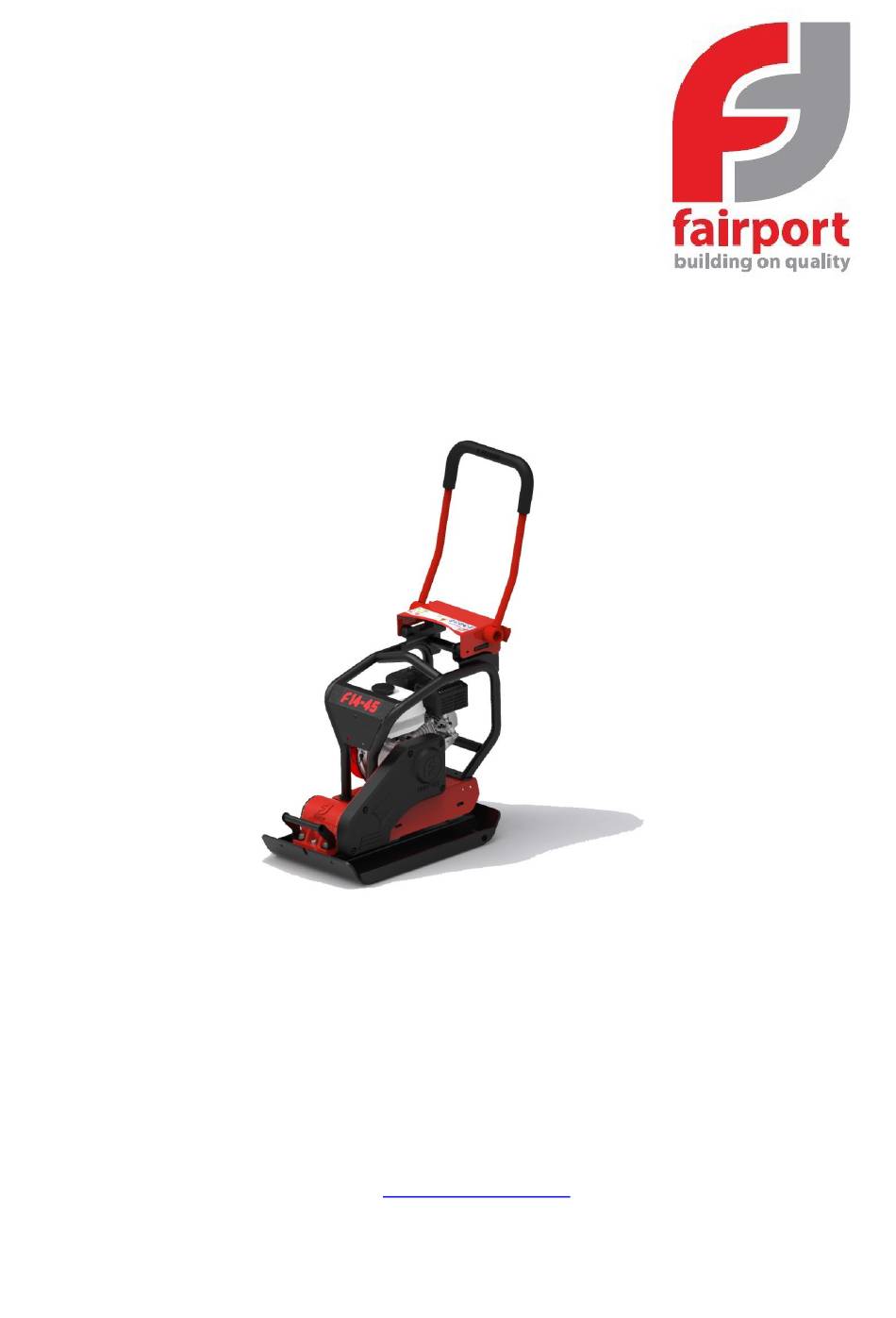

- Page 1 OPERATION, SPARE PARTS AND SERVICE MANUAL F-Range Plate Compactors (F14-35, F15-40, F16-45 & F17-50) FAIRPORT CONSTRUCTION EQUIPMENT LIMITED BLAGDEN STREET SHEFFIELD S25QS ENGLAND Tel: +44 (0) 114 276 7921 Tel: +44 (0) 114 272 0965 Email: sales@fairport.uk.com Web: www.fairport.uk.com...
-
Page 2: Table Of Contents
Contents Page Safety Technical Data Using The Machine For The First Time Routine Maintenance Starting The Engine Operator Instructions Vee Belt Adjustment Parts list Baseplate Drive 10-11 Main Assembly Warranty Conditions and Claims Procedure 10 Repairs and Estimates 11 Environment 12 EC Declaration Of Conformity... -
Page 3: Safety
Turn off fuel when not using machine. • • Wear protective footwear, ear defenders and gloves. Comply with site safety regulations. • Check condition and tightness of anti-vibration mounts between engine plate and base • plate before lifting. Safety Pictograms Used On Fairport Equipment... -
Page 4: Technical Data
2. Technical Data Engine ENGINE ENGINE POWER MODEL MANUFACTURER MODEL (HP/kW) F14-35 Honda GX160 5.5/4.0 F15-40 Honda GX160 5.5/4.0 F16-45 Honda GX160 5.5/4.0 F17-50 Honda GX160 5.5/4.0 F14-35 Loncin G200 5.5/4.0 F15-40 Loncin G200 5.5/4.0 F16-45 Loncin G200 5.5/4.0 F17-50... -
Page 5: Using The Machine For The First Time
3. Using The Machine For The First Time When the machine is delivered from Fairport it will have no oil in the engine. Please refer to the Engine Manufacturers Manual issued with the machine for instructions on filling the engine with the correct type and quantity of oil. -
Page 6: Starting The Engine
5. Starting The Engine Check oil level. Turn fuel tap on. Put speed control lever to tick-over. If engine is cold, close the choke (petrol engines only). Turn engine switch to ON(1) position. Pull the starter rope toggle lightly until resistance is felt, then pull briskly using quick short pull. -
Page 7: Parts List Baseplate
8. Parts List - Baseplate... - Page 8 8. Parts List - Baseplate Item No. Part No. Description W437/12/40 M12 x 40 Hex Setscrew W535/12 M12 Nordlock Washer W14912 Front Lifting Handle W85034 Bonded Seal W68574 Filler Plug P80804 M8 Bonded Seal W437/8/25 M8 x 25 Hex Setscrew W432/8 M8 Spring Lock Washer W420/8...
-
Page 9: Drive
8. Parts List – Drive... - Page 10 8. Parts List - Drive Item No. Part No. Description W14681 Engine Spacer W439/8 M8 Shakeproof Washer W408/5/16 5/16 X 1 UNF Hex Setscrew W14924 Clutch Spacer 15mm W84040 Clutch Key W87062 Lancereal Clutch 080-1145 (3/4") W80465 Belt W14930 Retaining Washer W466/5/16 5/16 X ¾...
-
Page 11: Main Assembly
8. Parts List – Main Assembly... - Page 12 8. Parts List – Main Assembly Item No. Part No. Description W437/8/16 M8 x 16 Hex Setscrew W14645 Top Plate W88916 AV Mount W440/8 M8 Full Nut W437/8/35 M8 x 35 Hex Setscrew W480/12 M12 Nyloc Nut W14648 Handle Weldment W88912 Handle Bush W14683...
- Page 13 9. Warranty Conditions and Claims Procedure All products supplied by Fairport Construction Equipment Ltd (hereafter referred to as FCE) are warranted to be free of defects due to faulty materials or workmanship for a period of 12 months from the date of original despatch from FCE or as specified below: Hydraulic hoses and hydraulic couplings –...
- Page 14 10. Repairs and Estimates When returning a machine, or an assembly for repair, always include an Advice Note quoting model and serial number of the machine. An official order must also be forwarded to FCE giving detailed instructions. No repair work can be carried out unless covered by an official order. An estimate will be submitted before proceeding with any repair.
- Page 15 EC Declaration of Conformity WE, FAIRPORT CONSTRUCTION EQUIPMENT LTD, BLAGDEN ST, SHEFFIELD, SOUTH YORKSHIRE, S2 5QS DECLARES THAT THE PRODUCT: F14-35, F15-40/16-45/17-50 FITTED WITH A HONDA GX160 ENGINE ENGINE POWER; 5.5HP/4.2kW at 3600RPM SERIAL No. ……………………………… CONFORMS TO THE FOLLOWING DIRECTIVE: 89/336/EEC, 89/392/EEC, 91/368/EEC, 2000/14/EC NOTIFIED BODY;...
