Operation - Desco Mini Monitor Installation Operation & Maintenance

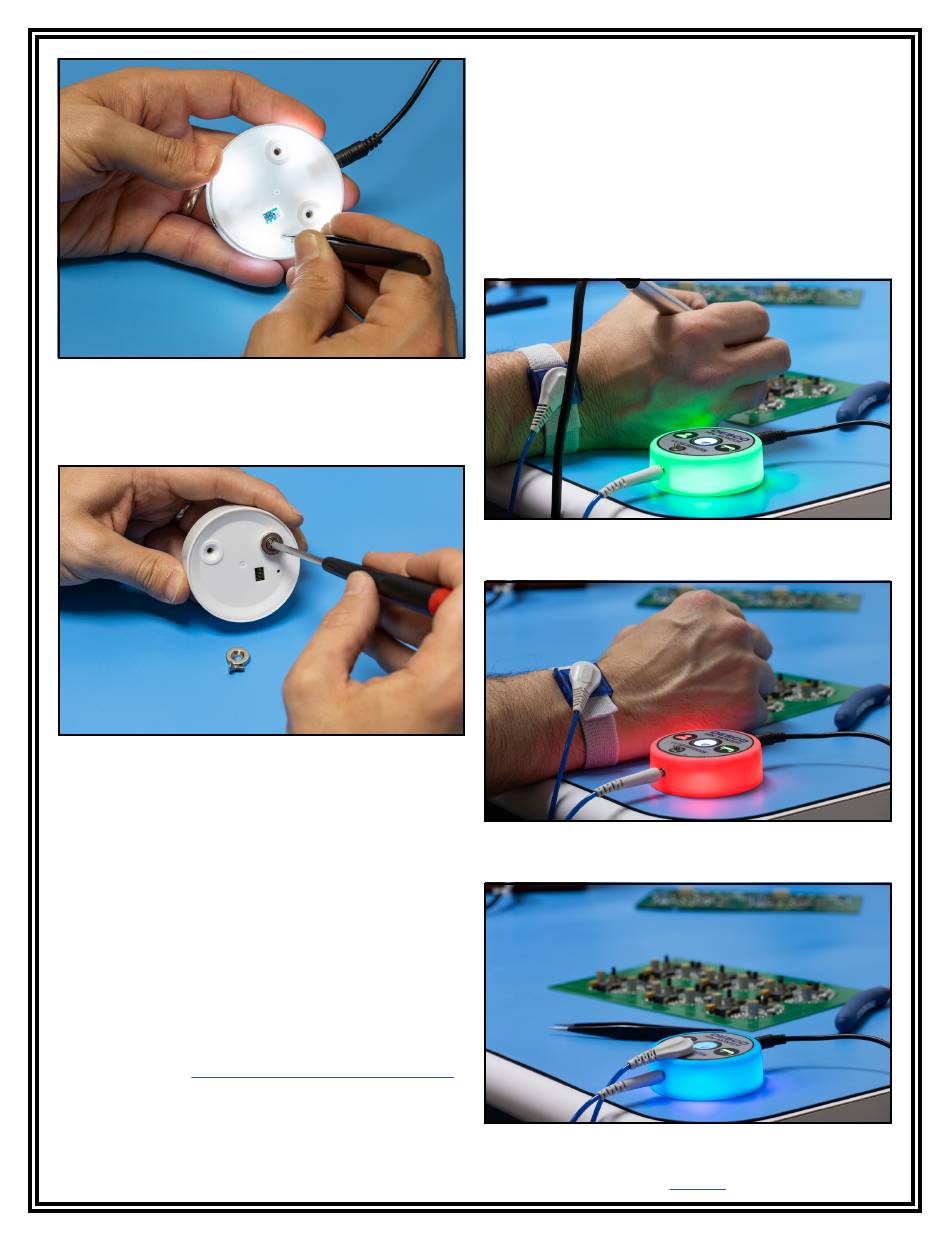

Figure 6. Using the set switch to disable the worksurface
monitor circuit
2. Use the included flat head screws to install the two
ring mangets to the bottom side of the monitor.
Figure 7. Installing the Desco 19344 Ring Magnets
3. Use the ring magnets to mount the monitor onto a
metallic surface.

Operation

1. Fit the wristband snugly onto the wrist.
2. Snap the wrist cord to the wristband.
3. Plug the wrist cord into the operator jack. The
operator LED will illuminate green. This indicates
that the operator is properly grounded.
4. If this does not happen, examine the wrist cord for
continuity or damage and the wristband to ensure
that it fits securely. If experiencing dry skin, the
operator may apply an approved dissipative hand
lotion such as MENDA Reztore® ESD Hand
TB-3098 Page 4 of 6
DESCO WEST - 3651 Walnut Avenue, Chino, CA 91710 • (909) 627-8178
DESCO EAST - One Colgate Way, Canton, MA 02021-1407 • (781) 821-8370 • Website:
5. When leaving the workstation, first touch the
monitor's park switch or park snap. The monitor's
audible alarm will disable for approximately 8
seconds. Use this time to disconnect the wrist cord
from the wristband and attach it to the park snap
without sounding a false alarm.
6. Upon returning to the workstation and disconnecting
the wrist cord from the park snap, the monitor will
provide approximately 8 seconds for the operator to
reconnect the wrist cord to a worn wristband before
sounding the monitor's alarm.
Figure 8. Illuminating green to indicate a proper operator
path-to-ground
Figure 9. Illuminating red to indicate a broken operator
path-to-ground
Lotion.
Figure 10. Illuminating blue to indicate standby condition
