the banana plug from the jack. Upon returning to the
workstation and disconnecting the wrist cord from the
park snap, the operator has approximately 8 seconds
to reconnect the wrist cord to a worn wristband before
activating the alarm. The 8 second timer is indicated by
the growing intensity of the monitor's blue LEDs. The
blue LEDs will pulse when the operator jack is vacant to
indicate standby mode.
C. Operator LED: Illuminates green when the operator
is properly grounded. Illuminates solid red and audible
alarm sounds when the operator is not properly
grounded.
D. Worksurface LED: Illuminates green when the
worksurface is properly grounded. Illuminates red and
audible alarm sounds when the worksurface is not
properly grounded.
E. ParkSnap™: Allows the operator to disconnect
(and park) a wrist strap when leaving the workstation,
without creating a false alarm. Touch the ParkSnap™
or park delay switch, and the monitor's audible alarm
will disable for approximately 8 seconds. Use this time
to disconnect the wrist cord from the wristband, and
attach it to the ParkSnap™ or remove the banana plug
from the jack. Upon returning to the workstation and
disconnecting the wrist cord from the ParkSnap™, the
operator has approximately 8 seconds to reconnect
the wrist cord to a worn wristband before activating the
alarm.
F. Monitored Operator Jack: Insert the single-wire
wrist cord here to monitor the operator's connection to
ground.
G. Set Switch: Toggles the monitor's settings for the
audible alarm and mat monitor circuit.
Function
Procedure
Audible Alarm
1. Push and release the switch to
Volume
2. The volume will toggle from low
Enable / Disable
1. Push and hold the switch until
Worksurface
Monitor Circuit
2. Release the switch.
3. An illuminated Worksurface
H. Threaded Ground Terminal: Connects the
worksurface mat to electrical ground.
I. Threaded Worksurface Monitor Terminal: Verifies
that the worksurface's path-to-ground is less than 10
megohms.
TB-3098 Page 3 of 6
toggle the buzzer's volume.
and high settings.
all LEDs illmuniate white.
LED indicates that the
worksurface monitor circuit
is enabled. A non-illuminated
Worksurface LED indicates that
the worksurface monitor circuit
is disabled.
DESCO WEST - 3651 Walnut Avenue, Chino, CA 91710 • (909) 627-8178
DESCO EAST - One Colgate Way, Canton, MA 02021-1407 • (781) 821-8370 • Website:
Installation
1. Remove the Mini Monitor from the carton, and
inspect for damage.
2. Locate an appropriate AC outlet near the Mini
Monitor, and test it for proper wiring and grounding
prior to use. The Desco AC Outlet Analyzer or
similar test equipment may be used to verify the
outlet's functionality. Use item
North American outlets and item
UK outlets.
3. Determine the mounting location of the Mini Monitor.
It is normally installed toward the front edge of a
workstation. Use a blade to pierce two holes 1-5/16"
apart from one another into the worksurface mat.
Click here
to download the mounting template.
4. Use a Phillips screwdriver to secure the two flathead
screws and countersunk washers through the
worksurface mat and into the two threaded terminals
on the bottom of the monitor.

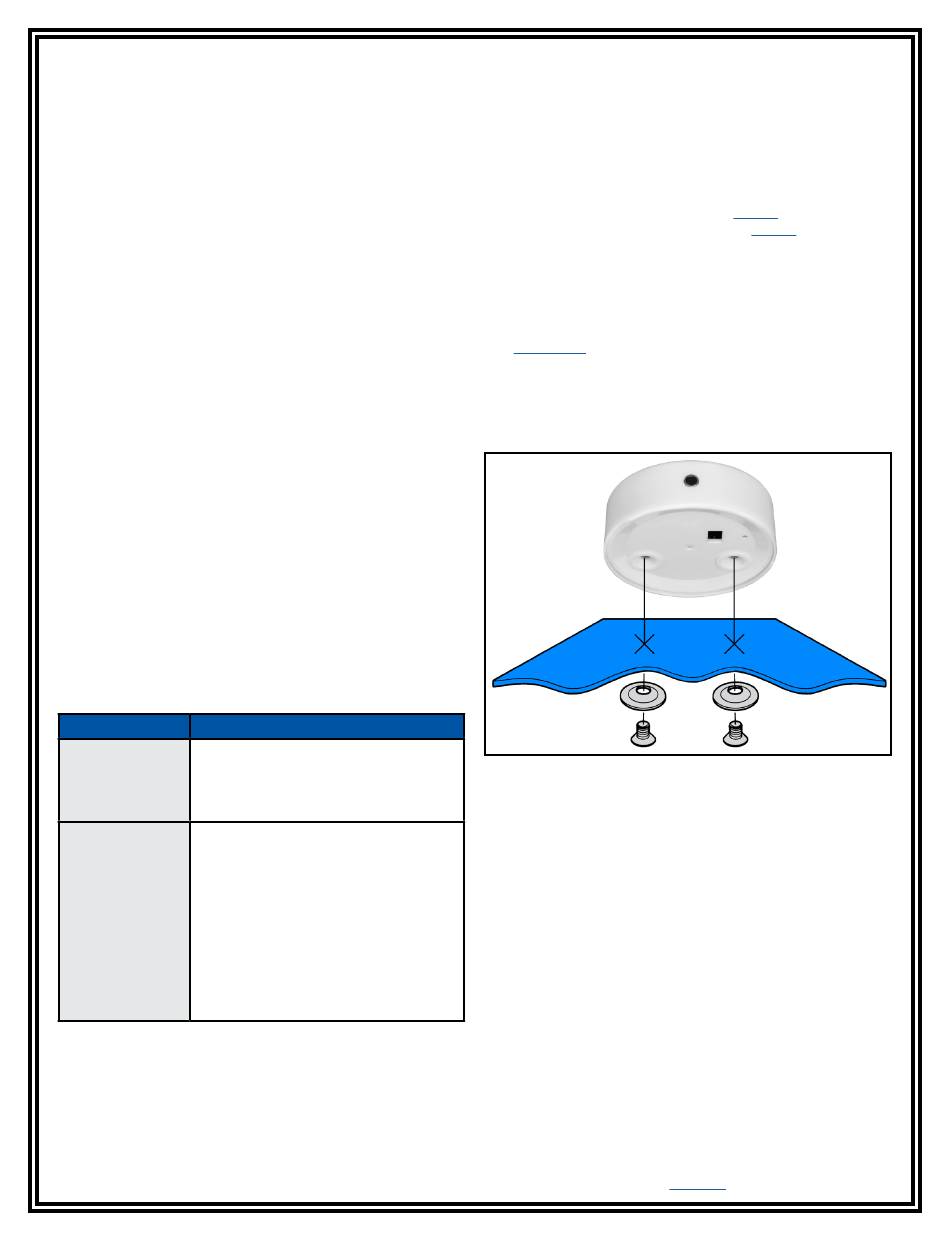

Figure 5. Securing the Mini Monitor to a worksurface mat
5. Connect the power adapter to the power jack
located on the Mini Monitor. Plug the power adapter
into the tested AC outlet.
19344 Ring Magnets
Use the Desco 19344 Ring Magnets to mount the Mini
Monitor onto metallic surfaces when worksurface mats
are not used.
1. The worksurface monitor circuit must first be
disabled before installing the magnets. Supply
power to the monitor, and use a probe to push and
hold the set switch on the bottom side until the
LEDs illuminate white. The worksurface LED on the
top side will turn off upon release of the set switch.
98133
for 120 VAC
98134
for 220 VAC
