Desco D19431 Installation, Operation And Maintenance Manual

Body Voltage Meter
Installation, Operation and Maintenance

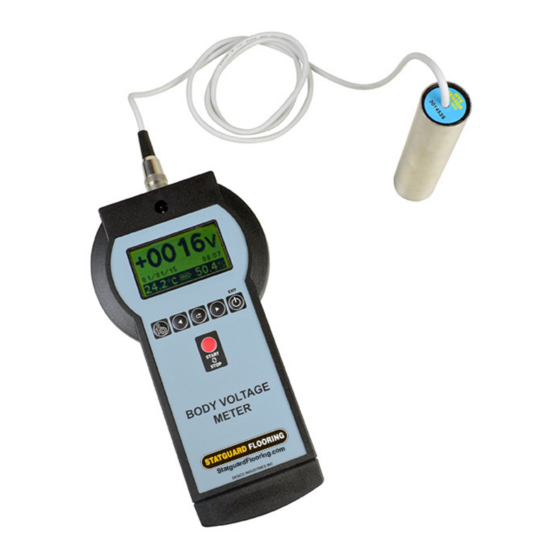

Figure 1. Statguard Flooring Body Voltage Meter

Description

The Statguard Flooring
is a portable measuring system that allows analysis
of charge levels accumulated on the human body
according to ANSI/ESD STM97.2. The Body Voltage
Meter measurement may be logged using internal
memory. Logged measurements can be exported and
further reviewed on a PC. Graphs of measurements can
be displayed on the LCD display for quick evaluation.
Each Body Voltage Meter is calibrated with accepted
procedures and standards traceable to the National
Institute of Standards and Technology (NIST) and
includes a NIST certificate.
November 2020
TB-9058 Page 1 of 6
D19431 Body Voltage Meter
One Colgate Way, Canton, MA 02021-1407 • (781) 821-8370 • Website:
TECHNICAL BULLETIN TB-9058
"A compliance verification plan shall be established to
ensure the organization's fulfilment of the requirements
of the plan. Process monitoring (measurements) shall be
conducted in accordance with a compliance verification
plan that identifies the technical requirements to be
verified, the measurement limits and the frequency at
which those verifications shall occur. The compliance
verification plan shall document the test methods
used for process monitoring and measurements. If the
organization uses different test methods to replace
those of this standard, the organization shall be able
to show that the results achieved correlate with the
referenced standards. Where test methods are devised
for testing items not covered in this standard, these shall
be adequately documented including corresponding
test limits. Compliance verification records shall be
established and maintained to provide evidence of
conformity to the technical requirements. The test
equipment selected shall be capable of making the
measurements defined in the compliance verification
plan." (EN 61340-5-1 clause 5.2.4)

Packaging

1 Body Voltage Meter
1 Walking Test Probe
1 Black 8-Pin DIN to USB Cable, 1.8 m long
1 Black Ground Cord with Crocodile Clip, 5 m long
1 Lanyard with Hook
1 Certificate of Calibration
StatguardFlooring.com
© 2020 DESCO INDUSTRIES INC
Employee Owned
