Digital surface resistance meter kit

Advertisement

EUROPE
Digital Surface Resistance Meter Kit
Installation, Operation and Maintenance

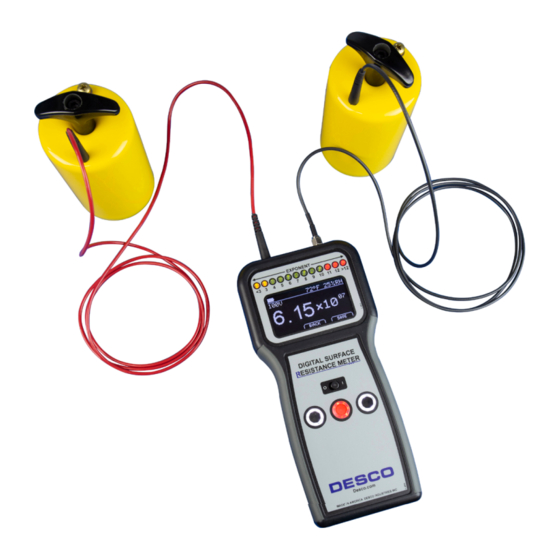

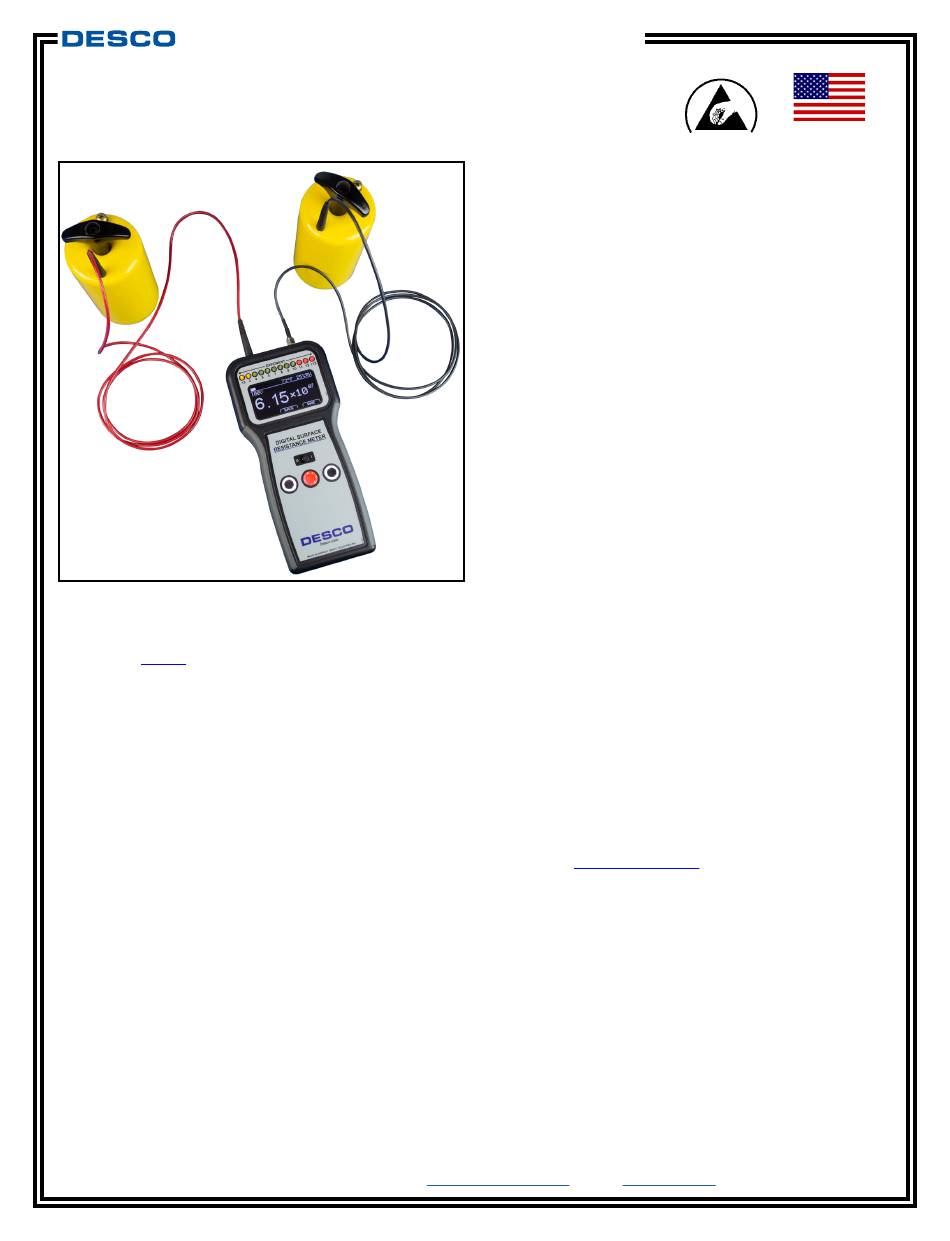

Figure 1. Desco Digital Surface Resistance Meter Kit

Description

The Desco
19290
Digital Surface Resistance Meter
Kit is an instrument designed to measure resistance
point-to-point (Rtt) or surface to ground (Rtg).
Its test functions include:
Resistance measurement accuracy of ±10 %
(±20 % accuracy for 1 x 10
Resistance range of <1 x 10
ohms
Under load voltages of 10 and 100 volts ±5 %
Electrification period of approximately 15 seconds
The Digital Surface Resistance Meter also measures
ambient temperature and relative humidity. Up to 100
measurements may be stored and recalled from the
meter's internal memory. This includes the resistance
value, temperature, relative humidity and test voltage at
the time of the measurement.
TB-3076.E Page 1 of 8
October 2018
TECHNICAL BULLETIN TB-3076.E
ohms and greater)
12
ohms to >1 x 10
3
DESCO EUROPE - 2A DUNHAMS LANE, LETCHWORTH, HERTFORDSHIRE, SG6 1BE, UK
Phone: +44 (0) 1462 672005 • E-mail: Service@DescoEurope.com, Website:
The Surface Resistance Meter Kit (or its Meter) is referenced
and designed to be used to make measurements in
accordance with the test procedures in:
Working surfaces, storage racks, trolleys and seating -
IEC 61340-2-3
Flooring - IEC 61340-4-1
Garments - ANSI/ESD STM2.1 Garments
Person/footwear / flooring system - IEC 61340-4-5
"A compliance verification plan shall be established to
ensure the organization's fulfilment of the requirements
of the plan. Process monitoring (measurements) shall be
conducted in accordance with a compliance verification
plan that identifies the technical requirements to be
verified, the measurement limits and the frequency at
which those verifications shall occur. The compliance
verification plan shall document the test methods
used for process monitoring and measurements. If the
organization uses different test methods to replace
those of this standard, the organization shall be able
to show that the results achieved correlate with the
referenced standards. Where test methods are devised
for testing items not covered in this standard, these shall
be adequately documented including corresponding
test limits. Compliance verification records shall be
established and maintained to provide evidence of
conformity to the technical requirements. The test
equipment selected shall be capable of making the
measurements defined in the compliance verification
plan." (EN 61340-5-1 clause 5.2.4 Compliance
verification plan)
Reference Literature
12
In addition to those noted above:
EN 61340-5-1 Electrostatics and PD CLC/TR 61340-5-2 User
Guide Electrostatics
These documents can be obtained from from British
Standards at www.bsigroup.com.
Made in the
United States of America
DescoEurope.com
© 2018 DESCO INDUSTRIES INC
Employee Owned
