Sinope Calypso RM3500WF Installation Manual

Calypso
RM3500WF
Installation Guide
Smart Water Heater Controller
INSTALL YOUR CONTROLLER ON A WATER HEATER
1 Hardware required for installation
1 standard utility electrical wiring box - with
conduit knockouts, 4'' x 4'' x 1-1/2»' deep
1 electrical box cover
2 wire clamps
Warning
The installation of this controller must be made by a certified
electrician and must be installed in conformity with the national
and local electrical codes.
The smart water heater controller is designed for indoor use only.

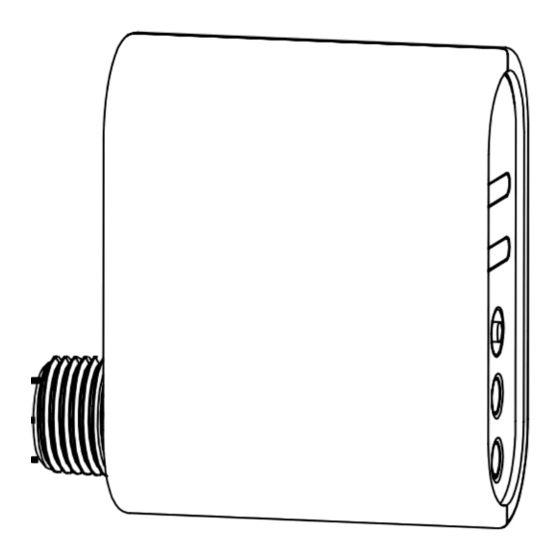

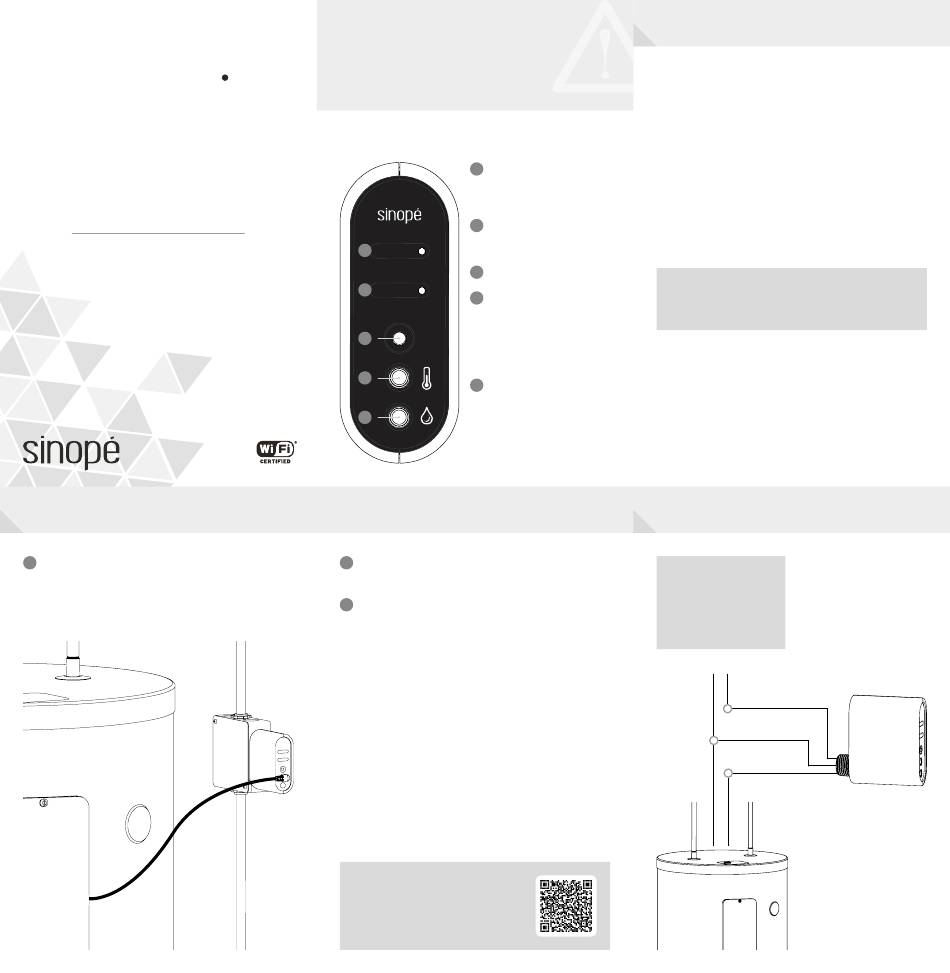

YOUR CALYPSO CONTROLLER
1
"Link" Indicator
The indicator lights up when
the controller is connected to
the network.
2
"Load" Indicator
The indicator lights up when power
is applied to the water heater.
Link
1
3 ON / OFF Button
2 Load
4
Temperature Probe Port
This temperature sensor guarantees
maximum comfort and a minimum
temperature threshold during your
3
power utility's peak management
events and your programmed
events.
*
4
5
Water Detection Cable Port
The optional water detection cable
detects potential leaks and sends
an alert on your mobile.
5
Neviweb account and Éco Sinopé participation required.
*
Turn OFF the water heater circuit at the
2
main electrical panel.
Insert the water heater wire (load) and the power
3
wire (line) into the electrical box and secure them
with wire clamps.
Install an electrical box ground wire to the water
heater ground screw.
Learn how the protection
mechanism works
TECHNICAL SPECIFICATIONS
Operating voltage: 240 V (60 Hz)
Maximum load: 20.8 A @ 240 Vac
Single-pole relay
Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage: -20 °C to 50 °C (-4 °F to 122 °F)
Standard UL: Conforms to ANSI/UL Std. 916
Certified under CAN/CSA Std. C22.2 No205
Indoor installation only
Protocol: Wi-Fi
Standard: IEEE 802.11 b/g/n
Frequency: 2.4 GHz
Note: If your water heater has been turned off for several days,
it is recommended to wait until the water temperature has
reached 55 °C (131 °F) for a minimum of 4 hours and then let the
hot water run for a few minutes before using it.
Controlling this HomeKit-enabled accessory automatically and away from home requires a HomePod, Apple TV,
or iPad set up as a home hub. It is recommended that you update to the latest software and operating system.
Use of the Works with Apple badge means that an accessory has been designed to work specifically with
the technology identified in the badge and has been certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory
standards. HomeKit is a trademark of Apple Inc.
Neviweb® is a registered trademark of Sinopé Technologies Inc. in Canada and the United States.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
Google Play and the Google Play logo are trademarks of Google Inc.
The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®
INSTALLATION ON A 240 V CIRCUIT
Electrical panel
L1/N L2
Red Black
Black
White
Red
Red Black
