Sinope MC3100ZB - Multi-controller Manual

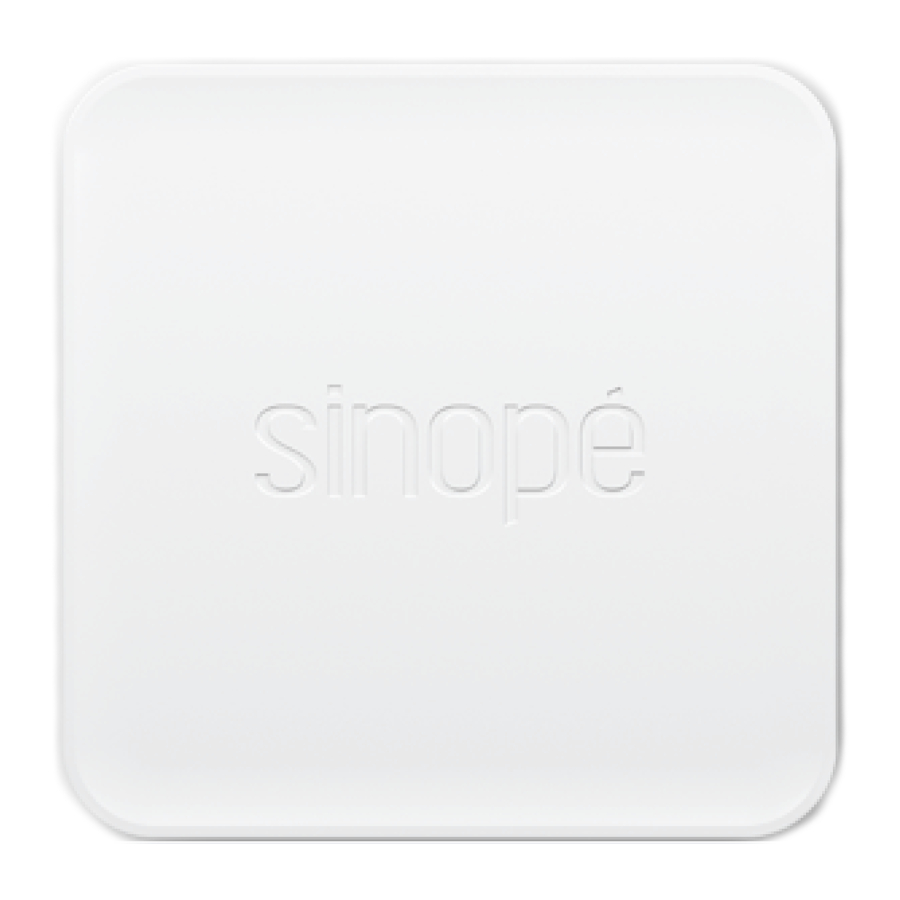

Your Device

Two outputs
Dry contact up to 24 V / 1 A

Two inputs

• 1 isolated input (ideal for any 12 V to 24 V signal)
• 1 dry contact compatible input (3.3 Vdc, 1 mA source)

Temperature and humidity sensors

• 1 internal temperature sensor
• 1 external temperature sensor (AC1310-01 external sensor sold separately)
• 1 internal humidity sensor

Install your unit in a flash

1. Scan the QR code or visit our website to follow the installation steps, discover its features and get application ideas.
   support.sinopetech.com/en/1.4.4.1/

2. Download the Neviweb app for iOS or Android.

3. Add your device to Neviweb and follow the steps of the Installation Wizard.

Discover the other members of the Zigbee family

Any questions? Don't hesitate to contact us! We're here to help.

Technical specifications

Operating temperature: 0°C to 40°C [32°F to 104°F]
Humidity reading: 5% to 95% non-condensing
Humidity accuracy: 4.5%
Temperature reading (internal): 0°C to 40°C [32°F to 104°F]
Temperature reading (external): -40°C to 70°C [-40°F to 158°F]

3 possible power sources:
Power supply connector:
12 Vdc 35 mA
24 Vdc 20 mA
24 Vac 15 mA

USB Micro B – 5 Vdc 65 mA (905-0000-0006)

2 AA lithium batteries (5 years)*
