The installation of this controller should be made by a certified electrician and must be installed in conformity with the national and local Electrical Codes.
The electrical load controller is designed for indoor use only.

YOUR DEVICE

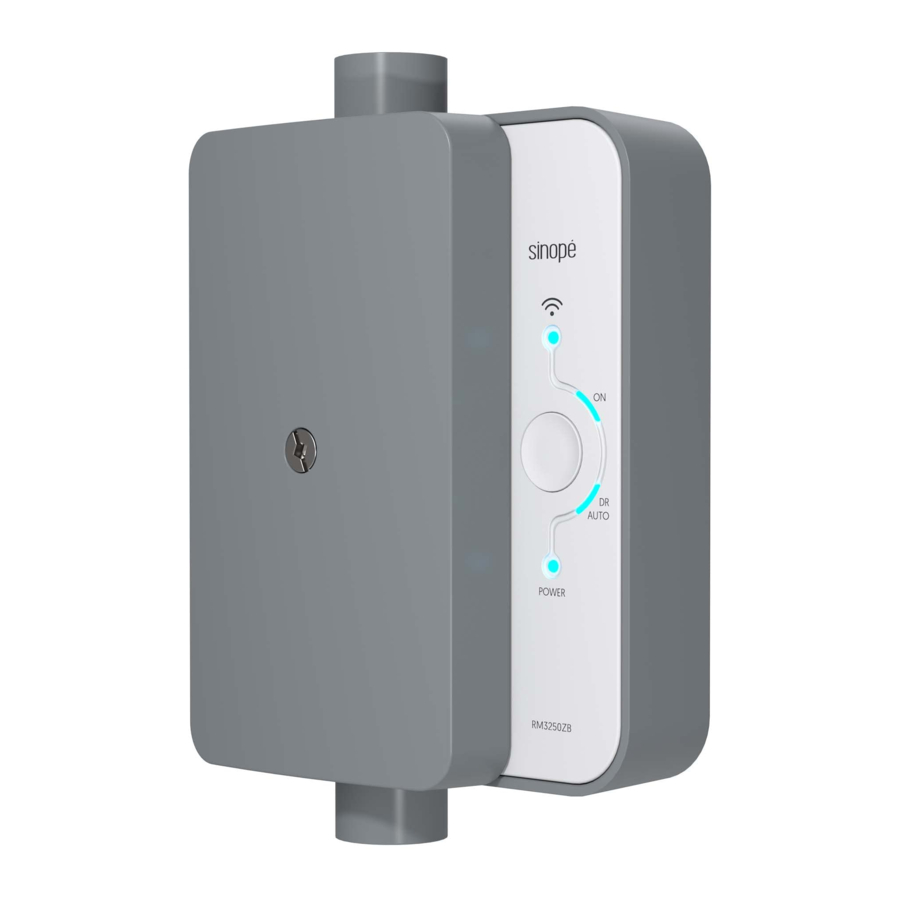

Device Overview

Indicator / Button
The indicator lights up when the controller is connected to the network.

"ON" Indicator
The indicator lights up when the load is ON.

"Power" Indicator
The indicator lights up when the controller is powered.

Main Button
Press once to activate or deactivate the load.

DEVICE PLACEMENT

To facilitate connection to the network, choose a clear area. Do not, for example, place the controller behind a water heater. When you have selected a suitable area, select 1 or 2 with the selection switch depending on the wiring of the device.
DEVICE PLACEMENT

INSTALL YOUR DEVICE

Turn OFF the circuit at the main electrical panel.
Secure the template (included) behind the wire.
Mark the anchorage holes on the wall and the positions where to cut and unsheathe on the wire.
Cut and unsheathe the wires according to the size indicated in the installation template.
Fix the controller to the wall.
Insert each wire in its terminal and firmly tighten the wire connectors. A loose connection can be a fire hazard.
Secure the cable with the clamp. The clamp must lean against the cable's outer sheath.
Close the cover and power up the controller.
Note: The "Power" indicator will lit. If not, verify the position of the wiring selection switch.

ADD YOUR DEVICE TO THE GT130 AND NEVIWEB

If you do not have an account yet, download the Neviweb app for iOS or Android to open an account and add your device.

Tap the then select "Add Device"
Follow the steps of the Installation Wizard

CONNECT YOUR UNIT TO A COMPATIBLE ZIGBEE SYSTEM

Initiate the connectivity session of your compatible Zigbee hub by referring to the device's user guide.
Connect your controller load to the network by pressing once on the button.

The indicator Flashes:
Device is connecting.
Lit:
Device is connected.
OFF:
Connection has failed.*

*Refer to the "support" section of our Website to troubleshoot the unit.

Connect all your compatible Zigbee devices the same way, by going to the next closest device.

When your controller is connected, close the connectivity session of your comptaible Zigbee hub.

DISCONNECT YOUR UNIT FROM THE GT130 GATEWAY OR A COMPATIBLE ZIGBEE SYSTEM

DISCONNECTING YOUR UNIT FROM THE GT130 GATEWAY
To disconnect the load controller from the GT130 gateway or a compatible Zigbee system, press simultaneously press the button and the main button for 10 seconds.

APPLICATIONS

This unit can control different types of devices such as:

Electric water heater
Pool pump and filter
Window AC unit
Outdoor lighting
Irrigation pump

TECHNICAL SPECIFICATIONS

Maximum wire gauge: 6GA
Operating voltage: 120 - 347 Vac, 50 / 60 Hz
Consumption:

Load activated: 0.5 W @ 120 - 240 Vac
Load standby: 0.47 W @ 120 - 240 Vac

Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 50°C (-4°F to 122°F)
Standard UL: Conforms to ANSI/UL Std. 916
Certified under CAN/CSA Std. C22.2 No205-12
Indoor installation only.

MAXIMUM LOAD
	120 V	240 V	277 V	347 V
Resistive load	50 A	50 A	50 A	20 A
Incandescent lamp	20 A	20 A	20 A
Magnetic ballast	20 A	20 A	20 A	15 A
Electronic ballast	15 A	15 A	15 A
Motor	1.5 HP	3 HP	3 HP

Zigbee 3.0 profile
Frequency: 2.4 GHz
Transmission power: +20 dBm
Receiver sensitivity: -108 dBm

Note: If your water heater has been turned off for several days, it is recommended to wait until the water temperature has reached 60°C (140°F) and to let the hot water run for a few minutes when the heater is switched back on.
