Sinope RM3250ZB-C4 Installation Manual

Your controller RM3250ZB-C4
Installation
Guide
RM3250ZB-C4
Smart Electrical
CAUTION
DISCONNECT POWER BEFORE OPENING
Load Controller AVERTISSEMENT
COUPER L'ALIMENTATION AVANT D'OUVRIR
zigbee 3.0
Main Button
Press once to activate or deactivate the load.
Warning
This product is only compatible with the Control4 home
automation system.
The installation of this controller should be made by a certified
electrician and must be installed in conformity with the national and
local Electrical Codes.

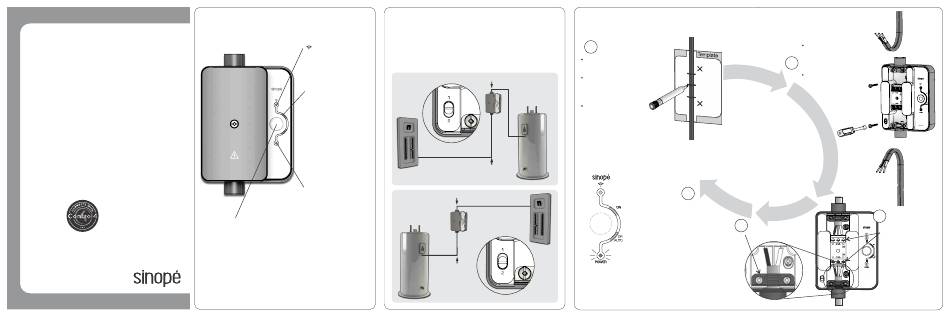

Controller placement
To facilitate connection to the network, choose a clear area. Do
not, for example, place the controller behind a water heater.
Indicator / Button
When you have selected a suitable area, select 1 or 2 with the
The indicator lights up
selection switch depending on the wiring of the device.
when the controller is
connected to the network.
Option 1
" ON Indicator "
The indicator lights up
when the load is ON.
ON
Auto
DR
Power
RM3250ZB
" ower" P Indicator
Line
The indicator lights up
Option 2
when the controller is
powered.
Load
Install your controller
1
Turn OFF the circuit at
the main electrical panel.
Load Secure the template
(included) behind the
wire.
Mark the anchorage
holes on the wall and the
positions where to cut
and unsheathe on the
wire.
Line
Close the cover
and power up the
controller.
Note: The "Power"
indicator will lit.
If not, verify the
position of the wiring
selection switch (see
page 2).
Cut and unsheathe the
wires according to the size
indicated in the installation
2
template.
Fix the controller to the wall.
5
4
Secure the
cable with the
clamp. The
clamp must
lean against
the cable's
outer sheath.
3
Insert each wire in
its terminal and
firmly tighten the
wire connectors. A
loose connection
can be a fire
hazard.
RM3250ZB
