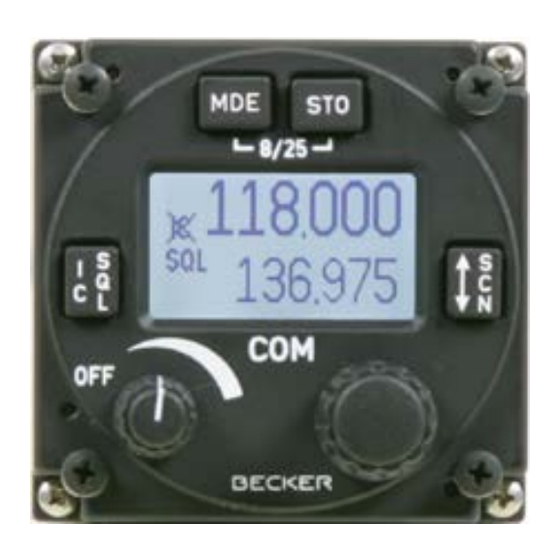

Becker 620 Series Quick Start Manual

AR620X, GT6201, RCU6201
LCD brightness
adjustment
Figure: XX6201
"Long press": when pressing and
holding down a key for at least
2 seconds (≥ 2 s).
"Short press": any pressing below
2 seconds (< 2 s).
If any action by the user is invalid,
the whole display inverting for a short
time.
Store:
Access depends on configuration settings.
• Short press of "STO" key stores
the active frequency into the next
vacant memory place.
• It is possible to apply a
customized label for the memory
place (max. 10 characters).
We reserve the right to make technical changes. The data correspond to the current status at the time of printing.
Quick Start Guide
Symbol
1
2
3
4
5
6 Rotary
encoder
-8/25-
7 Display
8 Active
frequency
0646.911-071 Issue 05

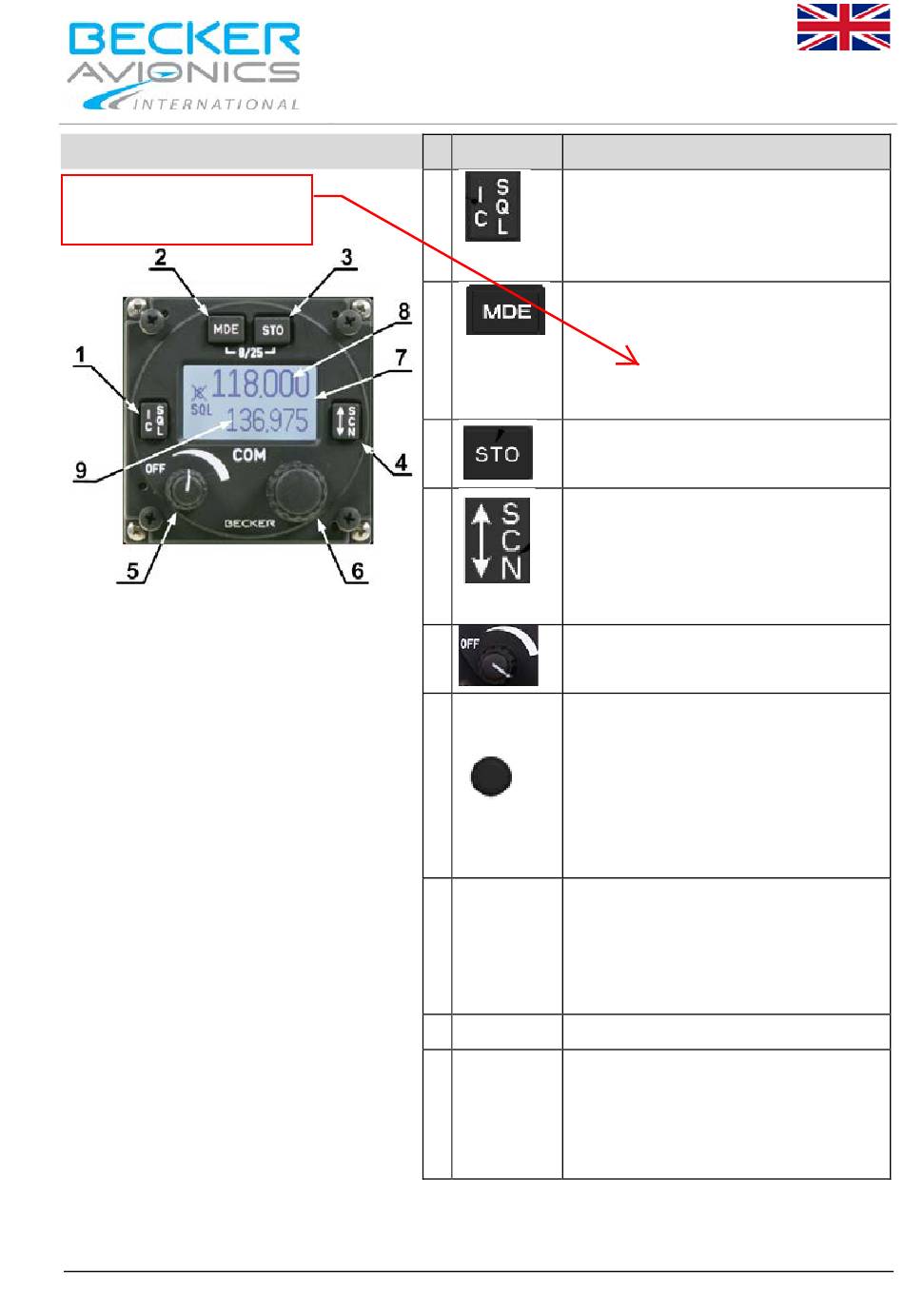

Controls & Indications
VHF Transceiver Family 620X
Function
"Short press" during normal
operation = RX -SQL ON/OFF.
"Long press" during normal
operation = Intercom Menu.
"Short press" during normal
operation = Frequency Selection
Mode→ON.
"Long press" during normal
operation = Pilots Menu.
"Short press" during normal
operation = Storage procedure.
"Short press" during
Standard Mode, or Scan Mode
toggles between preset and
active frequency.
"Long press" = Scan Mode.
Transceiver ON/OFF and adjusts
volume level of received signal.
Turning "ROTARY ENCODER"
changes the settings of several
parameters (frequency,
IC volume, VOX, ...).
Pushing the "ROTARY
ENCODER" toggles between the
digits and acts as an enter key.
Change of Channel Spacing
MDE and STO button pressed
simultaneously > 2 s changes
8.33 to 25 kHz channel spacing
and vice versa.
LCD: Liquid Crystal Display
Only on the active frequency,
transmitting is possible and
receiving has priority, even in
Scan Mode. Frequency tuning is
not possible in Standard Mode.
01/2017
