Becker GT6201-05 Installation And Operation Manual

Vhf ground transceiver
Hide thumbs Also See for GT6201-05:
Table of Contents

Advertisement

Quick Links

Download this manual
Becker Avionics GmbH • Baden-Airpark B108 • 77836 Rheinmünster • Germany
 +49 (0) 7229 / 305-0 • Fax +49 (0) 7229 / 305-217
http://www.becker-avionics.com • E-mail: info@becker-avionics.com

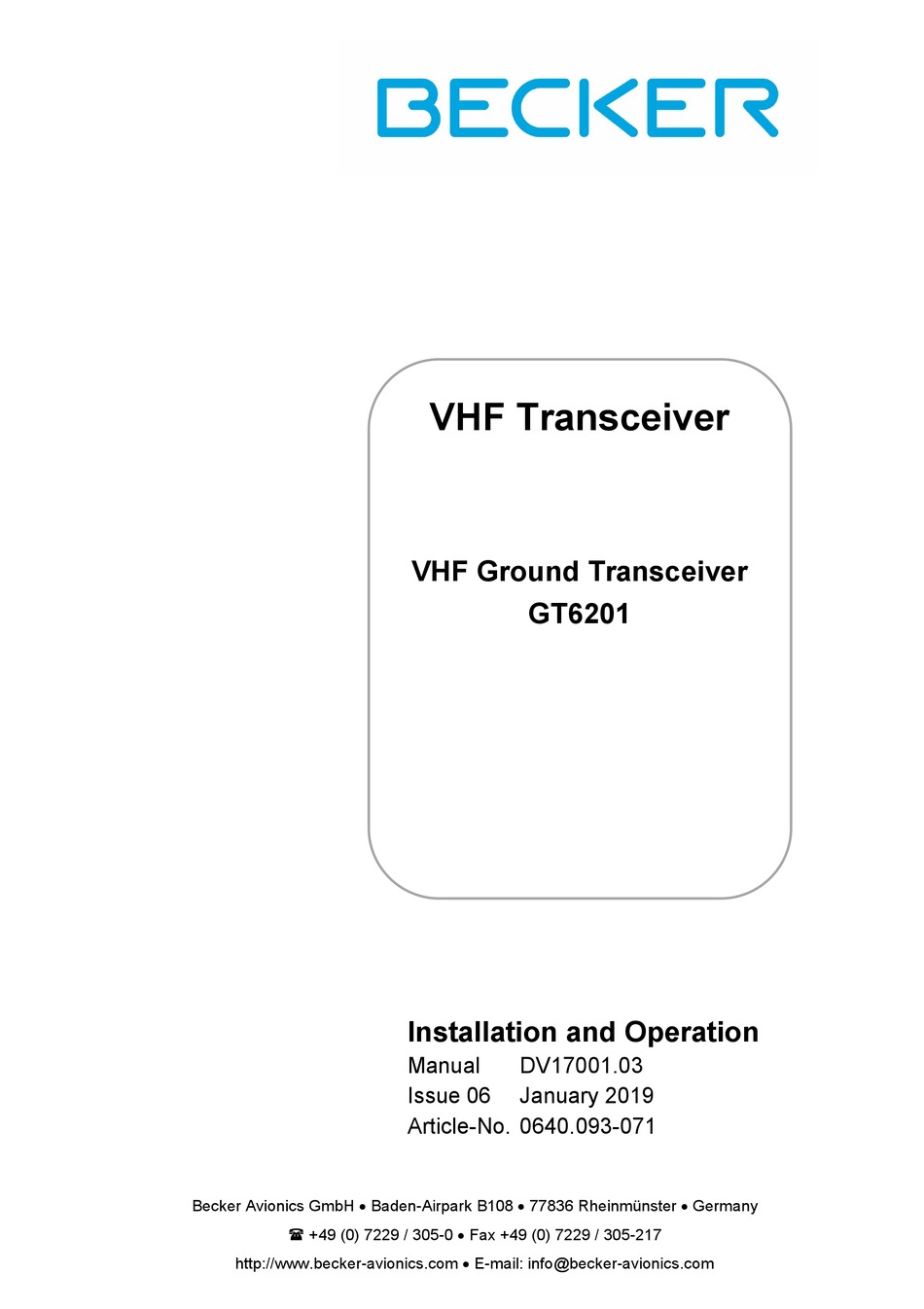

VHF Transceiver
VHF Ground Transceiver
GT6201
Installation and Operation
Manual
DV17001.03
Issue 06
January 2019
Article-No. 0640.093-071
