Summary of Contents for Hisense HRF680YZC

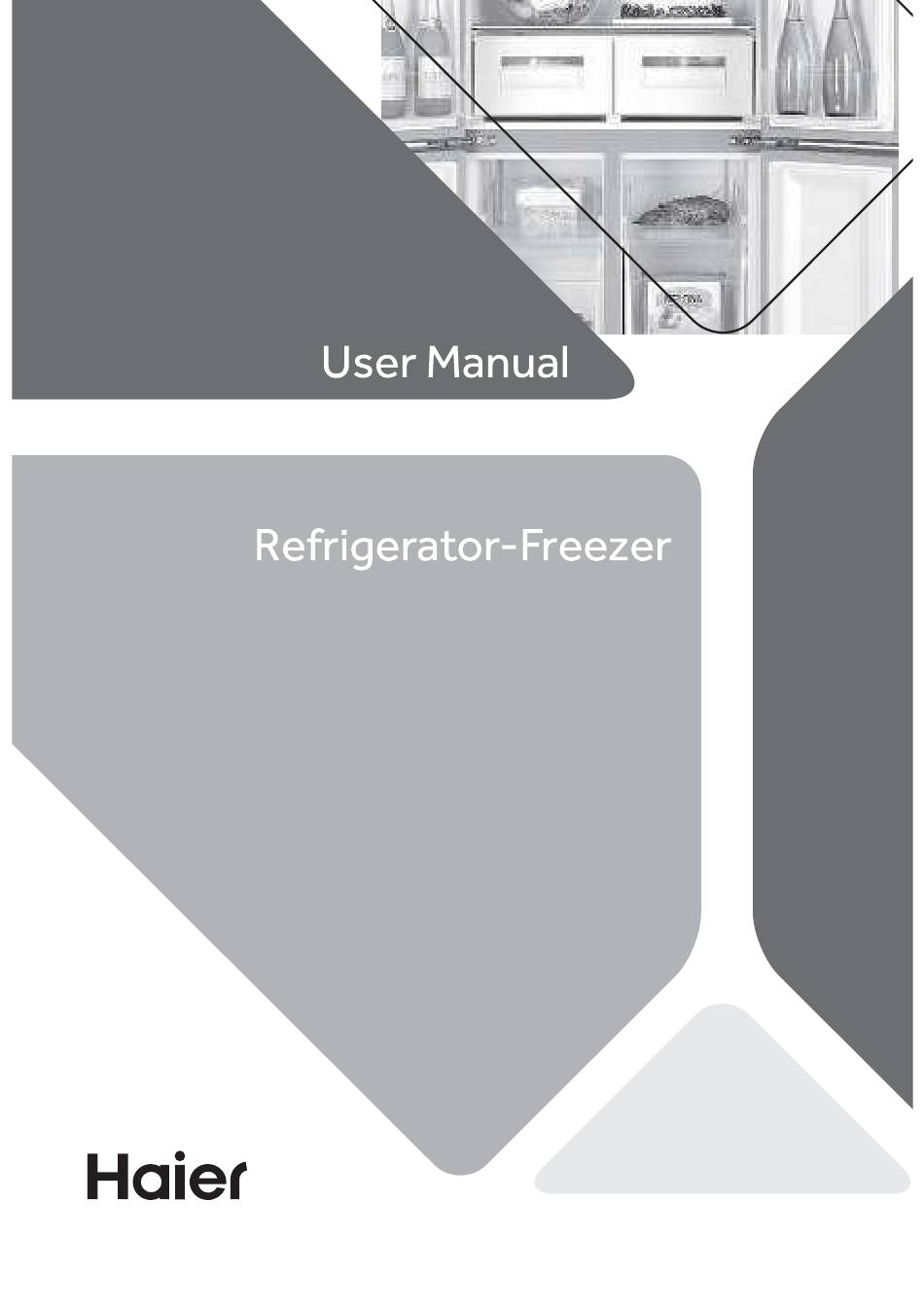

- Page 1 HRF680YZC HRF680YZS...
- Page 2 Risk of injury or su�ocation! Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut o� the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.
- Page 3 Water pipe...
- Page 4 information : people...
- Page 7 a small bit of dish detergent...
- Page 8 customer WARNING:It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland - the au- thorised Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs which involve the removal of covers.
-
Page 9: Intended Use
Intended use beam on Beam Track element... - Page 10 HRF680YZC/HRF680YZS light Drip Trap Door Shelf Door handle Door Shelf Fridge compartment light Door Shelf My Zone...
- Page 11 Auto Set/Wi-Fi selector function Dispense Water Dispense function p Wi-Fi function...
- Page 12 Switch on/o� of the appliance The panel lock is active. Automatic lock: When the fridge door, freezer door and S-Zone door are closed and there is no key operation within 30 seconds the display screen will automatically turn o� and lock.
- Page 13 1. When the display screen is unlocked, press the button "F' (Zone selector) until the "f1" (Fridge indicator) �ashes. 2. Use the button "D" to decrease the temperature by 1 ℃. 3. Use the button "E" to increase the temperature by 1℃. The selectable temperature ranges is 1℃...
- Page 14 1. When the display screen is unlocked, press the button "F' (Zone selector) until the "f3" (Switchzone indicator) �ashes. 2. Use the button "D" to decrease the temperature by 1℃. 3. Use the button "E" to increase the temperature by 1℃. The selectable temperature ranges is -18℃...
- Page 15 While the Super Cool Function is selected, the temperature of the fridge compartment can not be adjusted. While the Super Cool Function is selected, if you activate the Auto Set mode or the Holiday mode, the Super Cool Function will be turned o�. In Super Freeze mode the freezer compartment will be set to it's lowest temperature until it cools down to that temperature.
- Page 16 In Auto Set mode the fridge temperature is set to 5℃ and the freezer temperature is set to -18℃. The Switch Zone remains as the temperature it is set to. 1. When the display screen is unlocked, press the button "A" (Auto Set mode selector) to turn on the Auto Set function.
- Page 17 While in Holiday mode, the temperature of the fridge compartment cannot be adjusted. While in Holiday mode, if you activate the Auto Set mode, Super Cool ,Super Freeze or Ice Maker On,it will turn o� the Holiday Mode. IMPORTANT! Before using the Holiday function, please empty the fridge and ice maker to prevent spoilage of food stu�s.
- Page 18 After six months of operation, the reminder indicator "i" (Filter Reset indication) will illuminate. After you replace the Water Filter hold the button "I" (Filter Reset selector) for 3 seconds to cancel the reminder. It is recommended to replace the water �lter every six months. 1.
- Page 19 When the indicator 'k' (Water Dispense function) is illuminated, Press the Dispenser Paddle to dispense Water. continue to disp- ense water will enter the Press the button "L" (Cubed ice function selector) to change the dispense mode to Cubed Ice. The indicator "l"...
- Page 20 Press the button "M" (Crushed ice function selector) to change the dispense mode to Crushed Ice. The indicator "m" (Crushed ice function) will illuminate. 1. When the indicator 'm' (Crushed Ice function) is illuminated, Press the Dispenser Paddle to dispense Crushed Ice. 2.
- Page 21 When the refrigerator is turned o� it will store your current settings and resume them when the refrigerator is turned on again.
- Page 22 827 kPa. 172-827 kPa Ambient temperature must be greater than 0℃. 1/2" Ensure the hose is not crushed, kinked or twisted.
- Page 23 We recommend cleaning the dispenser tray with a damp cloth if the water dispenser not been used for 48 hours. If the water has not been drawn for 5 days, we recommend �ushing the water through the dispenser about 5 minutes and throw away the �rst few batches of ice.
- Page 27 868686 FWC5 Fisher & Paykel Water Filter. https://www.haier.co.nz/accessories/water-�lter-868686-868686.html https://www.haier.com.au/water-�lter-868686-868686.html...
- Page 28 F&P Filter...
- Page 31 Door Shelves The door shelves the door shelves...
- Page 32 SUPER...
- Page 33 running...
- Page 34 ,empty Ice Bin.
- Page 39 https://www.haier.co.nz/ https://www.haier.com.au/...
- Page 41 hinge You can adjust the height of the door by using a thin wrench with a 17mm opening via adjusting the nut at the bottom of the adju- stable hinge. Turn the nut clockwise to lower the PC door height and turn the nut counterclockwise to raise the PC door height.
- Page 44 Trade mark Haier Model No. HRF680YZC/ HRF680YZS Cooled Appliance Category of the model 220V-240V~/50Hz Voltage / Frequency Energy Star 4 Stars Frostfree system Product group Total product volume 601L 323L Fresh food compartment volume Freezer compartment volume 131L Convertible compartment volume...
