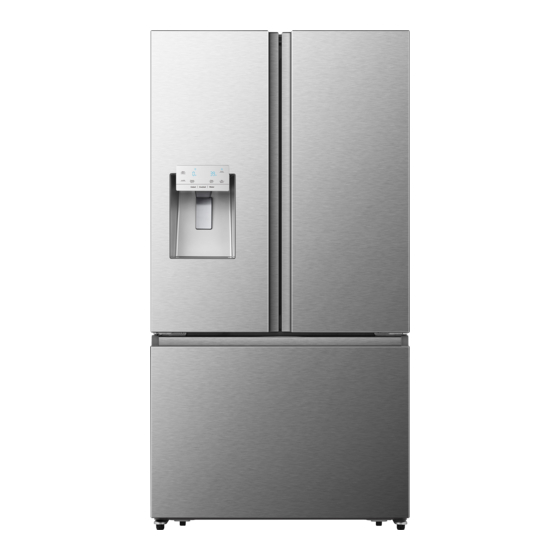

- Page 1 Refrigerator Use & Care Guide Model: HRF254N6T*E For questions about features, operation/performance, parts or service, call: 1-877-465-3566...
-
Page 2: Table Of Contents
Table of Contents Brief introduction ........................1 Important safety instructions ....................2 Installing your new appliance ....................4 Description of the appliance ....................10 Display controls ........................11 Using your appliance ......................14 Cleaning and care ....................... 1 Helpful hints and tips ...................... -
Page 3: Brief Introduction
Brief Introduction Thank you for your choosing Hisense. We Kitchen areas in shops, offices and other are sure you will find your new refrigerator working environments. a pleasure to use. Before you use the Hotels, motels and other residential appliance, we recommend that you environments. -
Page 4: Important Safety Instructions
Important Safety Instructions General safety and daily use Don’t place items on top of the appliance as this could cause injury should they fall off. It is important to use your appliance safely. We recommend that you follow the Never allow children to play with the guidelines below. - Page 5 If the fitted plug is not suitable for your To avoid eye injury, do not look directly socket outlets, it should be cut off and into the LED light located in the refrigerator carefully disposed of. To avoid a compartment. If it is not functioning possible shock hazard, do not insert the correctly, consult a qualified, registered discarded plug into a socket.
-
Page 6: Installing Your New Appliance
Installing Your New Appliance Before using the appliance for the first time, 2" 2" you should be informed of the following tips. WARNING For proper installation, this refrigerator must be placed on a level surface of 1/2" 1/2" hard material that is the same height as the rest of the flooring. - Page 7 Leveling of appliance Door Removal For sufficient leveling and air circulating In case your home access door is too in the lower rear section of the narrow for the refrigerator to pass appliance, the bottom feet may need through, remove the refrigerator doors to be adjusted.
- Page 8 4. Remove the 4 hex head bolts hinges (8 ) Remove the screws (5) fixed on the hinges with an Allen wrench (5/32",4mm). with a wrench (5/16",8mm) and 1 ground Remove the lower left and right door screw (6) attached to the hinge with hinges (9).
- Page 9 Remove the lower freezer drawer (12) Installing the water lines by lifting it up. A water dispenser with a filter is one of the helpful features on your new appliance. To help promote better health, the water filter removes unwanted particles from your water.
- Page 10 Connecting to the Flush the tubing. Turn the main water supply on and flush out the tubing until water supply line the water is clear. Then, shut the water off at the water valve after about a quart First, shut off the main water supply. of water has flushed through the tubing.
- Page 11 6. Turn the water on and check for leakage. CAUTION! Check to see if leaks occur at the water line connections Note: Use only the new tubing supplied with the refrigerator. Old tubing should not be used. After connected to the water supply line, please open the water valve to flush the filter for 5 minutes before use.
- Page 12 Freezer Lower Drawer Air Channel Automatic Ice Maker Hinge Cover Glass Shelf Door Bin Door Switch Foldable-Shelf Mullion Mullion Guide Block Crisper Cover Crisper Drawer Refrigerator LED Light Full-width Pantry Water Filter Freezer Upper Drawer...
-
Page 13: Display Controls
Display Controls Your product has one control panel which is installed on the fridge door. Use your appliance according to the following control guidelines. When the appliance is powered on for Child L ock and D oor Alarm the first time, the backlighting of the This button serves two purposes: icons on the display panel start working. - Page 14 Fridge Temperature Control can purchase the new filter from the retailer where you purchased your refrigerator or the Hisense after-sales service system. You can touch the “Fridge” button to Make sure that the new filter is the same change the fridge temperature.
- Page 15 °F/°C When the Child Lock is off, you can touch the “°F/°C” button to switch between Celsius and Fahrenheit units. The default state is Fahrenheit display. When it is switched to Fahrenheit, the icon " " will be on. Dispenser Control When the Child Lock is on, the dispenser will not work.
-
Page 16: Using Your Appliance
Using your Appliance This section tells you how to use most of Getting Crushed Ice the useful features. We recommend that you read through them carefully before To get crushed ice, push the crushed ice using the appliance. button as required. Then move your cup down the dispenser lever to the suggested position and press it. - Page 17 After turning on the water supply, check for leaks. If leaks occur, repeat the steps 1- 5. If leaks persist, discontinue use and call Hisense customer service. Removing any residual matter inside the water supply line after installing the water filter 1.
- Page 18 Note: CAUTION! Be sure to flush the dispenser thoroughly, otherwise water may drip from the Never close the refrigerator dispenser. This means that there is still air door while the shelves, crisper in the line. and/or telescopic slides are Do not dispense the entire 2.5 gallon extended.
- Page 19 To re-install the glass shelves, tilt the front of Using the freezer compartment the shelf up and guide the shelf hooks into the slots at a desired height (G). Then lower The freezer compartment is provided with the front of the shelf so that the hooks can an upper drawer and a lower drawer.
- Page 20 To remove the ice bucket, CAUTION • Do not apply excessive force to the 1. Gently lift it up, and then pull it out slowly bucket cover. The cover may break. while holding the bottom of the bucket with • Do not forcefully close the door. Water one hand and the side with the other hand.
-
Page 21: Cleaning And Care
Cleaning and Care Interior cleaning For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned at least Clean the appliance interior regularly. once every two months. It will be easier to clean when food stocks are low. Wipe the inside of WARNING! the fridge and freezer with a weak solution of baking soda and water, and... - Page 22 Replacing the LED light WARNING! Do not use sharp objects to WARNING! remove frost from the freezer compartment. Only after the The LED light must be replaced interior is completely dry should by a competent person. If the the appliance be switched back LED light is damaged, follow the on and plugged back into the steps below：...
-
Page 23: Helpful Hints And Tips
Helpful Hints and Tips Energy Saving Tips Hints for refrigeration We recommend that you follow the tips For Meat: (all types) wrap in cling wrap below to save energy. and place on the glass shelf above the vegetable drawer. Always follow food Avoid keeping the door open for long storage times and use by dates... - Page 24 Iced products (ice cubes, popsicles): if consumed immediately after removal from the freezer compartment, may cause frost burns to the skin. It is recommended to label and date each frozen package in order to keep track of the storage time. Hints for the storage of frozen food Ensure that frozen food has been stored...
-
Page 25: Troubleshooting
Troubleshooting If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. WARNING 1.Don’t try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service technician or the shop where you purchased the product. - Page 26 It is normal to frequently hear the sound of the motor. It will need to run more in the following circumstances: The temperature is set colder than necessary. A large quantity of warm food has recently been stored The motor runs within the appliance.
- Page 27 • Did you wait for 12 hours after installation of the water supply line before making ice? If it is not sufficiently cool, it may take longer to make ice, such as when first installed. • Is the water line connected and the water valve open? Did you manually stop the ice making function? Make maker...
-
Page 28: Disposal Of The Appliance
Disposal of the Appliance DANGER It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance 1. - Page 29 © 2020 Hisense Company Ltd. All Rights Reserved. All material in this User Manual is the property of Hisense Company Ltd. and its subsidiaries, and is protected under US, CANADA, MEXICO and International copyright and/or other intellectual property laws. Reproduction or transmission of the materials, in whole or in part, in any manner, electronic, print, or otherwise, without the prior written consent of Hisense Company Ltd.
