STEP 3
STEP 4
2
3
STEP 5
4
NOTE
Assemble the Pre-Corded Fiberglass Pole Short (#4) and insert into bottom of Strike Zone
Target (#3). There is a self-stick closure on bottom left to keep the pole in place.
STEP 6
YOU ARE NOW READY TO PLAY!
Made In China
Franklin Sports Inc.
Stoughton, MA 02072
PARTS
NOTE
At the ends of both
poles is a pin attached
by rings. Insert the pin
1
x2
into end of fiberglass
pole. Repeat 4x for
each corner.
PARTS
NOTE
Take Strike Zone
Target (#3) and attach
to strap and rotate to
3
x1
lock in. Repeat on
other side.
PARTS
3
3
4
PARTS
6
NOTE
Use Ground
Stakes (#6) for extra
stability when
needed.
|
Paper
Supporting
responsible forestry
C129299
120in x 84in x 60in (3m x 2.1m x 1.5m)

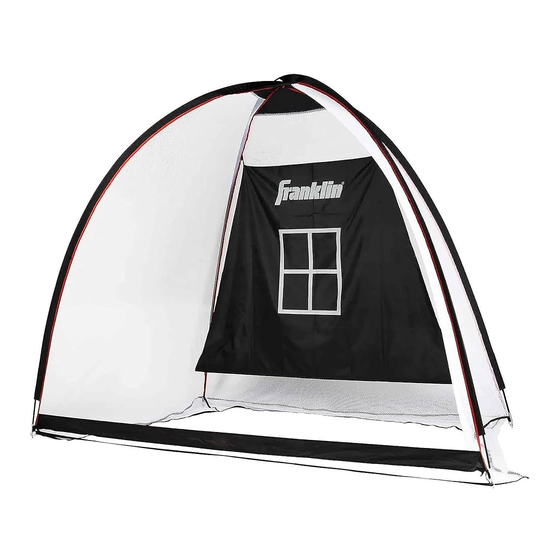

ALL-SPORT NET
ITEM NUMBER: 19060X
x1
x1
x4
CAUTION:
Adult assembly required.
NOTE: PRINT FRONT TO BACK
