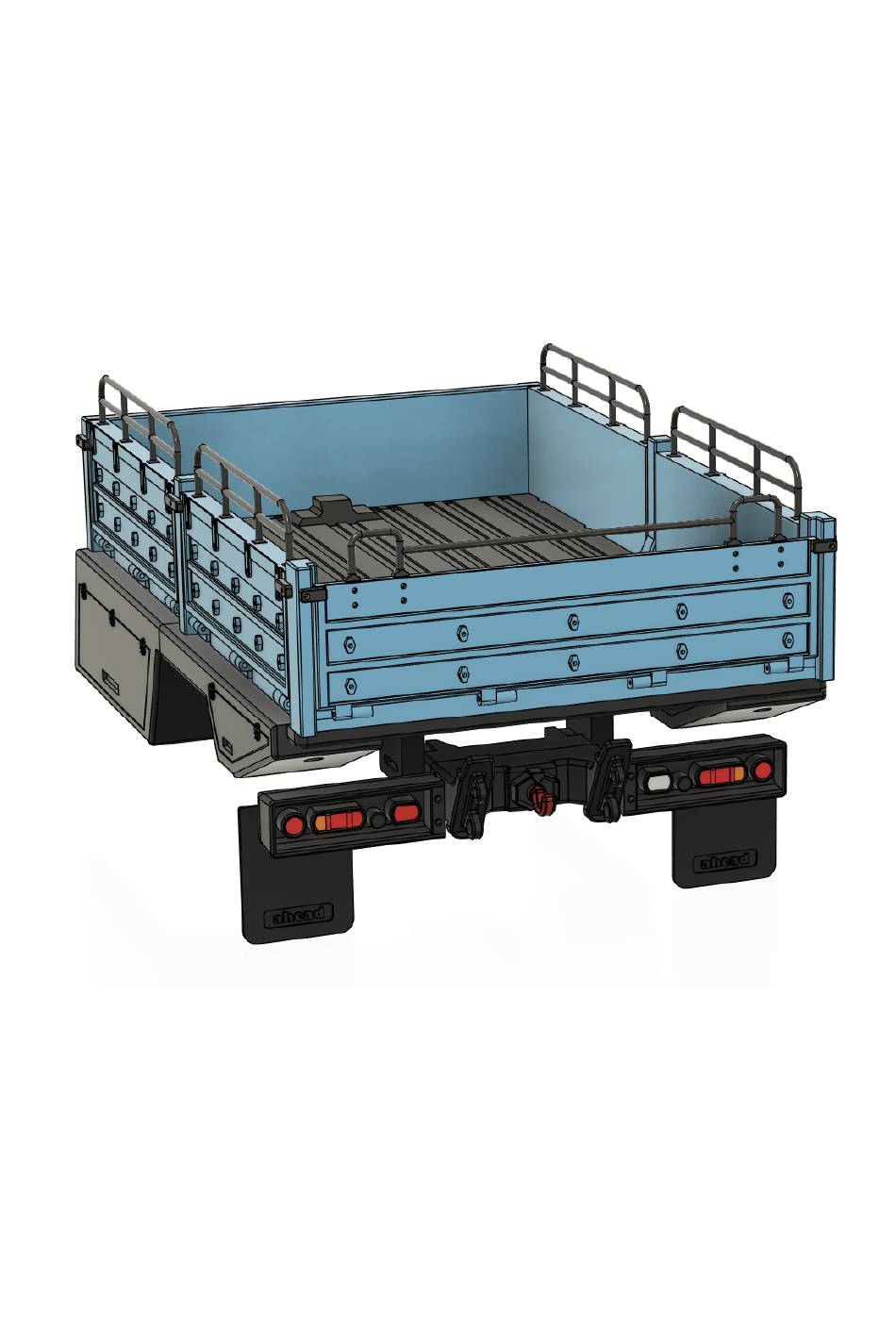

- Page 1 RC Crawler Cat 1 TRX4 Flatbed Assembly Manual ahead RC...
- Page 2 Required tools and hardware Tools 1.5mm Hex Driver 2.0mm Hex Driver 2.5mm Hex Driver Needle Nosed Pliers Instant Glue Hot Glue Electronics 3mm LED Orange x2 3mm LED Red x7 3mm LED White x1 Hardware Hardware Quantity Check M2*5 Socket head M2*10 Socket head M2*15 Socket head M3*10 Socket head M3*15 Socket head M3*20 Socket head M3*25 Socket head M3*10 Countersunk (CS) M3*15 Countersunk (CS) M3 Washer M3 Nut 12x4mm magnet (with countersunk hole) ahead RC...
-
Page 3: Before You Begin
Before you begin Be sure to read through the manual and familiarise yourself with the instructions Visualise a plan to assemble all the pieces Make sure you have all of the hardware and tools Be sure to have enough instant glue Dry fit all parts before painting and assembling Tip: It will help to paint all of the parts before final assembly ahead RC... - Page 4 Assembling the bed and sideboards M3x10mm CS 12x4mm magnet x1 M3x10mm x8 M2x15mm Repeat on all 4 sideboards ahead RC...
- Page 5 M2x15mm x4 Front M3x15mm CS ahead RC...
- Page 6 M3x15mm CS Repeat on all 4 pillars Repeat on all 4 side railings ahead RC...
- Page 7 M2x5mm x8 ahead RC...
- Page 8 Installing the mounts and fenders Repeat on the M3x10mm Front other mount M3x15mm x3 CS Repeat on the other side M3x10mm ahead RC...
- Page 9 M3x10mm Repeat on the other fender ahead RC...
- Page 10 Repeat on all 4 fender plugs ahead RC...
- Page 11 Assembling the bumper and mudflaps 3mm Red 3mm Orange LED x7 LED x2 3mm White LED x1 M3x10mm M3x15mm Repeat on the M2x10mm other side Repeat on the other side ahead RC...
- Page 12 Installing the sideboard locks and mock hinges Repeat on all 8 sideboard locks M2x10mm Repeat on all 10 mock hinges ahead RC...
- Page 13 Mounting the flatbed onto the chassis To battery Repeat on the tray other side M3 washer x6 M3x25mm M3x20mm ahead RC...
- Page 14 Assembling and installing the battery access hatch 12x4mm magnet x1 M3x10mm CS ahead RC...
- Page 15 Mounting the cab to the flatbed M3 washer x4 M3 nut x4 M3x15mm Secure mount into chassis rails M3x10mm ahead RC...
- Page 16 Secure screws through cab rear wall into front sideboard M3x15mm ahead RC...
- Page 17 Body is now fully complete. Thank you for selecting ahead RC products. If you have any questions or need help with the assembly, please do not hesitate to contact us at: aheadrc@gmail.com or visit us at: www.aheadrc.com Best of luck with your build! ahead RC...
