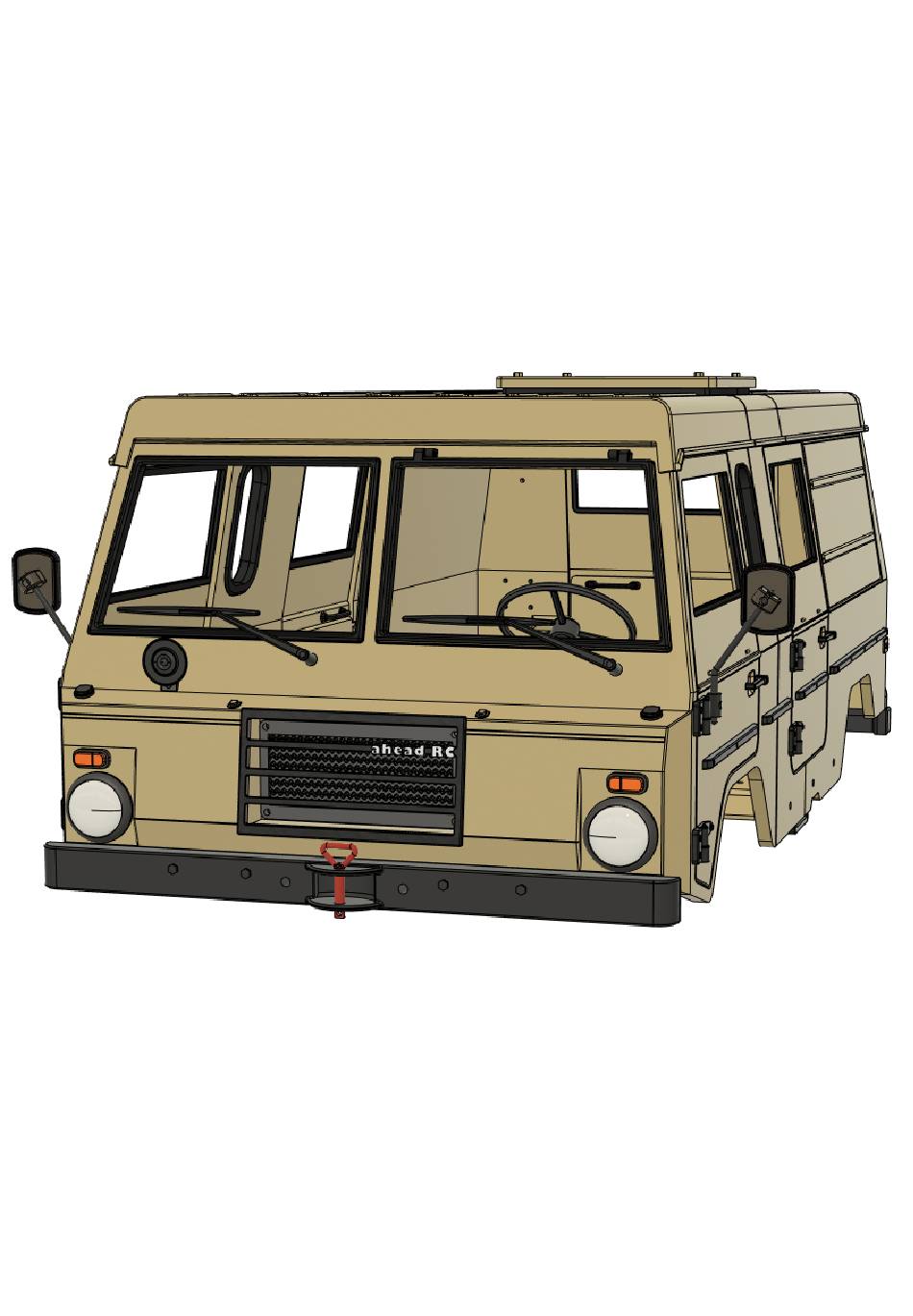

- Page 1 RC Crawler V303 Assembly Manual ahead RC...
- Page 2 Required tools and hardware Tools 1.5mm Hex Driver 2.0mm Hex Driver 2.5mm Hex Driver Needle Nosed Pliers Instant Glue Hot Glue Electronics 5mm LED White x3 5mm LED Red x2 3mm LED Orange x2 Hardware Hardware Quantity Check M2*5 Socket head M2*8 Socket head M2*10 Socket head M3*10 Socket head M3*15 Socket head M3*25 Socket head M3*10 Button head (BH) M3*15 Countersunk (CS) M3*3 Grub screw (GS) M3*10 Grub screw (GS) M3*20 Grub screw (GS) 1*6 Dowel Pin ahead RC...
-
Page 3: Before You Begin
Before you begin Be sure to read through the manual and familiarise yourself with the instructions Visualise a plan to assemble all the pieces Make sure you have all of the hardware and tools Be sure to have enough instant glue Dry fit all parts before painting and assembling Tip: It will help to paint all of the parts before final assembly ahead RC... - Page 4 Assembling the cab and door hinges M3x15mm x2 M2x5mm x20 Repeat on all 4 side doors ahead RC...
- Page 5 Repeat on the lower hinge. M2x5mm x4 ahead RC...
- Page 6 Assembling the doors Repeat on all 4 side doors Repeat on all 4 side doors ahead RC...
- Page 7 Repeat on all 4 side doors Rear door M2x5mm x4 Repeat on the lower hinge arm. ahead RC...
- Page 8 M2x10mm x4 ahead RC...
- Page 9 Installing the doors M2x10mm x8 Repeat on all 4 side doors M2x8mm x2 ahead RC...
- Page 10 Installing cab window presses and windshield 1x6mm Dowel Pin x2 ahead RC...
- Page 11 Installing the lights and mirrors Install 3mm Orange LED x2 Install 5mm White LED x2 M3x3mm GS x4 ahead RC...
- Page 12 Assembling the interior dashboard M3x10mm GS x2 M2x5mm x5 ahead RC...
- Page 13 M3x10mm x2 M3x10mm BH x2 ahead RC...
- Page 14 Installing the radiator and grille M2x8mm x2 ahead RC...
- Page 15 Installing the details Repeat on the other wiper and cap ahead RC...
- Page 16 Repeat on all 4 cab side guard bars Rear side Repeat on the other bracket ahead RC...
- Page 17 M2x8mm x9 Repeat on all 3 rear plate carriers M2x8mm x4 ahead RC...
- Page 18 Assembling the roof hatch M2x8mm x2 Repeat on the other hatch hinge M2x5mm x4 M2x8mm x2 ahead RC...
- Page 19 Assembling and installing the roof M3x15mm x2 ahead RC...
- Page 20 Installing the chassis mounts M3x15mm x6 Repeat on the other chassis mount Repeat on the other footstep M2x10mm x8 ahead RC...
- Page 21 Assembling and installing the exhaust M3x20mm GS x2 M3x15mm x2 ahead RC...
- Page 22 Assembling and installing the rear bumper M2x8mm x1 M2x5mm x4 Repeat on all 3 M3x10mm x1 rear lights 5mm Red LED x2 Repeat on the 5mm White LED x1 other shroud Repeat on all 3 lenses ahead RC...
- Page 23 M3x25mm x2 To chassis bumper mount ahead RC...
- Page 24 Assembling and installing the front bumper METHOD 1 M3x25mm x2 ahead RC...
- Page 25 Assembling and installing the front bumper METHOD 2 M3x15mm x2 M3x15mm CS x2 ahead RC...
- Page 26 Body is now fully complete. Thank you for selecting ahead RC products. If you have any questions or need help with the assembly, please do not hesitate to contact us at: aheadrc@gmail.com or visit us at: www.aheadrc.com Best of luck with your build! ahead RC...
