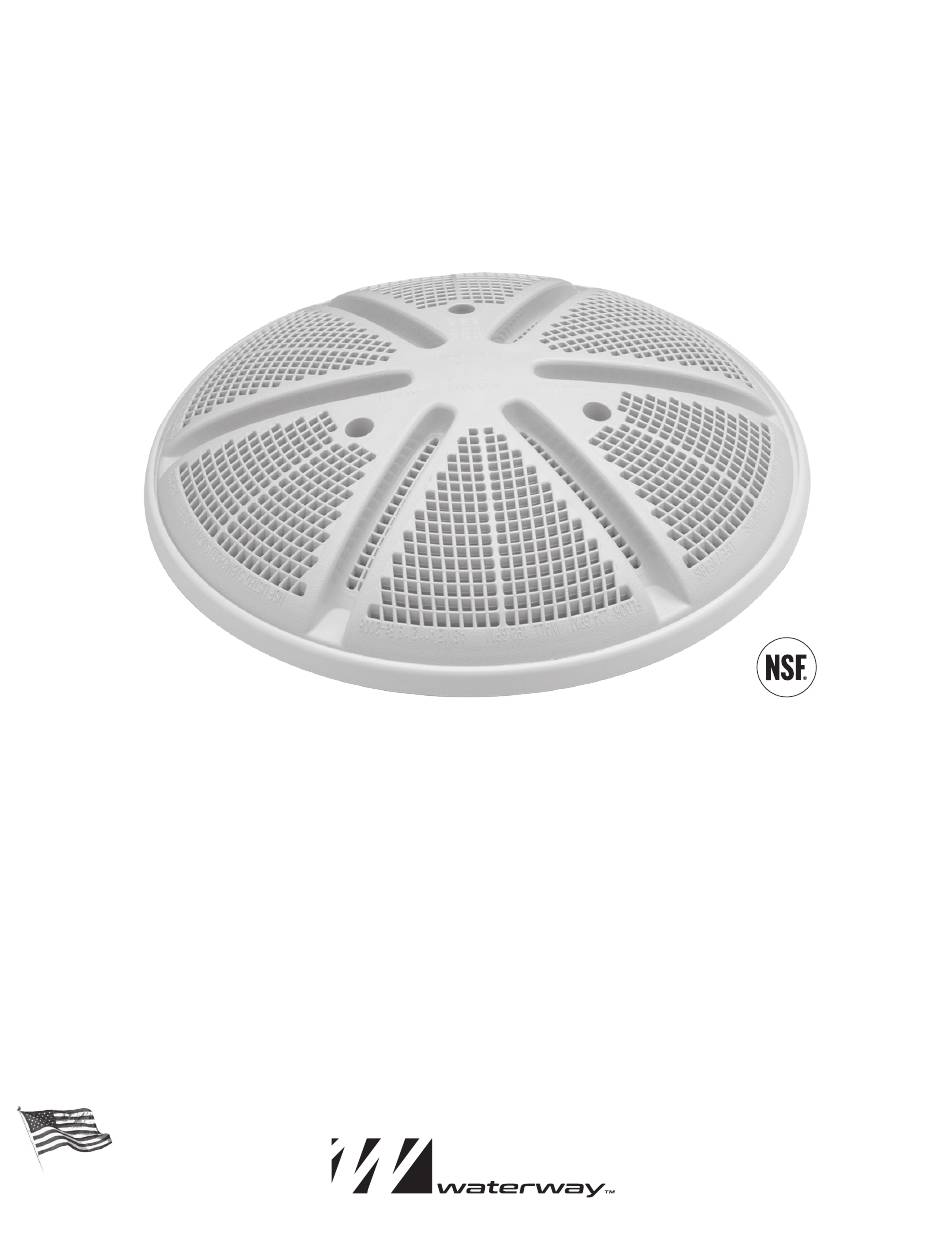

10" ULTRA RETRO VINYL SUCTION OUTLET
SUMPLESS
640-215x V
INSTALLATION INSTRUCTIONS
Designed,
Engineered &
Manufactured
in the USA.
2200 East Sturgis Road, Oxnard CA 93030 • Phone 805.981.0262 • Fax 805.981.9403
1
www.waterwayplastics.com • waterway@waterwayplastics.com
©2020 Waterway Plastics
810-0357.0521
Advertisement
Related Manuals for Waterway 640-215 Series
Summary of Contents for Waterway 640-215 Series
- Page 1 10" ULTRA RETRO VINYL SUCTION OUTLET SUMPLESS 640-215x V INSTALLATION INSTRUCTIONS Designed, Engineered & Manufactured in the USA. 2200 East Sturgis Road, Oxnard CA 93030 • Phone 805.981.0262 • Fax 805.981.9403 www.waterwayplastics.com • waterway@waterwayplastics.com ©2020 Waterway Plastics 810-0357.0521...
-
Page 2: These Instructions
191 gpm floor / 160 gpm wall Body Suction Entrapment: A negative pressure applied to a large portion of the body or limbs can result in an entrapment. USE ONLY GENUINE WATERWAY REPLACEMENT PARTS. ©2020 Waterway Plastics 810-0357.0521... - Page 3 • Do not exceed the safe flow rating of SOFAs as listed. • All SOFAs should be installed in accordance with Waterway installation instructions. • No modification shall be made to SOFA structure or flow path unless new configuration has been certified as a new SOFA.
- Page 4 Do not exceed the safe flow rate. Do not increase flow through system by increasing pump size or horsepower. Do not allow children to sit, play or interact with main drains or suction outlet. ©2020 Waterway Plastics 810-0357.0521...
- Page 5 OF THE POOL 215-8290 SUCTION PIPE OPENING 10.31 PVC Pipe: 3” Minimum Sump Depth: 0” Minimum Length Before Reduction: 16” Use Only Supplied Wallfitting: #215-8290 Minimum Pipe Offset: 3 1/4” Use of field fabricated sumps is not permitted. ©2020 Waterway Plastics 810-0357.0521...
- Page 6 If you do not have two underwater points of suction for each pump in your pool or spa, we recommend you contact a licensed pool builder or remodeler to install a second point of suction. ©2020 Waterway Plastics 810-0357.0521...
- Page 7 NUT, MEGA NUT 218-2561 TRI-SEAL COMPENSATING RING, POWER STREAM 642-3170 V COVER 10” RETRO VINYL LINER VGB2008 819-0913 #10 X 7/8” SECURITY SCREW PAN HD TORX DRIVE TYPE B 916-2140 10 INCH ULTRA RETRO METAL TRIM RING ©2020 Waterway Plastics 810-0357.0521...
- Page 8 For product registration visit: www.waterwayplastics.com. For Warranty questions or claims please contact point of purchase. Designed, Engineered & Manufactured in the USA. 2200 East Sturgis Road, Oxnard CA 93030 • Phone 805.981.0262 • Fax 805.981.9403 www.waterwayplastics.com • waterway@waterwayplastics.com ©2020 Waterway Plastics 810-0357.0521...
