Waterway 640-214 V Series Installation Instructions Manual

10" ultra retro vinyl suction outlet sumpless

Advertisement

Quick Links

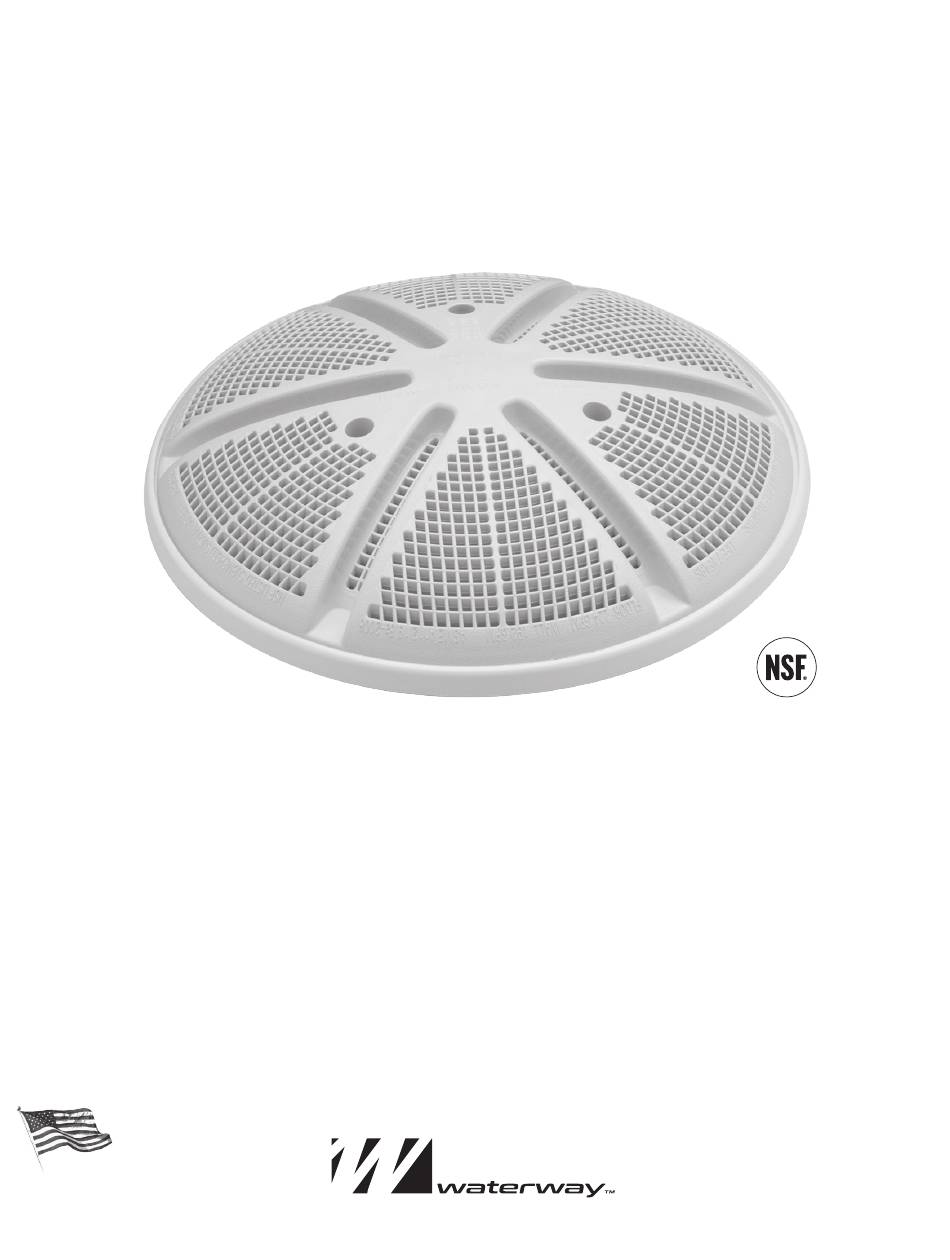

10" ULTRA RETRO VINYL SUCTION OUTLET
SUMPLESS
640-214x V
INSTALLATION INSTRUCTIONS
Designed,
Engineered &
Manufactured
in the USA.
2200 East Sturgis Road, Oxnard CA 93030 • Phone 805.981.0262 • Fax 805.981.9403
www.waterwayplastics.com • waterway@waterwayplastics.com
©2021 Waterway Plastics
810-0257-2017.0521

Advertisement

loading

Summary of Contents for Waterway 640-214 V Series

  • Page 1 10" ULTRA RETRO VINYL SUCTION OUTLET SUMPLESS 640-214x V INSTALLATION INSTRUCTIONS Designed, Engineered & Manufactured in the USA. 2200 East Sturgis Road, Oxnard CA 93030 • Phone 805.981.0262 • Fax 805.981.9403 www.waterwayplastics.com • waterway@waterwayplastics.com ©2021 Waterway Plastics 810-0257-2017.0521...
  • Page 2: These Instructions

    178 gpm floor / 132 gpm wall. Body Suction Entrapment: A negative pressure applied to a large portion of the body or limbs can result in an entrapment. USE ONLY GENUINE WATERWAY REPLACEMENT PARTS. ©2021 Waterway Plastics 810-0257-2017.0521...
  • Page 3 • Do not exceed the safe flow rating of SOFAs as listed. • All SOFAs should be installed in accordance with Waterway installation instructions. • Under no condition should SOFA special flow rating be exceeded while the pool is open.
  • Page 4 Do not exceed the safe flow rate. Do not increase flow through system by increasing pump size or horsepower. Do not allow children to sit, play or interact with main drains or suction outlet. ©2021 Waterway Plastics 810-0257-2017.0521...
  • Page 5 B - Minimum Sump Depth: 0” C - Minimum Ledge Depth: 1” D - Minimum Ledge Width: 1/2” E - Minimum Pipe Offset: 1/2” F - Minimum Length Before Reduction: 16” Pipe Orientation: Vertical to pool surface ©2021 Waterway Plastics 810-0257-2017.0521...
  • Page 6 6. Assorted screws and fasteners for attaching drain cover support plate to pool or spa surface (see Figure 1) See the following Installation Instructions to determine which components you will need to use for your installation. QTY. Figure 1 ©2021 Waterway Plastics 810-0257-2017.0521...
  • Page 7 Screw Slot Cover 819-0910 #10 x 5/8" Self-Threading Screw 819-0912 #10 x 7/8" Self-Threading Screw 819-0911 #10 x 1 1/4" Self-Threading Screw 819-0999 #8-32 x 3/4" Screw 642-3180 Support Plate 642-3220B Spacer Bushing 642-3240 Vinyl Ring ©2021 Waterway Plastics 810-0257-2017.0521...
  • Page 8: Installation Instructions

    CAUTION: If the sump has brass inserts in it for machine screws DO NOT install; call Waterway for instructions. 6. Use the provided self-threading screws according to the following table (below). Apply 24 ft-lbs to self-threading screws. Ensure proper fit and no play.
  • Page 9 7. Attach the drain cover (#2) to the drain cover support plate (#8) using the tool and the three 10 x 7/8 security screws provided. Waterway requires the use of security screws to secure the cover. Apply 20 In-Lbs torque to three Torx Security Screws on the cover.
  • Page 10 For product registration visit: www.waterwayplastics.com. For Warranty questions or claims please contact point of purchase. Designed, Engineered & Manufactured in the USA. 2200 East Sturgis Road, Oxnard CA 93030 • Phone 805.981.0262 • Fax 805.981.9403 www.waterwayplastics.com • waterway@waterwayplastics.com ©2021 Waterway Plastics 810-0257-2017.0521...
