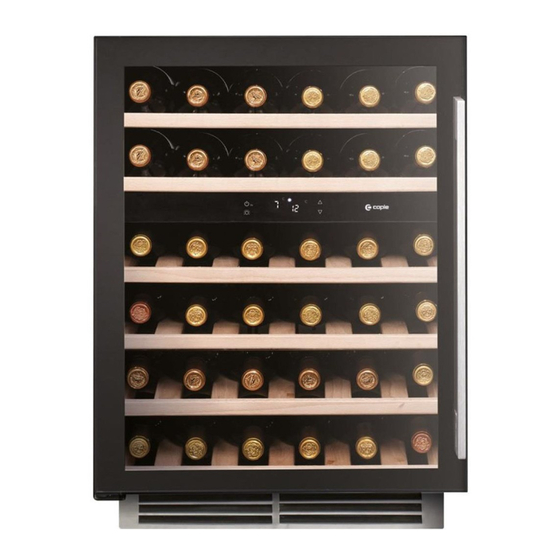

Caple WI6136 Instruction Manual
Undercounter wine cabinet
Hide thumbs
Also See for WI6136:
- Instruction manual (15 pages) ,
- Instruction manual (32 pages) ,
- Instruction manual (32 pages)
Subscribe to Our Youtube Channel
Related Manuals for Caple WI6136
Summary of Contents for Caple WI6136
- Page 1 U n d e r c o u n t e r W i n e C a b i n e t I n s t r u c t i o n M a n u a l WI6135 & WI6136 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
Fitting a Slot-on Plinth Grille Wine Bottle Stacking Installation Dimensions Installing The Top Fixing Bracket Using The Foot Sliders Care and Maintenance Troubleshooting Recommended Temperatures Caple Contact Details Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference... -
Page 3: Introduction
Thank you for choosing this Caple Wine Cabinet. To ensure that you get the best results from your new wine cabinet, we strongly suggest that you read this instruction manual thoroughly before use. If treated with care, your Caple product should give you years of trouble-free use. -
Page 4: Safety Instructions
- If the supply cord is damaged, it must be replaced by a Caple service agent or a similarly qualified person in order to avoid a hazard. - This product is not designed for commercial use, it is a household appliance only. - Page 5 I M P O R T A N T Caple cannot be held liable for any non compliance with these instructions. E L E C T R I C A L S H O C K H A Z A R D - Read all instructions before using the wine cabinet.
- Page 6 - Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. - Do not damage the refrigerant circuit. Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference...
- Page 7 - Do not use electrical appliances inside the storage compartments of the appliance,unless they are the type recommended by the manufacturer. Symbol ISO 7010 W021 Warning; Risk of fire / flammable materials Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference...
-
Page 8: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. -
Page 9: Installation
Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion. When disposing your appliance, please choose an authorised disposal site. › Avoid locating the unit in moist areas. Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference... - Page 10 Caple service. WA R N I N G : Incorrect earthing can result in the risk of electric shock. 10 Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference...
-
Page 11: Operating Your Wine Cabinet
LED readout. This is normal and it is due to the length of the activation time. Once the wine cabinet has been running for a few hours everything will be back to normal. Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference... -
Page 12: Control Panel
LED display for 5 Seconds. After this it will revert back to the set temperature. , the previous temperature setting is automatically erased and it will default 12 Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference... - Page 13 N OT E : The light must be replaced by qualified personnel. For instructions on how to replace the light, please contact Caple Service or visit our website. Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference...
-
Page 14: Using The Shelves
Visit our Caple website to view a ‘How to video’ on this. www.caple.co.uk ple website to view a 'How to video' on this. www.caple.co.uk Scan the QR code below to access the ‘How to video’... -
Page 15: How To Change The Door Opening
(12) to block the hole a of cabinet with 3 screws. (Fig. D) of cabinet with 3 screws. (Fig. D) Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference 5. According above procedure, install spare lower hinge (left) (9). (Fig. E) - Page 16 The door revolves 180 degrees, install the door with same way it was removed and fix it with door aligned. 7. Block the hole at right top of cabinet with spare decorative plugs (8). 16 Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference...
-
Page 17: Installing The Handle
Remove the door gasket on the drilled holes side to install the handle. (see below drawing). Fix the handle to the screws and push the gasket back into place. Visit our caple website to view a ‘How to video’ at WWW.CAPLE.CO.UK Scan the QR code below to access the ‘How to video’... -
Page 18: Installing The Full Height Grille
(see Installing a slot-on plinth grille) should be used. Full height plinth grille only included with WI6135 models. 18 Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference... -
Page 19: Fitting A Slot-On Plinth Grille
Failure to include the vent slot will invalidate the guarantee. NOTE: 55mm 490mm 55mm 490mm Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference... -
Page 20: Wine Bottle Stacking
If you wish to store other style bottles i.e champagne, the maximum storage capacity will be less than as shown above. Shelves may also need to be removed to allow more bottles to be stored. 20 Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference... -
Page 21: Installation Dimensions
I N S T A L L A T I O N D I M E N S I O N S Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference... -
Page 22: Installing The Top Fixing Bracket
After installing the wine cabinet, please open the door, adjust the fixing bracket and fix this into the work surface with three screws using a screwdriver. A. Top Fixing Bracket B. Work Surface C. Screw D. Screwdriver 22 Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference... -
Page 23: Using The Foot Sliders
‘Front’. Once fitted to both sides of the wine cabinet the appliance can be gently positioned into the aperture, taking care not to place excess pressure on the feet when locating the cabinet. Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference... -
Page 24: Care And Maintenance
Clean and dry the interior thoroughly. To prevent odour and mould growth, leave the door open slightly (blocking it open if necessary). 24 Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference... - Page 25 If this is not noticed, it can cause excess moisture to build up in the cabinet which in extreme cases can lead to the evaporation tray overflowing. Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference...
-
Page 26: Troubleshooting
The door was reversed and not properly installed. The gasket is dirty. The shelves are out of position. If the above table has not solved the problem please contact Caple Service by phone on 0117 938 7420 or by email service@caple.co.uk 26 Instruction manual Wi6135 & Wi6136... - Page 27 For more info and to order spares, please contact Caple service or visit our website www.caple.co.uk. Instruction manual Wi6135 & Wi6136...
-
Page 28: Recommended Temperatures
Red Pinot Noir 16˚C Vintage Pinot Noir red 18˚C Red Cabernet, Merlot, French, Australian, 18˚C New Zealand, Chilean, Argentinean, Italian, Spanish, Californian Red Grenache, Syrah 16˚C 28 Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference... - Page 29 N OT E S : Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference...
- Page 30 N OT E S : 30 Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference...
- Page 31 N OT E S : Instruction manual Wi6135 & Wi6136 Please keep this instruction manual for future reference...
-
Page 32: Caple Contact Details
Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
