Caple Wi6123 Instruction Manual

Caple Wi6123 Instruction Manual

Slot-in wine cabinet
Hide thumbs Also See for Wi6123:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

See also: Instructions for Use Manual
Instruction manual for Wine Cabinet
Wi6123 Slot-in
Contact Caple on 0844 800 3830 or for spares www.caple.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wi6123 and is the answer not in the manual?

Questions and answers

Related Manuals for Caple Wi6123

Summary of Contents for Caple Wi6123

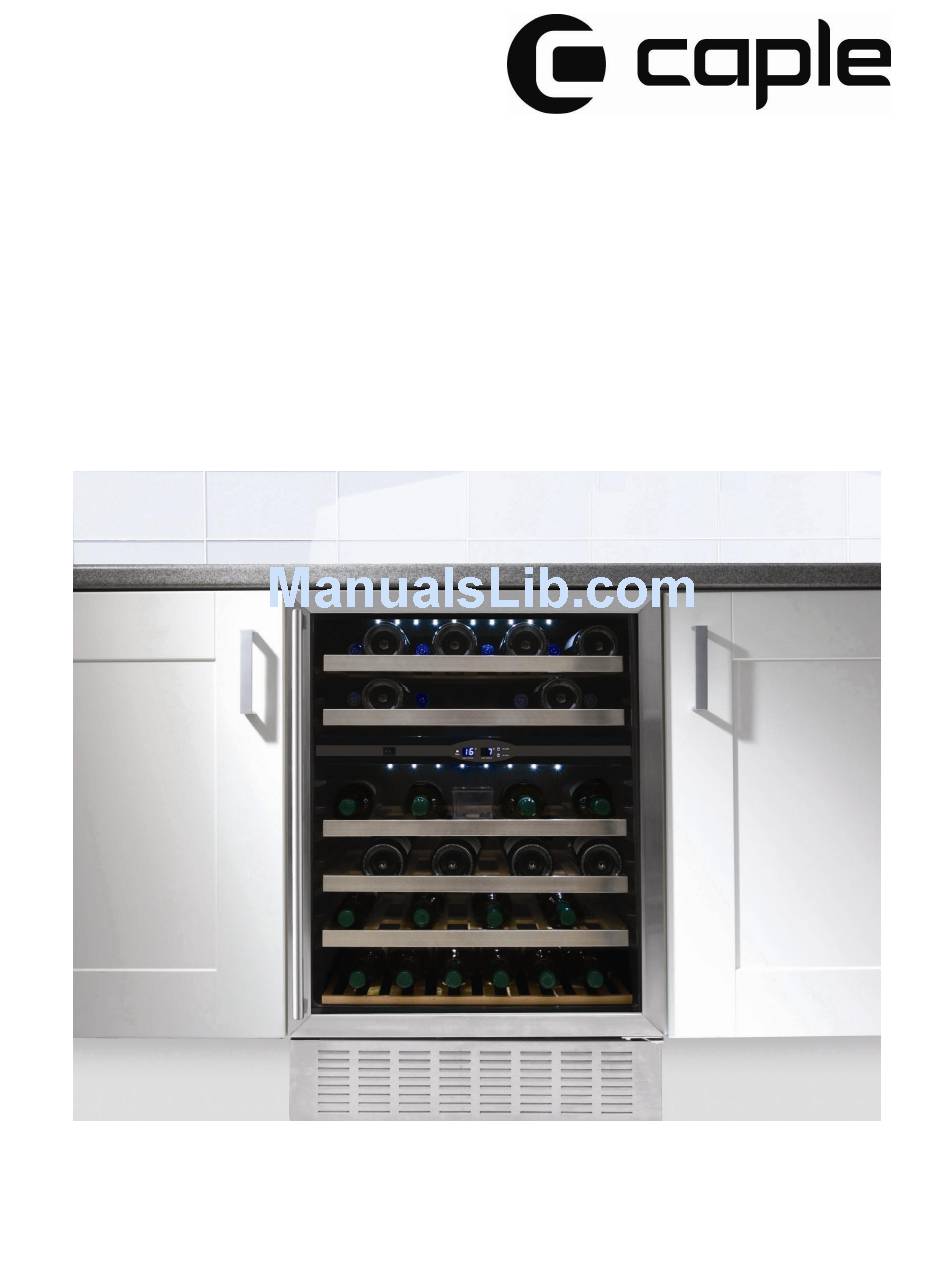

  • Page 1 Instruction manual for Wine Cabinet Wi6123 Slot-in Contact Caple on 0844 800 3830 or for spares www.caple.co.uk...

  • Page 2: Important Warnings And Advice

    Thank you for buying your new CAPLE Wine Cabinet. To ensure that you get the best results from your new purchase, we strongly suggest that you read this instruction manual thoroughly before use. This manual contains installation advice, usage instructions and other important facts about your CAPLE Wine Cabinet.

  • Page 3: Installation Instructions

    INSTALLATION INSTRUCTIONS BEFORE TURNING THE WINE CABINET ON ENSURE IT IS PERFECTLY LEVEL. This will minimise any vibrations. Your cabinet is equipped with 4 adjustable feet. However, we recommend that you tighten the back feet to the maximum and then use the front feet to level the cabinet. IMPORTANT: STAND THE WINE CABINET VETICALLY AND WAIT 12 HOURS BEFORE SWITCHING IT ON FOR THE FIRST TIME.
  • Page 4 OPERATING INSTRUCTIONS The wine cabinet should be placed where the ambient temperature is between 5-35 deg centigrade (41-95 degrees Fahrenheit). If the ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate and the range of 5-18 ºC (41-65 degrees Fahrenheit) may not be reached.
  • Page 5 7. Flashing LED = Set Temperature 8. Steady LED = Cabinet Temperature 9. This unit has the option to display temperatures in either Celsius or Fahrenheit. To change the setting, press and hold both buttons (Set Upper/Set Lower) simultaneously for approximately 5 seconds, a prompt (beep) will sound and the blue pilot light adjacent to the C or F mode illuminates.
  • Page 6 Fig.A Fig.B Fig.C Fig.D Fig.E • Bottom hinge (Right) • Screws • Door axis • Door • Top hinge (Right) • Lock screws • Top hinge (Left) • Bottom hinge (Left) Remove 2 screws •, then pull door • as per arrowhead direction and you will remove the door. Please remove bottom hinge (Right) •...

  • Page 7: Humidity Maintenance System

    DEFROSTING/CONDENSATION Your wine cabinet is designed with an “Auto-cycle” defrost system. When the RUN cycle is OFF, the refrigerated surface of the wine cabinet (interior rear wall) defrosts automatically. The defrost water is channeled into a drain pan which is located at the back of the wine cabinet next to the compressor from where it evaporates.

  • Page 8: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE You can solve many common wine cabinet problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the service engineer. PROBLEM POSSIBLE CAUSE The wine cabinet does not operate.

  • Page 9: Recommended Temperature Settings

    RECOMMENDED TEMPERATURE SETTINGS For keeping ALL TYPES OF WINES c to 14 Champagne NV, Sparkling Champagne Vintage Dry White Semillon, Sauvignon Blanc Dry White Gewurstraminer, Riesling Dry White Chardonnay Vintage chardonnay Sweet White Sauternes Monbazillac, Late Harvest ice wine Sweet whites vintage Sauternes Beaujolais Red Pinot Noir Vintage Pinot Noir red...

This manual is also suitable for:

Wi6124 slot-in
