- Page 1 BO9436 S-A INSTRUCTION MANUAL IO-CBI-2617 / 8514525 (12.2023 / v2)
- Page 2 DEAR CUSTOMER, The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy. Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ..................... 8 Installation ......................... 10 Operation ........................... 12 Baking in the oven – practical hints ................18 Test dishes...........................21 Cleaning and maintenance ....................23 Technical data ........................28... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning... - Page 5 SAFETY INSTRUCTIONS Danger of burns! Hot steam may escape when you open the oven door. Be careful when you open the oven door during or after cooking. Do NOT lean over the door when you open it. Please note that depending on the temperature the steam can be invisible.
- Page 6 HOW TO SAVE ENERGY Using energy in a respon- sible way not only saves money but also helps the environment. So let’s save energy! And this is how you can do it: ● Do not uncover the pan too often (a watched pot never boils!).
- Page 7 DISPOSAL OF THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpack- be delivered to a collection and ing, please dispose of all recycling centre for electric and elements of packaging in a...
-
Page 8: Description Of The Appliance

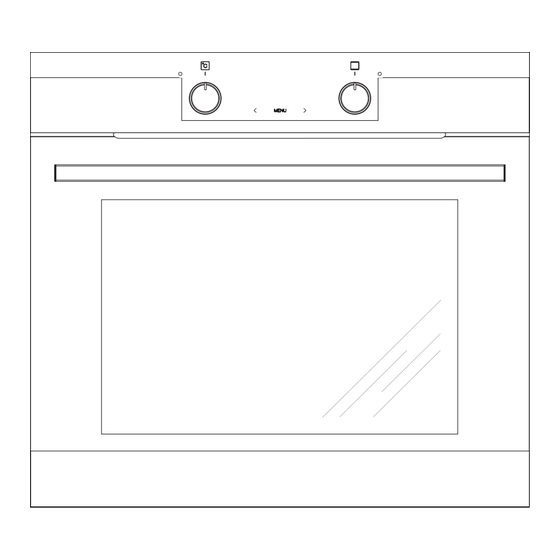

DESCRIPTION OF THE APPLIANCE Electronic programmer Temperatureregulator Cooker operation signal light L signal light R Temperature adjust- Oven function ment knob selector knob... - Page 9 SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Grill grate Baking tray (drying rack) Roasting tray Sideracks...
-
Page 10: Installation
INSTALLATION Installing the oven Electrical connection ● The kitchen area should be dry and aired and equipped with efficient ventillation. ● The oven is manufactured to work with When installing the oven, easy access to a one-phase alternating current (230V all control elements should be ensured. - Page 11 INSTALLATION 5 5 0 4 2 9 m a x 5 7 0 5 9 5 5 9 5 1 0 3 4 5 0 0 5 6 0 6 0 0 . 5 5 m i n 5 6 0...
-
Page 12: Operation
OPERATION Before using the oven for the first time Important! In ovens equipped with the electronic Remove packaging, clean the interior of programmer Ts, the time “0.00” will the oven and the hob. start flashing in the display field upon ... - Page 13 OPERATION Electronic timer Kitchen Timer You can active the Kitchen Timer at any time, regardless of the status of other functions. The Kitchen Timer can be set from 1 minute up to 23 hours and 59 minutes. To set the Kitchen Timer: l Touch , then the display will show MENU...
- Page 14 OPERATION l Set the oven function selector knob and l Use the < / > sensors to select your pre- the temperature selector knob in off posi- ferred brightness: tion., Use > to select the setting 1 to 9 l Touch and hold or simultaneously Use <...
- Page 15 OPERATION Oven functions and operation. Oven is off Oven with automatic air circulation Rapid Preheating (including a fan and top and bottom Top and bottom heater, roaster and fan heaters) on. Use to preheat the oven. The oven can be warmed up using the bottom and top heaters, as well as the grill.
- Page 16 OPERATION Bottom heater on Switching on the oven is indicated by two When the knob is set to this position signal lights, R, L, turning on. The R light the oven is heated using only the turned on means the oven is working. If the L bottom heater.
- Page 17 OPERATION Use of the grill The grilling process operates through infrared rays emitted onto the dish by the incandes- cent grill heater. In order to switch on the grill you need to: l Set the oven knob to the position marked grill l Heat the oven for approx.
-
Page 18: Baking In The Oven - Practical Hints
BAKING IN THE OVEN – PRACTICAL HINTS Baking ● we recommend using the baking trays which were provided with your cooker; ● it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;... - Page 19 BAKING IN THE OVEN – PRACTICAL HINTS ECO Heating ECO Heating an optimised heating function designed to save energy when preparing food. You cannot reduce the cooking time by setting a higher temperature; preheating the oven is not recommended. Do not change the temperature setting and do not open the oven door during cooking.
- Page 20 BAKING IN THE OVEN – PRACTICAL HINTS Oven with automatic air circulation (including a fan and top and bottom heaters) Type of Type Temperature ( Level Time (min.) dish of heating Sponge cake 160 - 200 2 - 3 30 - 50 Sponge cake 25 - 35 Yeast cake/...
-
Page 21: Test Dishes
TEST DISHES. According to standard EN 60350-1. Baking Type of dish Accessory Level Type Temperature Baking of heating time (min.) Baking tray 28 - 32 Baking tray 23 - 26 Baking tray 26 - 30 Small cakes 2 + 4 Baking tray 2 - baking tray 27 - 30... - Page 22 TEST DISHES. According to standard EN 60350-1. Grilling Type of dish Accessory Level Type Temperature Time of heating (min.) White bread Wire rack 3 - 7 toast Wire rack + 4 - wire rack roasting tray 1st side 13 - 18 Beef burgers 3 - roasting (to gather...
-
Page 23: Cleaning And Maintenance
CLEANING AND MAINTENANCE Replacing the halogen bulb in the oven By ensuring proper cleaning and mainte- nance of your cooker you can have a sig- Before replacing the halogen bulb, make nificant influence on the continuing fault-free sure the appliance is disconnected from operation of your appliance. - Page 24 CLEANING AND MAINTENANCE l Ovens in cookers marked with the letter D are equipped with easily removable wire shelf supports. To remove them for washing, pull the front catch, then tilt the support and remove from the rear catch. Removing wire shelf supports Installing wire shelf supports...
- Page 25 CLEANING AND MAINTENANCE Removing the inner panel Door removal 1. Pull the upper door slat loose. (fig. B, C) In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards (fig.
- Page 26 CLEANING AND MAINTENANCE 2. Pull the inner glass panel from its seat Regular inspections (in the lower section of the door). Re- move the inner panel (fig. D). Besides keeping the oven clean, you 3. Clean the panel with warm water with should: some cleaning agent added.
- Page 27 OPERATION IN CASE OF EMERGENCY In the event of an emergency, you should: ● switch off all working units of the oven ● disconnect the mains plug ● call the service centre ● some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre check the following points that are presented in the table.
-
Page 28: Technical Data
TECHNICAL DATA Voltage rating 230V~50 Hz Power rating max. 3,5 kW Cooker dimensions H/W/D 59,5 / 59,5 / 57,5 cm The product meets the requirements of European standards EN 60335- 1; EN60335-2-6. The data on the energy labels of electric ovens is given according to standard EN 60350-1 / IEC 60350-1.
