This system shall be installed in accordance with:
• Manufacturer's Installation Instructions
• Current AS/NZS 3500
• All applicable local rules and regulations including local OH&S requirements
This system must be installed, commissioned and serviced by an Authorised Person.
The solar hot and solar cold pipes between the solar storage tank
and the solar collector(s) must be copper tube. Fittings used to
join these pipes must use metallic materials to acheive sealing.
Plastic pipe and fittings must not be used as they are not suitable
for the high temperatures and pressures that may occur.
IMPORTANT
Failure of plastic pipe and/or fittings can lead to the release of high
temperature water and can cause sever flooding and water damage.
Not suitable as a pool or spa heater.
Operation Installation Manual

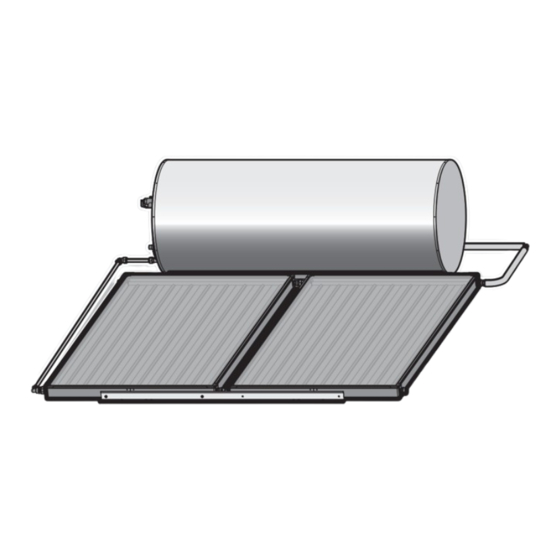

Close Coupled
Solar Hot Water Systems -
Enduro SP200B and
Excelsior SP200BEX Collectors
All Rinnai gas products
are A.G.A. certified.
W169
SAI Global
AS/NZS 2712
Lic No.1849
SAI Global
Issue
3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rinnai Excelsior SP200BEX
Summary of Contents for Rinnai Excelsior SP200BEX
- Page 1 Operation Installation Manual Close Coupled Solar Hot Water Systems - Enduro SP200B and Excelsior SP200BEX Collectors This system shall be installed in accordance with: • Manufacturer’s Installation Instructions • Current AS/NZS 3500 • All applicable local rules and regulations including local OH&S requirements This system must be installed, commissioned and serviced by an Authorised Person.
-
Page 2: Table Of Contents
Roof Mounting Options ������������������������������������������������������������������������������������������������������������������������������������� 21 Standard Installation ����������������������������������������������������������������������������������������������������������������������������������������� 24 Roof pitch greater than 30° ������������������������������������������������������������������������������������������������������������������������������ 28 Framed Installations - Cyclone Frame ������������������������������������������������������������������������������������������������������������� 29 Framed Installations - Flat, Reverse and Side Pitch ���������������������������������������������������������������������������������������� 29 Connecting Fittings to Collector ����������������������������������������������������������������������������������������������������������������������� 31 Rinnai CC B OIM... - Page 3 Gas Booster Location ��������������������������������������������������������������������������������������������������������������������������������������� 48 Gas Supply ������������������������������������������������������������������������������������������������������������������������������������������������������� 48 Hot Water Delivery Temperature ���������������������������������������������������������������������������������������������������������������������� 48 SMARTSTART® ����������������������������������������������������������������������������������������������������������������������������������������������� 48 System Using Rinnai SmartStart ���������������������������������������������������������������������������������������������������������������������� 49 Gas Booster Clearances ���������������������������������������������������������������������������������������������������������������������������������� 50 Installation Procedure ��������������������������������������������������������������������������������������������������������������������������������������� 51 Filling the System ��������������������������������������������������������������������������������������������������������������������������������������������� 52 Pre Solar Heating Checks �������������������������������������������������������������������������������������������������������������������������������� 52 Solar Heating ����������������������������������������������������������������������������������������������������������������������������������������������������...
-
Page 4: Warnings And Important Information
Care should be taken not to touch the pipe work as it may be HOT! The pipes between the solar collectors and storage cylinder MUST BE copper or an equivalent metallic material specified by Rinnai. Plastic pipe is NOT suited to the water temperatures and pressures that may occur in the system�... -
Page 5: Scald Hazards
Installing tempering valves or thermostatic mixing valves which reduce the hot water temperatures deliveredtothetaps.Yourlocalplumbingauthoritymayalreadyrequirethatthesebefitted.Contactour installer or local plumbing authority if in doubt. NEVER…. Leave a toddler in the care of another child. They may not understand the need to have the water temperature set at a safe level. Rinnai CC B OIM... -
Page 6: Operation Principle
STORAGE CYLINDER STORAGE CYLINDER COLLECTORS COLLECTORS COLD WATER HOT WATER COLD WATER SUPPLY DELIVERY SUPPLY GAS BOOSTER HOT WATER GAS SUPPLY DELIVERY Glass Lined Gas Boosted Solar Hot Water System Glass Lined Electric Solar Hot Water System Rinnai CC B OIM... -
Page 7: Safety Devices
If the valve leaks continuously, try easing the valve gear for a few seconds� This may dislodge any foreign matter and alleviate the problem� If this does not alleviate the problem contact Rinnai� Operate the easing gear regularly to remove any lime deposits and to verify that it is not blocked�... -
Page 8: Gas Boosters
Switch on the electric supply to the supplementary heating element(s)� The switch is usually marked and located in the electricity meter box of the dwelling� Gas Boosted systems • Switch on the electrical supply to the gas booster� Rinnai CC B OIM... -
Page 9: Water Quality
This does not apply to Stainless Steel cylinders� Anodes suited to hard and soft water, are available from Rinnai� If the electric conduit, power supply cord or plug to the water heater is damaged, they must be replaced by an authorised person in order to avoid a hazard. -
Page 10: Save A Service Call
Before contacting Rinnai for service, please follow the fault finding guide. If the problem persists or this information doesn’t answer your questions, contact Rinnai on the phone number on the back of this manual Service call outs attending to any condition or fault that is not related to Rinnai product or components may be chargeable�... - Page 11 The noise may be similar to a boiling kettle, or an expanding contracting metallic sound� The collector is designed to withstand these conditions, and no action is needed, unless it is extreme� Contact Rinnai to discuss if you have any concerns�...
-
Page 12: Specifications
Mass of Cylinder (filled) (empty) Stainless steel 180 litre 40 kg 225 kg Stainless steel 330 litre 80 kg 412 kg Glass lined 200 litre 77 kg 277 kg Glass lined 330 litre 104 kg 434 kg Rinnai CC B OIM... -
Page 13: System Dimensions - Stainless Steel Cylinders
SYSTEM DIMENSIONS - STAINLESS STEEL CYLINDERS 1450 2470 1200 1200 2175 1050 2470 3600 2090 2090 2175 3310 1960 2580 * * This dimension may vary slightly depending on the installed spacing between the cylinders and the collectors� Rinnai CC B OIM... -
Page 14: System Dimensions - Glass Lined Cylinders
SPECIFICATIONS SYSTEM DIMENSIONS - GLASS LINED CYLINDERS 2470 1140 1140 1050 2175 1735 1735 2175 3310 1960 2610 * * This dimension may vary slightly depending on the installed spacing between the cylinders and the collectors� Rinnai CC B OIM... -
Page 15: Solar Collectors
1�25 kW 1�25 kW PTR relief conditions (kW) The Rinnai solar hot water warranty booklet specifies the locations and conditions that apply for flat plate collectors to be warranted against frost damage� In locations where the warranty booklet specifies that frost valves must be used, they must be fitted for warranty to apply. -
Page 16: Gas Boosters
1 Units will operate at lower pressures but the rated flow will not be achieved. 2 Gas boosters for Solar hot water applications must be set by Rinnai to deliver a minimum temperature of 70°C� Solar Gas boosters will be marked as Solar� Units not marked ‘Solar’ MUST NOT be used, and will invalidate warranty� See warranty booklet for more details�... -
Page 17: Installation - All Systems
& products of combustion are rapidly dispersed by wind and natural convection� If an internal model which has been converted to a solar gas booster follow information supplied with the unit for location, mounting and flueing requirements. Rinnai CC B OIM... -
Page 18: Water Pipes, Fittings And Insulation
Such insulation may also be mandatory under local regulations� Rinnai recommend insulation to achieve at least the R value shown in the following table� Hot pipe between tank Cold pipe between tank and collectors and collectors�... -
Page 19: Hot Water Delivery Temperature
An isolating valve and connection union for the gas supply to the gas booster� • An approved pressure limiting valve (supplied with some systems) is required if the maximum rated water supply pressure on page 12 is exceeded� Rinnai CC B OIM... -
Page 20: System Orientation And Inclination
°S Darwin °S Perth °S Alice Springs °S Dubbo °S Port Hedland °S Brisbane °S Geraldton °S Rockhampton °S Broken Hill °S Hobart °S Sydney °S Cairns °S Mildura °S Townsville °S Latitudes of Australian Cities Rinnai CC B OIM... -
Page 21: Roof Mounting Options
For roofs with a slope of 10° or less a flat roof frame must be used. Rinnai do not recommend installing Close Coupled systems on roofs with a pitch greater than 30°� An additional strap should be used to prevent the cylinder from tipping over if a system is installed in this manner� Refer page 28�... - Page 22 INSTALLATION - ALL SYSTEMS Mounting Location Suitability The following table indicates which installation locations are suitable for different roof mounting options for Rinnai close coupled solar hot water systems� Region Region Region Region Wind Region Roof Area Area Area Area...
- Page 23 Area 2 Area 1 Area 3 In both examples : A = min of 0�2 x 20�3 = 4�06 0�2 x 12�1 = 2�42 1 x 3�8 = 3�8 è A = 2�42 A/2 = 1�21 m Rinnai CC B OIM...
-
Page 24: Standard Installation
Nail strap to rafter Replace the tiles and ensure the collector is secure, and the roof is weather tight� Please ensure the collector rails are positioned in the correct orientation against the collector� WARNING Rinnai CC B OIM... - Page 25 Alternatively the rail can be attached to the roof using the collector mounting straps� Please ensure the collector rails are positioned in the correct orientation against the collector� WARNING Rinnai CC B OIM...
- Page 26 Ensure that the bolt is tightened sufficiently to flatten the spring washer� This ensures that the bolt is adequately tightened� Rail Washer Bolt Spring Washer Once the rail is attached and suitably tightened, continue the cylinder installation as shown on the next page� Rinnai CC B OIM...
- Page 27 ON A LOAD BEARING SURFACE ON A LOAD BEARING SURFACE The spacing between the cylinder and the collectors can vary� The copper pipe provided in the kit may need to be shortened to allow for this� NOTE Rinnai CC B OIM...
-
Page 28: Roof Pitch Greater Than 30
Securely fasten main section of tank as plastic endcaps are not straps to roof plastic endcaps are not loadbearing using a suitable loadbearing fastener Securely fasten strap using a suitable fastener Rinnai CC B OIM... -
Page 29: Framed Installations - Cyclone Frame
For use on a flat roof or where the roof pitch is too low. This frame allows the system to be installed at a suitable inclination� Installations instructions are provided in the Rinnai Frame Installation Manual� A Glass Lined 330 litre tank with 3 collectors... - Page 30 The spacing between the cylinder and the collectors can vary� The copper pipe provided in the kit may need to be shortened to allow for this� NOTE Rinnai CC B OIM...
-
Page 31: Connecting Fittings To Collector
B screwing onto the Join the barrel union components together� threaded end of the header� Tighten with two spanners in the places indicated Tighten with two spanners in the places indicated in the diagram above� in the diagram above� Rinnai CC B OIM... -
Page 32: 180 Litre Ss Cylinder With 1 Sp200B Or Sp200Bex Collector - Biks180Cct01C
INSTALLATION - ALL SYSTEMS 180 LITRE SS CYLINDER WITH 1 SP200B OR SP200BEX COLLECTOR - BIKS180CCT01C Rinnai CC B OIM... - Page 33 INSTALLATION - ALL SYSTEMS 180 LITRE SS CYLINDER WITH 1 SP200B OR SP200BEX COLLECTOR - BIKS180CCT01C Rinnai CC B OIM...
-
Page 34: 180 Litre Ss Cylinder With 2 Sp200B Or Sp200Bex Collectors - Biksunicct23C
INSTALLATION - ALL SYSTEMS 180 LITRE SS CYLINDER WITH 2 SP200B OR SP200BEX COLLECTORS - BIKSUNICCT23C Rinnai CC B OIM... - Page 35 INSTALLATION - ALL SYSTEMS 180 LITRE SS CYLINDER WITH 2 SP200B OR SP200BEX COLLECTORS - BIKSUNICCT23C Rinnai CC B OIM...
-
Page 36: 330 Litre Ss Cylinder With 2 Sp200B Or Sp200Bex Collectors - Biks330Cct02C
INSTALLATION - ALL SYSTEMS 330 LITRE SS CYLINDER WITH 2 SP200B OR SP200BEX COLLECTORS - BIKS330CCT02C Rinnai CC B OIM... - Page 37 INSTALLATION - ALL SYSTEMS 330 LITRE SS CYLINDER WITH 2 SP200B OR SP200BEX COLLECTORS - BIKS330CCT02C Rinnai CC B OIM...
-
Page 38: 330 Litre Ss Cylinder With 3 Sp200B Or Sp200Bex Collectors - Biksunicct23C
INSTALLATION - ALL SYSTEMS 330 LITRE SS CYLINDER WITH 3 SP200B OR SP200BEX COLLECTORS - BIKSUNICCT23C Rinnai CC B OIM... - Page 39 INSTALLATION - ALL SYSTEMS 330 LITRE SS CYLINDER WITH 3 SP200B OR SP200BEX COLLECTORS - BIKSUNICCT23C Rinnai CC B OIM...
-
Page 40: 200 Litre Glass Lined Cylinder With 1 Sp200B Or Sp200Bex Collector - Bikv200Cct01C
INSTALLATION - ALL SYSTEMS 200 LITRE GLASS LINED CYLINDER WITH 1 SP200B OR SP200BEX COLLECTOR - BIKV200CCT01C Rinnai CC B OIM... - Page 41 INSTALLATION - ALL SYSTEMS 200 LITRE GLASS LINED CYLINDER WITH 1 SP200B OR SP200BEX COLLECTOR - BIKV200CCT01C Rinnai CC B OIM...
-
Page 42: 200 Litre Glass Lined Cylinder With 2 Sp200B Or Sp200Bex Collectors - Bikv200Cct02C
INSTALLATION - ALL SYSTEMS 200 LITRE GLASS LINED CYLINDER WITH 2 SP200B OR SP200BEX COLLECTORS - BIKV200CCT02C Rinnai CC B OIM... - Page 43 INSTALLATION - ALL SYSTEMS 200 LITRE GLASS LINED CYLINDER WITH 2 SP200B OR SP200BEX COLLECTORS - BIKV200CCT02C Rinnai CC B OIM...
-
Page 44: 330 Litre Glass Lined Cylinder With 2 Sp200B Or Sp200Bex Collectors - Bikv330Cct02C
INSTALLATION - ALL SYSTEMS 330 LITRE GLASS LINED CYLINDER WITH 2 SP200B OR SP200BEX COLLECTORS - BIKV330CCT02C Rinnai CC B OIM... - Page 45 INSTALLATION - ALL SYSTEMS 330 LITRE GLASS LINED CYLINDER WITH 2 SP200B OR SP200BEX COLLECTORS - BIKV330CCT02C Rinnai CC B OIM...
-
Page 46: 330 Litre Glass Lined Cylinder With 3 Sp200B Or Sp200Bex Collectors - Bikv330Cct03C
INSTALLATION - ALL SYSTEMS 330 LITRE GLASS LINED CYLINDER WITH 3 SP200B OR SP200BEX COLLECTORS - BIKV330CCT03C Rinnai CC B OIM... - Page 47 INSTALLATION - ALL SYSTEMS 330 LITRE GLASS LINED CYLINDER WITH 3 SP200B OR SP200BEX COLLECTORS - BIKV330CCT03C Rinnai CC B OIM...
-
Page 48: Installation - Gas Boosted Systems
SMARTSTART® The Smartstart® is a separate system that works in conjunction with the Rinnai solar hot water system. When activated by the manual activation switch, water in the pipework connected between the solar hot water system and the hot water outlets is warmed before any outlets are opened� This results in water savings and added convenience�... -
Page 49: System Using Rinnai Smartstart
INSTALLATION - GAS BOOSTED SYSTEMS SYSTEM USING RINNAI SMARTSTART Rinnai CC B OIM... -
Page 50: Gas Booster Clearances
For appliance s not addressed above acceptance should be obtained from the Technical Regulator. Minimum clearances d and e also apply to any combustion air intake openings of appliances. FIGURE 6.2 (in-part) LOCATION OF FLUE TERMINALS OF BALANCED FLUE, ROOM SEALED, FAN-ASSISTED OR OUTDOOR APPLIANCES Rinnai CC B OIM... -
Page 51: Installation Procedure
Connect the hot water outlet of the gas booster to the pipe work supplying hot water to the premises� A temperature limiting device may be required as detailed in the section ‘Hot Water Delivery Temperature’ on page 19� WARNING Rinnai CC B OIM... -
Page 52: Filling The System
Instructions for gas pressure setting are located in the pocket behind the front cover of the gas booster� Rinnai CC B OIM... -
Page 53: Solar Heating
5� Remove the brass plug on the bottom right hand side of the collector bank� 6� Disconnect the ‘water inlet’ and ‘water outlet’ connections at the gas booster� 7� The system will now drain all water� Rinnai CC B OIM... -
Page 54: Installation - Electric Boosted Systems
Connect the hot water outlet of the gas booster to the pipe work supplying hot water to the premises� A temperature limiting device may be required as detailed in the section ‘Hot Water Delivery Temperature’ on page 19� WARNING Rinnai CC B OIM... -
Page 55: Filling The System
(overnight), extended off-peak (overnight and day), continuous or other tariffs available from the local electricity supply authority� Rinnai strongly recommends the use of an off-peak tariff to ensure that solar heating takes priority over electrical heating� If this tariff isn’t available, then a timer can be used to limit electrical heating... -
Page 56: Pre Solar Heating Checks
5� Remove the brass plug on the bottom right hand side of the collector bank� 6� Disconnect the ‘water inlet’ and ‘water outlet’ connections at the gas booster� 7� The system will now drain all water� Rinnai CC B OIM... -
Page 57: Installation Record
Installation Date: _______________________________________________________________________ System Details Storage Cylinder Model Number : __________________________________________________________ Serial Number: __________________________________________________________ Solar Collector(s) Model Number : __________________________________________________________ Serial Number: __________________________________________________________ Gas Booster Model Number : __________________________________________________________ Serial Number: __________________________________________________________ Installation Address: ________________________________________________________________________ _______________________________________________________________________ ________________________________________________________________________ Rinnai CC B OIM... -
Page 58: Notes
NOTES _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ Rinnai CC B OIM... - Page 59 NOTES _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ ________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ Rinnai CC B OIM...
- Page 60 P.O. Box 460 Braeside, Victoria 3195 Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your Rinnai appliance. If your appliance requires service, please call our National Help Line. Rinnai recommends that this appliance be serviced every 3 years.
