Uplift Desk FRM055B Manual

C9
Advanced Paddle Keypad
SKU: FRM055B

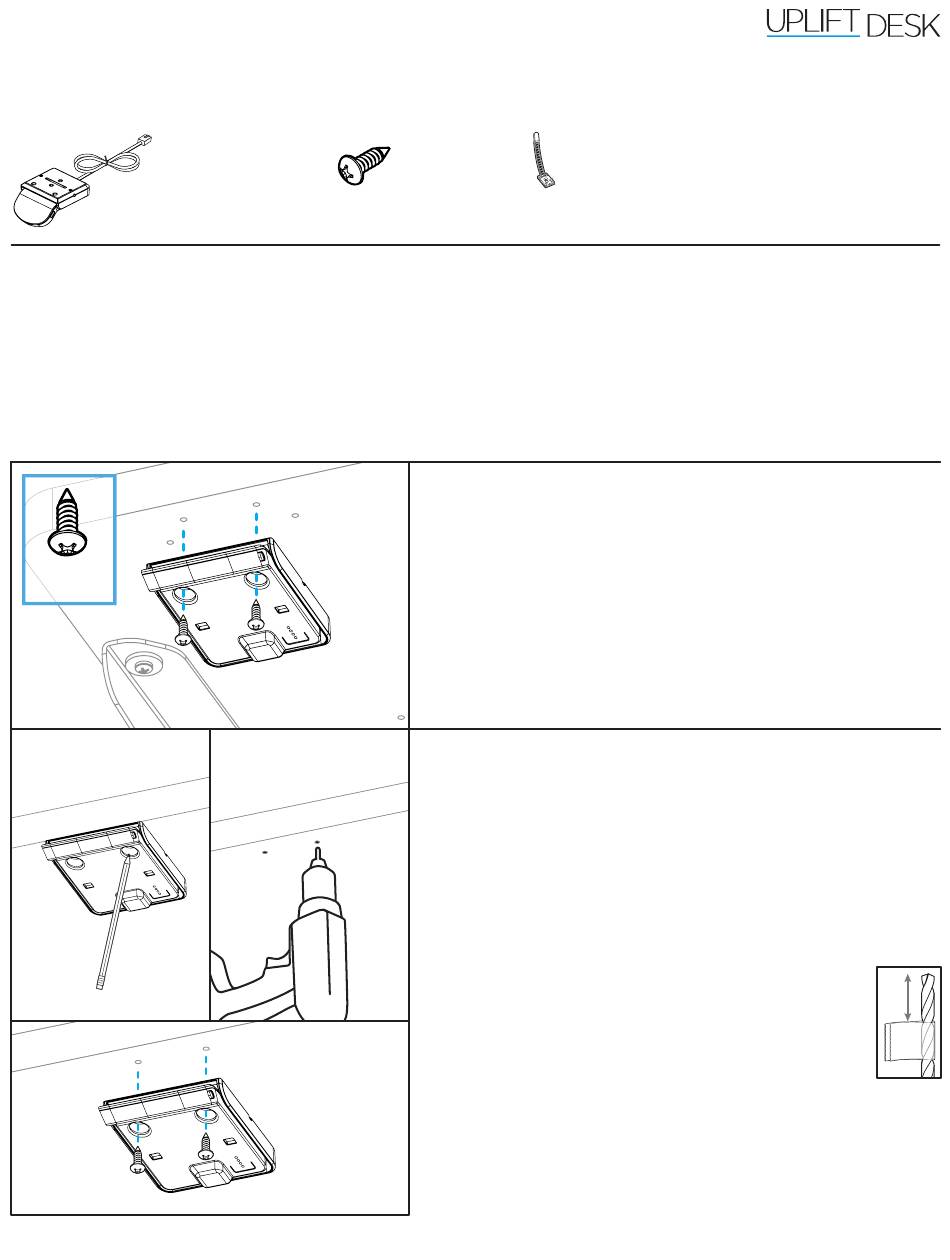

Package Contents
Advanced Paddle
Keypad
Step 1: Determine your mounting method. There are two ways to attach the keypad to
your desktop:
Install Using Pre-drilled Holes
If you would like to attach the keypad to your UPLIFT
Desk using the pre-drilled holes on the front, left or
right side, follow the "Installation Using Pre-drilled
Holes" instructions (Step
#10x3/4''
Wood Screw
H1
H4a
#10x3/4'' Wood Screw
(qty 2)
2).
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
H2 H3
H4b
Cable Mount
(qty 3)
Install Without Using Pre-drilled Holes
If you do not have an UPLIFT Desktop with pre-drilled holes or
choose to place the keypad in a different location, follow the
"Installation Without Using Pre-drilled Holes" instructions
Step 2 (Installation Using Pre-drilled Holes)
A. Line up the 2 keypad mounting holes with the 2 pre-drilled
holes that are closer together and closer to the front edge of the
desktop.
B. Insert the #10x3/4" Wood Screws through the mounting holes
and into the desktop.
C. Tighten the screws with a Phillips head screwdriver. Do not
overtighten to avoid stripping.
D. Skip to Step 4.
Step 3 (Installation Without Using
Pre-drilled Holes)
A. If you do not have an UPLIFT Desktop with pre-drilled holes or
choose to place the keypad in a different location, hold the
keypad where you would like to attach it.
B. Make a pencil mark on the desktop in the center of each
mounting hole.
C. Next drill a pilot hole at each pencil mark using a 1/8" (or 3mm)
diameter bit.
Note: DRILL NO DEEPER THAN 1/2".
recommend wrapping a piece of tape around your drill
bit 1/2" from the tip. Stop drilling just before the tape
touches the desktop.
D. Line up the 2 keypad mounting holes with the 2 holes
you just made.
E. Insert the #10x3/4" Wood Screws through the mounting holes
and into the desktop.
F. Tighten the screws with a Phillips head screwdriver. Do not
overtighten to avoid stripping.
H5
(Step 3).
To ensure this, we
1/2''
