Uplift Desk FRM072 Instructions

Basic Display Keypad
FRM072

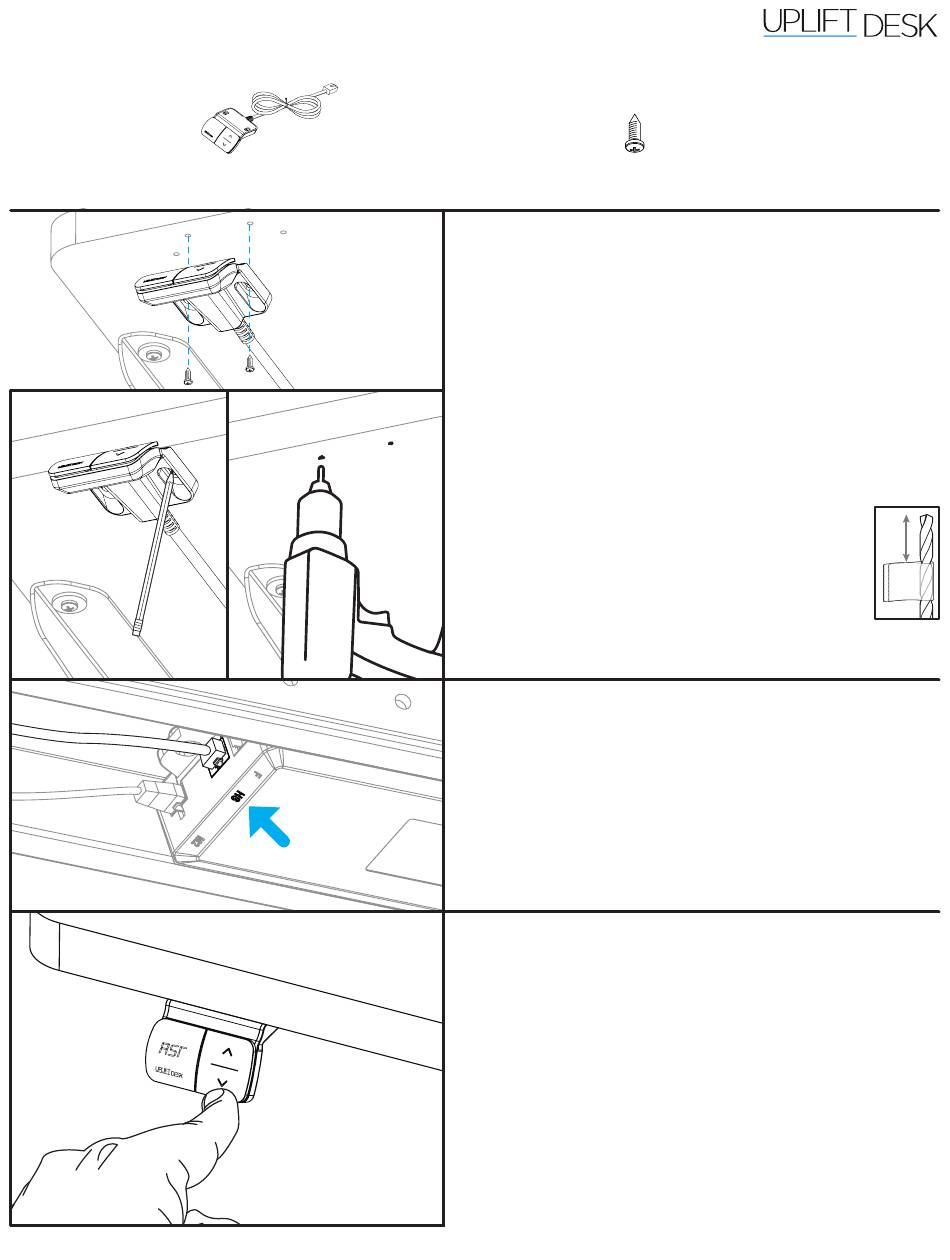

Package Contents

© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
Basic Display
Keypad
#10x5/8" Wood Screws
(qty 2)

Step 1 - Attach the Keypad to Desktop

Most UPLIFT desktops include pre-drilled holes for attaching
a Keypad at the front edge on either side. Choose which side
of the Desktop you would like your Keypad to be on and at-
tach it using the #10x5/8" Wood Screws.
If you do not have an UPLIFT Desktop or choose to place the
Keypad in a different location, hold the Keypad where you
would like to install it and attach it to your desktop using the
two #10x5/8'' Wood Screws through the two mounting holes.
If you own a drill, you can make this a little easi-
er by drilling pilot holes. Hold the keypad where
you would like to attach it and make a pencil mark
on the desktop in the center of each mounting
hole. Next drill a pilot hole at each pencil mark
using a 1/8" (or 3mm) diameter bit. Note: DRILL
NO DEEPER THAN 1/2". To ensure this, we recom-
mend wrapping a piece of tape around your drill
bit 1/2" from the tip. Stop drilling just before the
tape touches the desktop. Then attach the Keypad
to the desktop using the #10x5/8" Wood Screws.

Step 2 - Install the Cable

Plug the end of the Keypad's cable into the port marked "HS"
on your UPLIFT Desk control box.
You can use some of the Cable mounts included with your UP-
LIFT Desk frame to organize your Keypad cable and prevent it
from snagging on anything when adjusting the desk's height.
The Cable mounts work best when stuck directly to one of the
frame's metal components.

Step 3 - Reset Procedure

If you are installing the Basic Display Keypad on a newly as-
sembled desk, you must first perform the following Reset Pro-
cedure:
• Press and hold the down button until the desk stops at its
lowest position, then release.
• Press and hold the down button again until the display
reads "ASr", then release.
• Press and hold the down button one more time until the
desk lowers slightly, rises and stops, then release the but-
ton.
• Once the numeric height is displayed, the reset is com-
plete and the desk is ready for use.
1/2''
