1

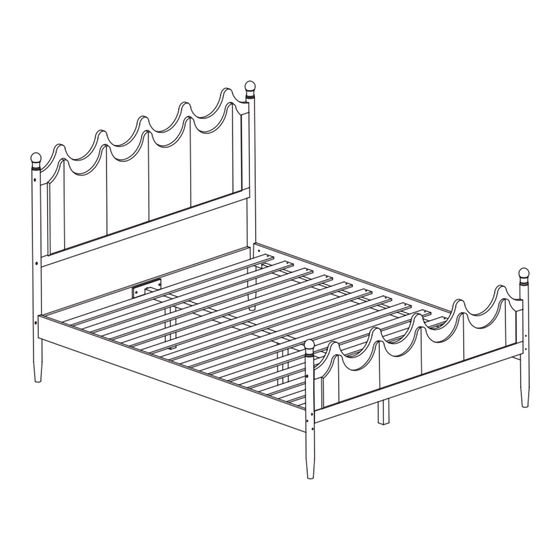

Assembled View
2
Parts List
Parts in Box A:
C
Parts in Box B:
H
Side Rail x 2
J
Long Support x 1
0209 Queen Bed
Assembly Instructions
A
Headboard x 1
Footboard x 1
B
Headboard Panel x 1
D
Headboard
Post (Left)
x 1
F
Footboard
Post ( Left)
x 1
K
Support Leg
x 3
WI-0123
Use 2 People
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
E
Headboard
Post (Right)
x 1
G
Footboard
Post (Right)
x 1
L
Set of Bed Slats
x 1
Page 1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Baxton Studio Calgary 0209
Summary of Contents for Baxton Studio Calgary 0209
- Page 1 0209 Queen Bed Assembly Instructions WI-0123 Assembled View Use 2 People Note: Do not assemble using power tools. This can cause the bolts to be overtightened Parts List Parts in Box A: Headboard Post (Right) Headboard Post (Left) Headboard x 1 Footboard Post (Right) Footboard...
- Page 2 0209 Queen Bed Assembly Instructions WI-0123 Hardware List Wood Screw Wood Dowel M4 Allen Key Center Rail Adjustable (M4 x 32mm) x 18 (10 x 40mm) x 14 Bracket x 2 Foot x 3 M6 x 15mm Barrel Nut M6 x 40mm M6 x 90mm JCB JCB x 4 x 21...
- Page 3 0209 Queen Bed Assembly Instructions WI-0123 Assembled the Headboard Post (D & E) to the Headboard (A) and Headboard Panel (C). Fit the Center Rail Bracket (2) to the Footboard (B). Assembled the Footboard Post (F & G) to the Footboard (B).
- Page 4 0209 Queen Bed Assembly Instructions Assemble the Side Rail (H) WI-0123 to the Headboard Post (D & E) & Footboard Post (F & G). Bolt the Long Support (J) to the Center Rail Brackets (2) on the Headboard Panel (C) & Footboard (B).
- Page 5 0209 Queen Bed Assembly Instructions WI-0123 Bolt & screw the Bed Slats (L) to the Side Rail (H). Page 5 of 5...
