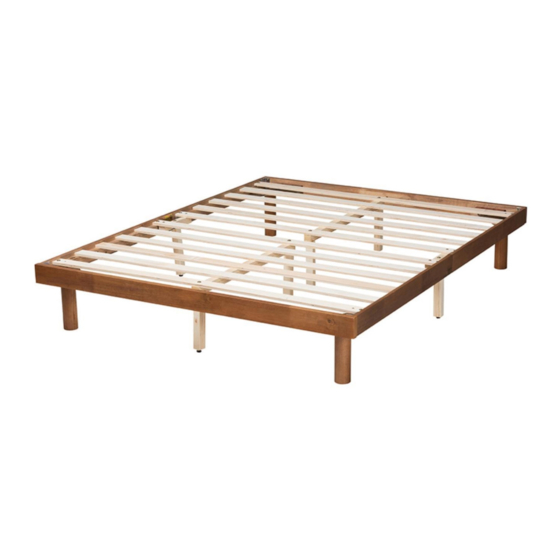

0082 S Queen Bed Assembly Instructions WI-0421 Assembled View Use 2 People Note: Do not assemble using power tools. This can cause the bolts to be overtightened Parts List Extra holes Extra holes on the outside on the outside Headboard Panel x 1...
0082 S Queen Bed Assembly Instructions WI-0421 Hardware List M4 Allen Key M5 Allen Key Adjustable Barrel Nut Metal Plate Foot x 6 M8 x Spring M6 Flat M8 Flat M6 JCN 50mm JCB Washer Washer Washer Nut x 4...
Page 3
0082 S Queen Bed Assembly Instructions WI-0421 Fit the Post (F) to the Support Panel (H). Fit the Metal Plate to the Side Rail (C & D). Assemble the Side Rail (C & D) to the Support Panel (H). x2 x2...
Page 4
0082 S Queen Bed Assembly Instructions WI-0421 Assemble the Side Rail (C & D) to the Headboard / Footboard Panel (A & B). Extra holes on the outside Extra holes on the outside Bolt the Support Panel (H) to the Headboard / Footboard Panel (A &...
Page 5
0082 S Queen Bed Assembly Instructions WI-0421 Fit the Slats (K) to the Long Support (E) & Support Leg (G). Bolt the Bed Slats (K) to the Side Rail (C & D). Page 5 of 6...
Page 6
0082 S Queen Bed Assembly Instructions WI-0421 Screw the Bed Slats (K) to the Side Rail (C & D). Lastly, fit the Support Bar (J) in place. Page 6 of 6...
