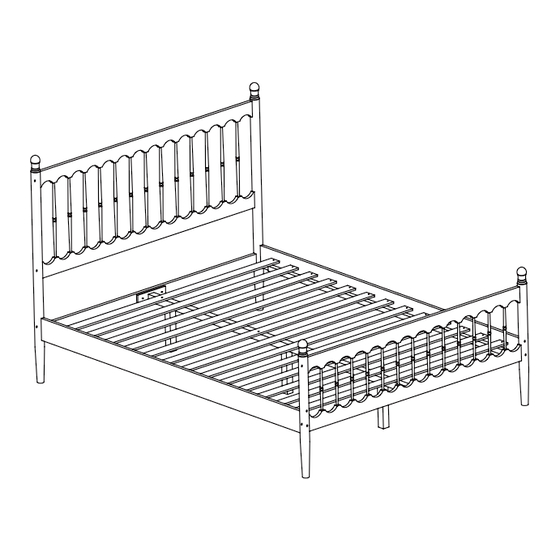

Assembled View
2
Parts List
Parts in Box A:
C
Headboard Support x 1
Parts in Box B:
G
Side Rail x 2
H
Long Support x 1
0206 Queen Bed
Assembly Instructions
A
Headboard Panel x 1
B
Footboard Panel x 1
Use 2 People
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
D
Headboard
Footboard
Post
x 2
F
Support Leg
x 3
J
Set of Bed Slats x 1
WI-0523
E
Post
x 2
Page 1 of 5
Advertisement
Related Manuals for Baxton Studio Deance 0206
Summary of Contents for Baxton Studio Deance 0206
- Page 1 0206 Queen Bed Assembly Instructions WI-0523 Assembled View Use 2 People Note: Do not assemble using power tools. This can cause the bolts to be overtightened Parts List Parts in Box A: Headboard Footboard Post Post Headboard Panel x 1 Footboard Panel x 1 Support Leg Headboard Support x 1...
- Page 2 0206 Queen Bed Assembly Instructions WI-0523 Hardware List Wood Screw Wood Dowel M4 Allen Key Center Rail Adjustable (M4 x 32mm) x 18 (10 x 40mm) x 6 Bracket x 2 Foot x 3 M6 x 15mm Barrel Nut M6 x 90mm JCB M6 x 40mm JCB x 4 x 21...
- Page 3 0206 Queen Bed Assembly Instructions WI-0523 Assembled the Headboard Post (D) to the Headboard Panel (A) and Headboard Support (C). Fit the Center Rail Bracket (2) to the Footboard Panel (B). Assembled the Footboard Post (E) to the Footboard Panel (B). Short Tab of Metal Bracket (2) Page 3 of 5...
- Page 4 0206 Queen Bed Assembly Instructions WI-0523 Assemble the Side Rail (F) to the Headboard Post (D) and Footboard Post (E). Bolt the Long Support (G) to the Center Rail Brackets (2) on the Headboard Support (C) & Footboard Panel (B). Page 4 of 5...
- Page 5 0206 Queen Bed Assembly Instructions WI-0523 Screw the Bed Slats (J) to the Side Rail (F) . Page 5 of 5...
