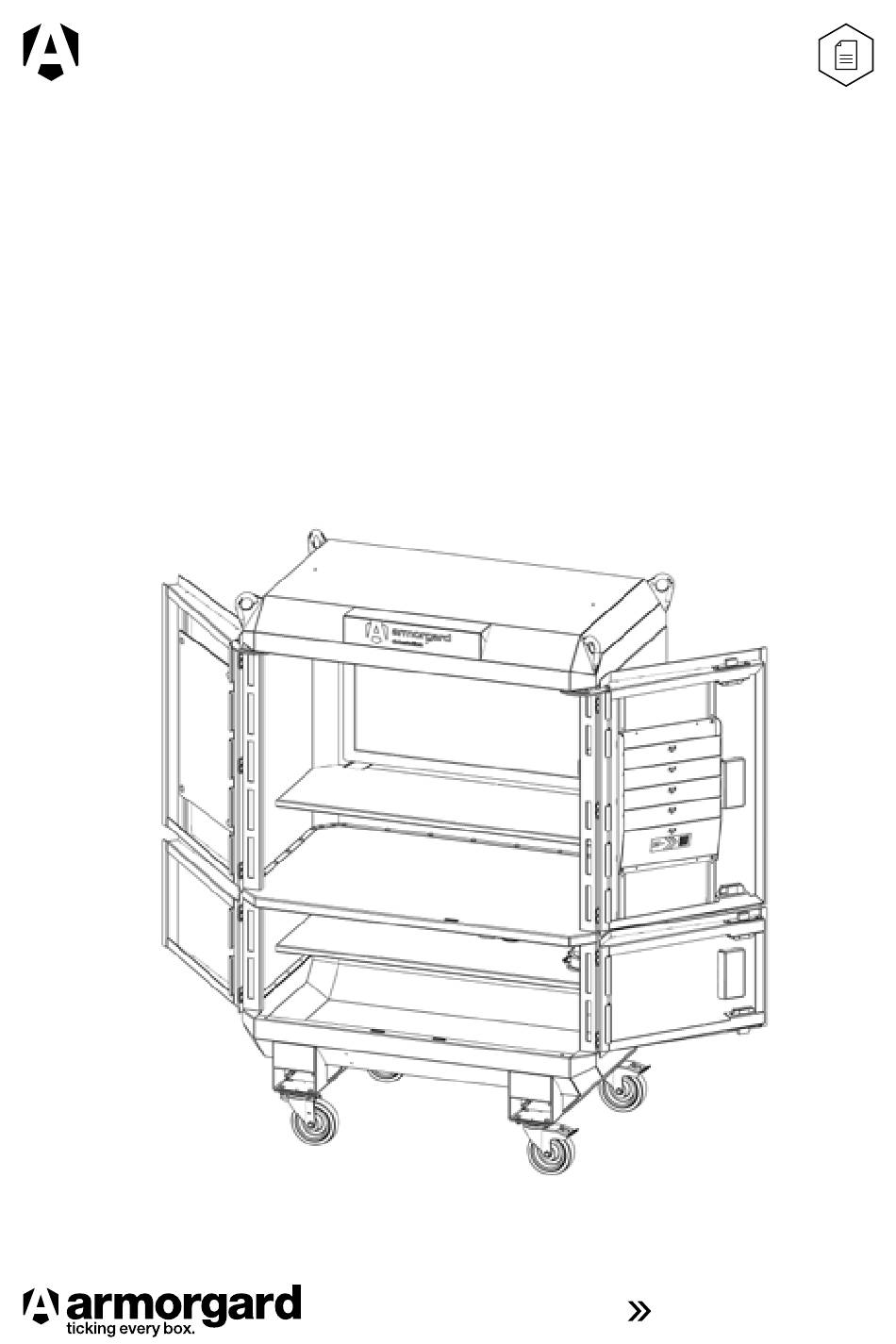

- Page 1 Operational and maintenance manual Suitable for: DS2-110, DS2-240, DS2EU, DS2AU 023 9238 0280 armorgard.co.uk...
- Page 2 Welcome Welcome to your Armorgard DataStation. A purpose- built solution for your on-site workstation needs. Please consult this manual for instructions on how to get the most from the unit. Please read this operational and maintenance manual carefully prior to setting up the DataStation.
-
Page 3: Table Of Contents
Contents Safety information Product specification What’s included Tools you’ll need Getting to know your DataStation Mounting the castors Mounting the handle Mounting the screen How to use Storing the unit Transporting the unit Equipment care Ongoing maintenance Electrical safety WEEE (Waste Electrical and Electronic Equipment) Warranty Locks, keys and spare parts PAT testing log... -
Page 4: Safety Information
Safety information Before using the DataStation, ensure any relevant risk assessments are carried out. Armorgard cannot be responsible for accidents that occur due to negligence. A 43 inch digital screen is included in the DataStation. Always take care to ensure this does not come in contact with liquids or any hazardous substances. -
Page 5: Product Specification
Don’t Lock screen in place when moving Lift the DataStation fully loaded Ensure unit is switched off when not in use Use DataStation if electrics are damaged Fit the screen correctly Hang external heavy objects from the side Fully lock unit when not in use Leave trailing cables from the DataStation Product specification Product... -
Page 6: What's Included
What’s included... 1x DataStation 1x 43 inch digital screen 4x keys unit 1x LED light 1x document holder 1x whiteboard 1x heavy-duty castor kit 1x HDMI cable 1x IEC lead... -
Page 7: Tools You'll Need
Tools you’ll need... Flat-head Ratchet screwdriver 13mm socket (to fit castors) 17mm socket (to fit handle) -
Page 8: Getting To Know Your Datastation
Getting to know your DataStation The purpose-built, compact, on-site digital station LED light fitted as standard Document Digital organiser screen Cable pass- through point Whiteboard Electric sockets for powering chargers and printers Power supply 5-lever Castors Forklift skids Crane lifting 110V or 240V deadlock eyes... - Page 9 Watch the DataStation familiarisation video Data plate featuring each unique product Crane lifting eyes serial number Handle for easy manoeuvring Inset handles Keyed-alike 5-lever Appliance deadlocks (top and inlet power bottom sections lock supply independently) Heavy-duty castors Forklift skids Suitable for Product with 1.5mm material Light supply...
-
Page 10: Mounting The Castors
Mounting the castors To fit the castors, firstly, lift the Insert castor plates into the fork- unit on to a stable platform. The lift skids. Put the castor wheel in unit MUST be upright when fitting place and use a 13mm socket to the castors and not tipped over. -
Page 11: Mounting The Handle
Mounting the handle Use the fixtures provided to fit the It is imperative for the handle to be handle on to the square cut-outs. fixed on to the DataStation correctly Use a 17mm socket to tighten the for safe manoeuvrability. There are M10 nylocks with the coach bolts and square cut-outs for this on the right washers. -
Page 12: Mounting The Screen
Mounting the screen Firstly, fit the two brackets to the To mount the screen, firstly remove back of the screen with the M6 the packaging. We recommend fixtures. Use a 10mm socket to keeping the screen’s box safe, tighten the M6 nylocks. should you require unmounting. - Page 13 Video: how to mount the screen Use both cable passing points located Once the screen is fixed, the pivot towards the inner right hand corners of screws should be tightened at a the flat surfaces to connect power to suitable angle for use. The screen can the digital screen and your computer.
-
Page 14: How To Use
How to use Fully open the doors to lock them open It is important to check that the with the door stays. product is not damaged upon arrival and all parts are intact. Ensure the screen is not damaged before using it. The rear of the DataStation has an Inside the lower compartment are IEC appliance inlet socket that is used to... - Page 15 When using electricity, ensure the There are two cable pass-through safety guidelines are followed at all holes in the unit. They should always times and ensure the unit is PAT tested be used to ensure cables are kept frequently. tucked away. Lights can be turned on using the switch on the right hand side of the upper compartment.
-
Page 16: Storing The Unit
Storing the unit Ensure that all DataStation locks are When leaving unattended, ensure secured after use, or when leaving that the DataStation is switched off the unit unattended. This is essential and kept indoors, away from water. to maintain the security of the unit. Ensure that there are no tangled or trailing cables and all extension leads are unplugged. -
Page 17: Transporting The Unit
Transporting the unit The design of the DataStation makes transporting the product easy. Before attempting to move the DataStation, ensure the unit is unplugged, all power is switched off and the digital screen is locked in place. The unit comes as standard with heavy-duty castors for easy manoeuvring even when fully loaded, and forklift pockets for transporting using a forklift. -
Page 18: Equipment Care
Equipment care The DataStation is finished with a durable powder coating, however we do not recommend this product to be used outdoors in wet conditions, as it is not waterproof. Always ensure that the product data plate remains visible and in good condition, especially the unique serial number, as this is required should you need a replacement lock or key. -
Page 19: Electrical Safety
Before use, ensure that all sockets are undamaged and free from water, dirt, oil and any other foreign objects. Take necessary precautions to prevent cables from becoming a hazard. Armorgard can not be held responsible for misuse of cables or equipment. WEEE (Waste Electrical and Electronic Equipment) -
Page 20: Warranty
Warranty Armorgard products are built to last, and all have a manufacturer’s warranty of 12 months - please refer to the terms and conditions for what this covers. We also keep replacement keys and offer replacement locks for all Armorgard products up to five years old. -
Page 21: Pat Testing Log
PAT testing log Product Date of PAT test Date of re-test Notes... -
Page 22: Notes
Notes... - Page 23 Notes...
- Page 24 Find us on social media: UK Head Office Unit 14-16, Standard Way, Fareham Industrial Park, Fareham, Hampshire, PO16 8XB +44 (0) 23 9238 0280 | sales@armorgard.co.uk | www.armorgard.co.uk France Office Australia Office + 33 (0) 4 81 16 06 69 +61 (0) 1300 131 751 commercial@armorgard.fr...
